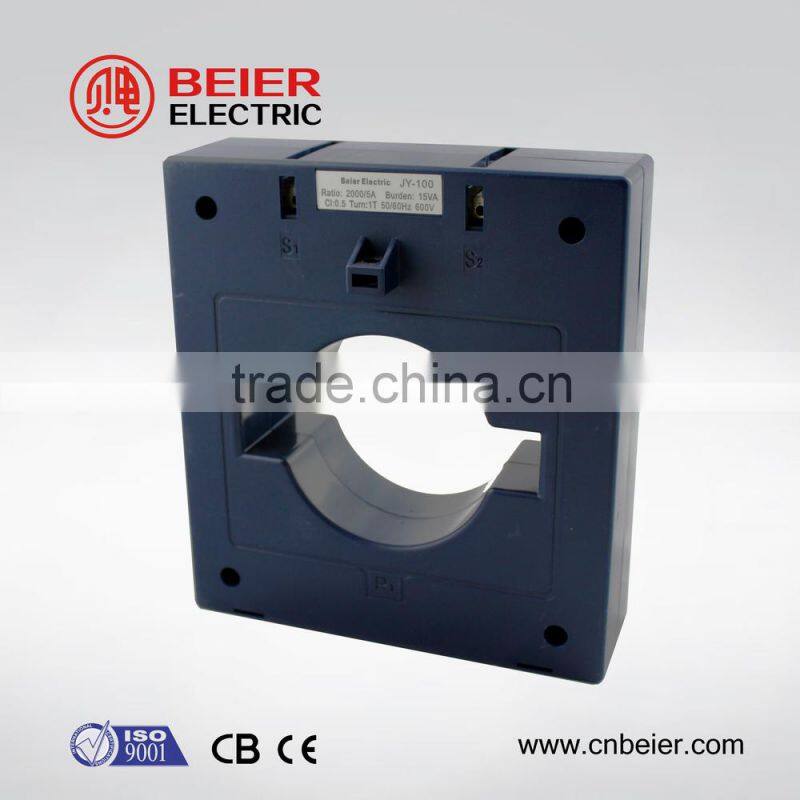

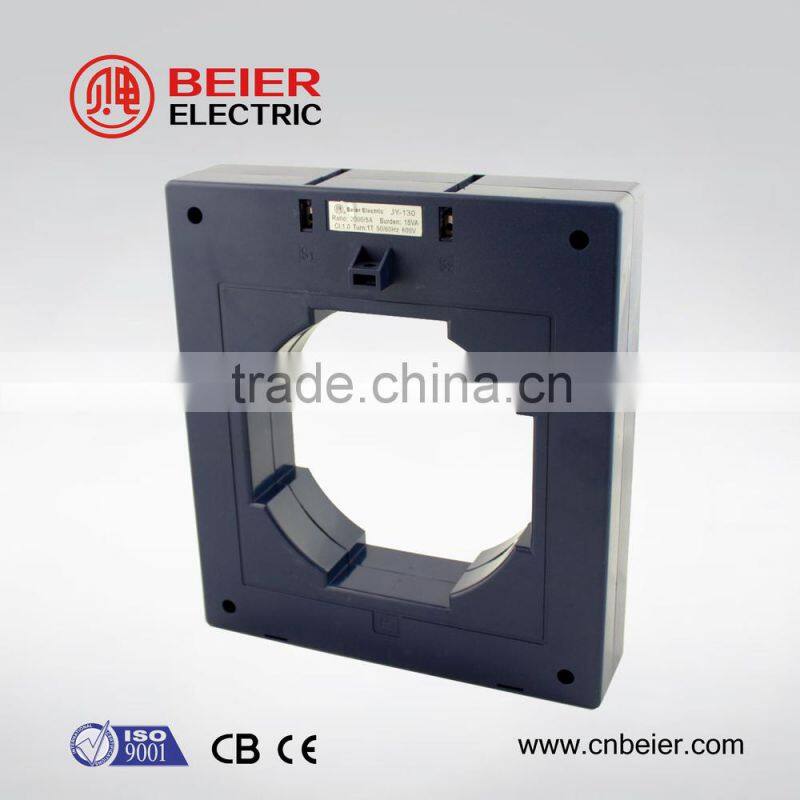

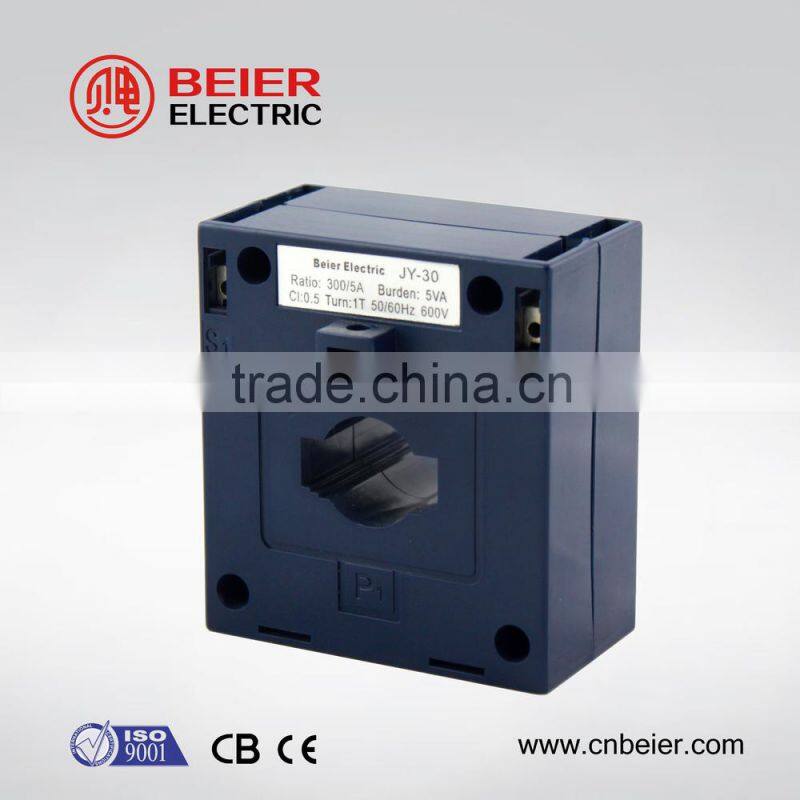

JY60 Current Transformer
current transformer JY 60 series model Specifications:
1. Santdard: IEC44-1, BS3938, DIN42600, GB1208-2006;
2. Primary current: 1~5000A;
3. Secondary current: 1A or 5A;
4. Accuracy class: 0.5, 1.0;
5. Cases are made of ABS, meet UL-94V0;
6. Short -time thermal current: Ith=60x1h;
7. Security factor: FS less than 5;
current transformer JY 60 series model Technical Data:
| Model | Rated current ratio | Busbar hole dimension | Rated burden(KV) | Accuracy class |
| JY-30 | 30/5A-300/5A | 30X10mm | 1.5-5 | 0.5-3.0 |
| JY-40 | 150/5A-800/5A | 40X10mm | 5-10 | 0.5-1.0 |
| JY-60 | 400/5A-1200/5A | 60X20mm | 10 | 0.5-1.0 |
| JY-100 | 800/5A-3000/5A | 100X20mm | 15 | 0.5-1.0 |
current transformer JY 60 series Model:
JY-30, JY-40, JY-60, JY-100, JY-125
