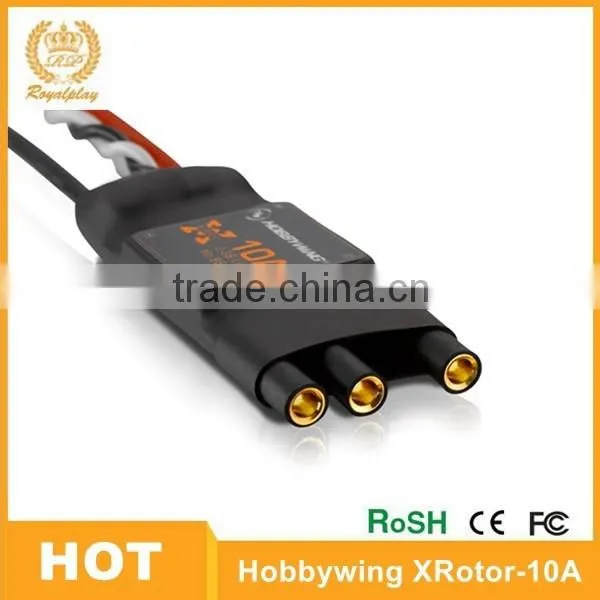

HOT Hobbywing XRotor-10A RC Brushless ESC for Drones

Name: HOT Hobbywing XRotor-10A RC Brushless ESC for Drones
Brand: Hobbywing
SKU: 126753083

US$ 5.69 - 7.59 MOQ: 10 Pieces

Key Specifications

Type:

Other, Multi-Rotor

Power:

Battery

Scale:

1:10

Shenzhen Royalplay Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Multi-Rotor

Power Battery

Scale 1:10

Radio Control Style RC Hobby

Place of Origin Guangdong, China

Brand Name Hobbywing

Model Number XRotor-10A

Product Description

HOT Hobbywing XRotor-10A RC Brushless ESC for Drones

Features

Special core program for multi-rotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
All settings except the timing are preset, making usage simple, highly intelligent and adaptive.
The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
MOSFET with extra-low resistance brings high performance and great current endurance.

Specifications

Specifications

Item Name	Hobbywing XRotor-10A
Continuous Current	10A
Peak Current (10s)	15A
BEC	No
Lipo	2~3S
Programming	Timing (High/ Intermediate)
Weight	6.5g
Size	36.5x16.4x4.1mm
Plug	Φ3.5mmx3
Typical Applications (For reference)	250 Class Quadcopter
Note	The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.

Compatibility Test

Compatibility Test Result of Motors and XRotor ESC
Motor Brand	Motor Model	KV	Test Conditions		Compatibility Test Result
Motor Brand	Motor Model	KV	Propeller	Voltage	Compatibility Test Result
HLY (HengLiYuan)	4822	690	1238/ 1340	4S Lipo	Passed
	4822	390	1238/ 1240	6S Lipo	Passed
	4225	610	1238	4S Lipo	Passed
	4225	390	1238/1447	6S Lipo	Passed
SunnySky	V3508	580	APC1238	4S Lipo	Passed
	X4112S	400	1447/ 1550	4~6S Lipo	Passed
	X4112S	485	1447/ 1550	4~6S Lipo	Passed
	X4108S	380	1447/ 1550	4~6S Lipo	Passed
		480	1447/ 1550	4~6S Lipo	Passed
		600	1447/ 1550	4S Lipo	Passed
	X2212	980	1047	3S Lipo	Passed
	X2216	900	1047	3S Lipo	Passed
	X4110S	400	1238/ 1550	4~6S Lipo	Passed
Crazy Motor	5008	335	1555/ 1655	6S Lipo	Passed
Feiyue	5008	340	17~18 inch	6S Lipo	Passed
DualSky	XM5015	390	1550	6S Lipo	Passed
	XM5010	700	1450	3S Lipo	Passed
	4010	880	1150	3S Lipo	Passed
T-Motor	3506	650	1238/1340	3S Lipo	Passed
	3510	430	1340/1550	6S Lipo	Passed
	4014	330	1550	6S Lipo	Passed
	3508	380	1340/ 1550	6S Lipo	Passed
