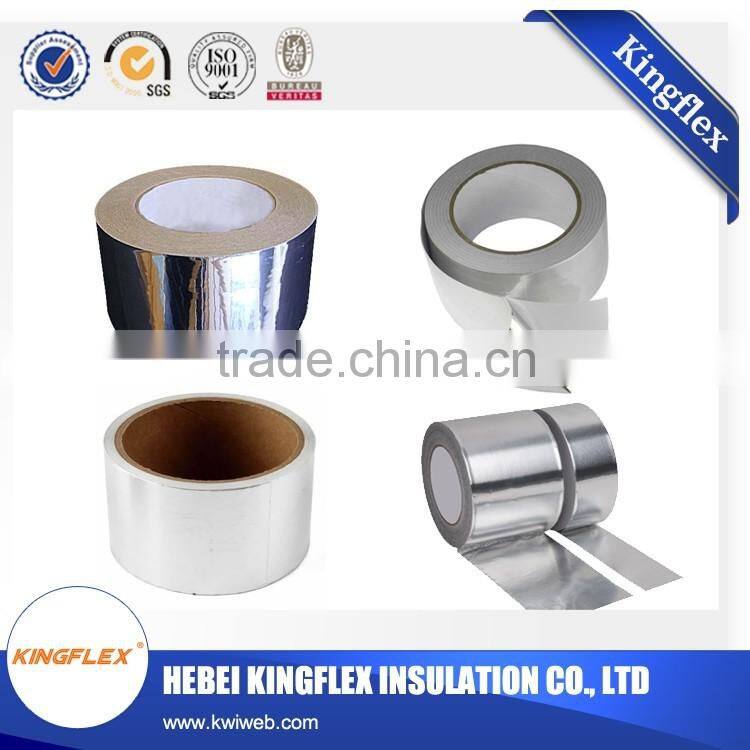

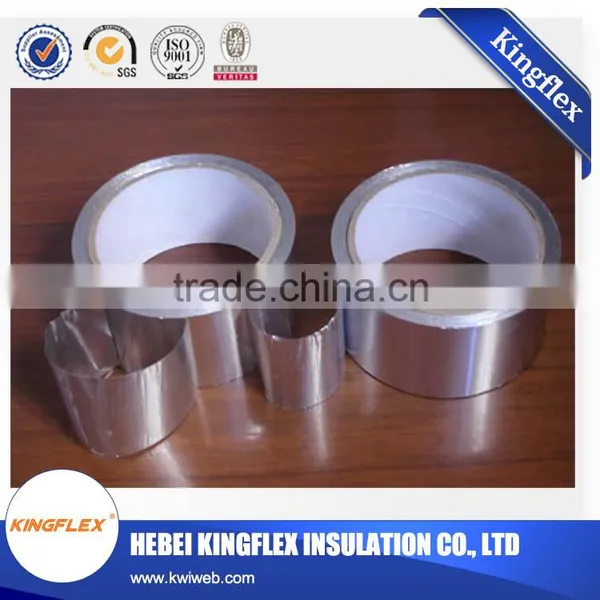

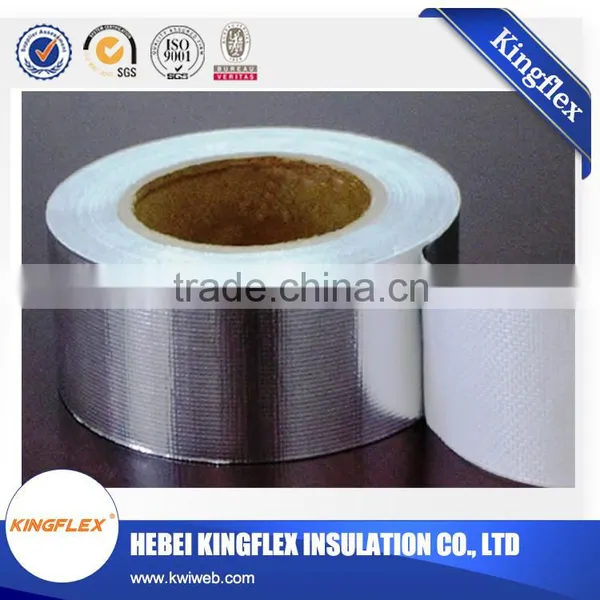

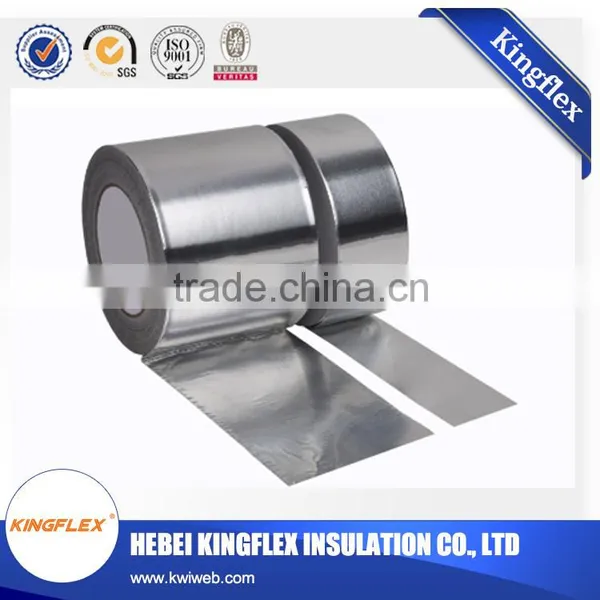

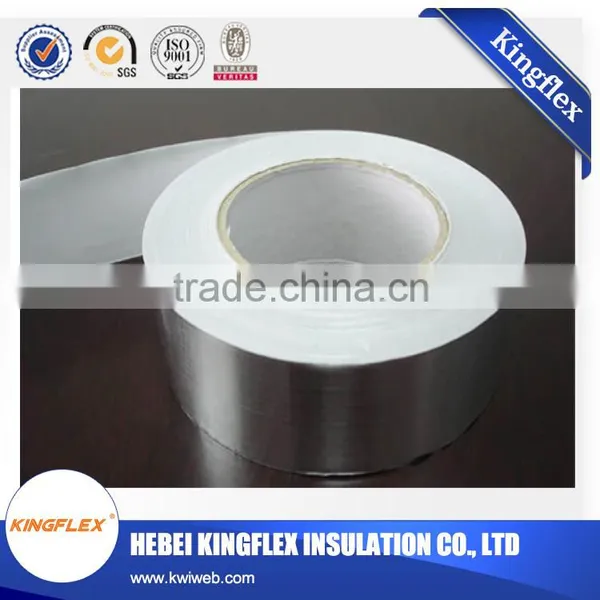

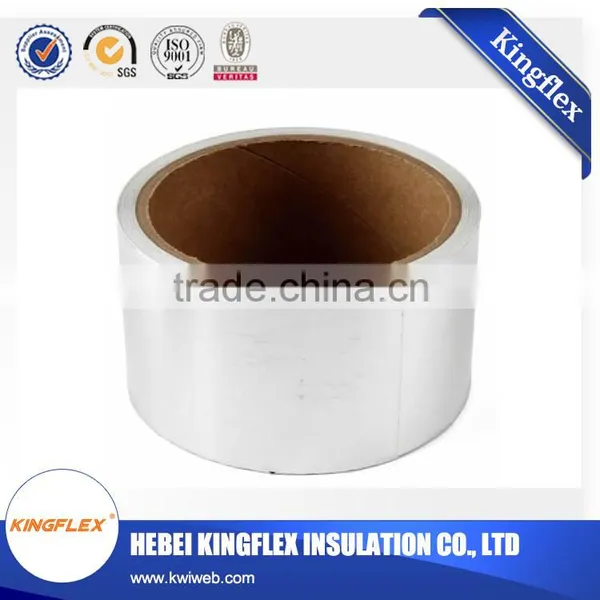

A 40 micron (1.6 mil) dead soft aluminum foil backing, combined with a high performance synthetic rubber-resin adhesive, protected by an easy-release silicone release paper.
FEATURES
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim-Kraft Facing joints and seams sealing in HVAC duct work application.
• Low moisture vapor transmission rate makes Kingflex aluminum foil tape an excellent vapor barrier.
• Service Temperature range from -20° to +80°C (-4° to +176°F).
Physical Properties of aluminum foil insulation tape :
PROPERTIES | METRIC | ENGLISH | TEST METHOD |
Backing Thickness | 40 Micron | 1.6 Mil | PSTC-133 / ASTM D 3652 |
Total Thickness | 80 Micron | 3.2 Mil | PSTC-133 / ASTM D 3652 |
Adhesion to Steel | 20 N/25mm | 72 Oz./In. | PSTC-101 / ASTM D 3330 |
Tack Rolling Ball | 20 cm | 8.0 In. | PSTC-6 / ASTM D 3121 |
Tensile Strength | 55 N/25mm | 12.5 Lb/In | PSTC-131 / ASTM D 3759 |
Elongation | %. | 3.0 | PSTC-131 / ASTM D 3759 |
Service Temperature | -20~+80 °C | -4 ~ +176°F | ------------ |
Applying Temperature | +10 ~ 40°C | +50 ~ +105°F | ------------ |

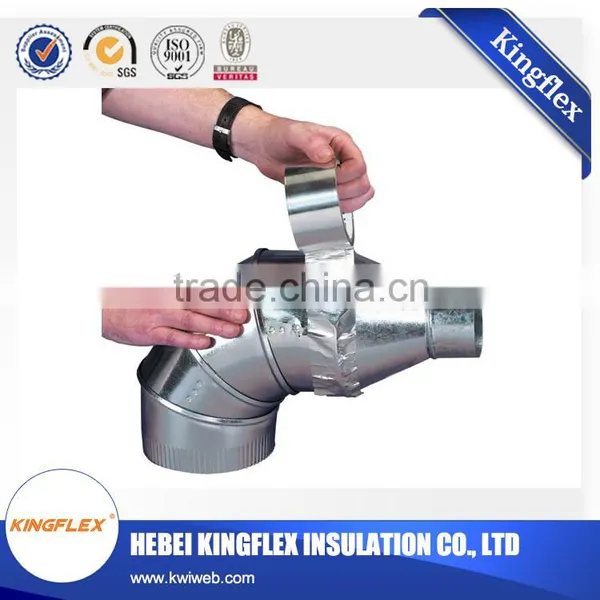

HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 1200m
One year when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
It is essential that the user evaluate the product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on product between +10 ~ +40°C (+50 ~ +105°F).
Why Kingflex duct insulation tape ?
- We are engaged in insulation materials since the year 1979
- Our company is operated under the guidance of ISO system
- Latest technology and most advanced forming process
Dear Friends,
Welcome to visit our website and hope we two parties can have a long lasting business relationship.
Kingflex have professional technicians and sound QC system to supply qualified goods to match your requirements.
Kingflex have a professional and dedicated sales team, attentive service and timely reply will be supplied if needed.
Any enquiries, please feel free to contact us at any time.
- 24 hours prompt reply by email or telephone or messenger.
- Standard size have stock, immediately delivery once your purchase
- At most two weeks delivery for ordered goods out of stock
- Accessories such as adhesive tape, aluminum foil tape can be also supplied to match the installation
- For trial order, special price will be supplied.
- For orders equal or above 5*40HQ, special discount will be supplied.
