DINP PVC Strip Air Curtain Insulation for Cold Room Door

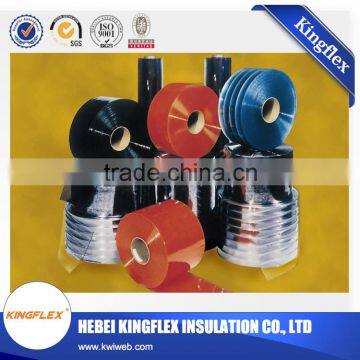

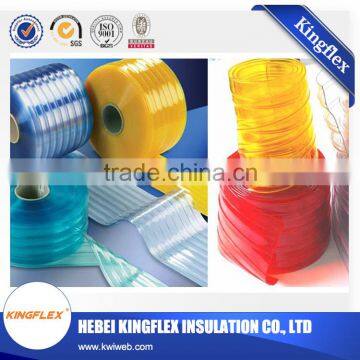

DINP PVC Strip Air Curtain Insulation for Cold Room Door photo-1
DINP PVC Strip Air Curtain Insulation for Cold Room Door photo-2
DINP PVC Strip Air Curtain Insulation for Cold Room Door photo-3
DINP PVC Strip Air Curtain Insulation for Cold Room Door photo-4
DINP PVC Strip Air Curtain Insulation for Cold Room Door photo-5
DINP PVC Strip Air Curtain Insulation for Cold Room Door photo-6
US$ 10 - 70 MOQ: 1 Roll
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Curtain
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Air Curtain
Place of Origin Hebei, China
Brand Name Kingflex
Model Number PVC Strip Air Curtain
Operating Voltage Other
Mounting Other
Certification Other
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Kingflex Strip PVC air door curtain are an ideal way to cover a doorway or opening while retaining ease

of traffic between the two areas. Instead of a solid door that must be opened and closed, a strip door consists of many overlapping PVC plastic strips that you can pass through. Strips can be either translucent or opaque and are available in a wide variety of materials for different applications. Strip doors help you save money by regulating the temperature between two distinct areas, such as separating a warehouse from the outdoors.



Technical Data of PVC Strip Air Curtain :

Polar Pvc Strip Curtains

Performance Test

Standard Clear Formula

Cold Formula

super polar curtain

Unit

Softness A Hardness

75+-5

65+-5

65+-5

-

Brittle Point

Approx -35

Approx -45

Approx -45

Degrees C

Falling Ball Test

"-20 No Break

"-40 No Break

"-50 No Break

Degrees C

Flexibility

"-20 No Break

"-40 No Break

"-50 No Break

Degrees C

Water Absorption

0.20%

0.20%

0.20%

%

Tensile Stress

340

420

420

%

Rupture Resistance

>5

>2

>2

N/mm

Reaction to Fire

Self-extinguishing

Self-extinguishing

Self-extinguishing

0

Flammability

Inflammable

Inflammable

Inflammable

0

Airborne Insulation

~35dB

~35 dB

~35 dB

0

Light Transmission

>80

>80

>80





Specification of PVC Strip Air Curtain :

size

Width: 200mm, 300mm, 400mm

Length: 25/50m

Thickness: 2.0mm, 3.0mm, 4.0mm

Surface Type

smooth/glossy/flat, ribbed

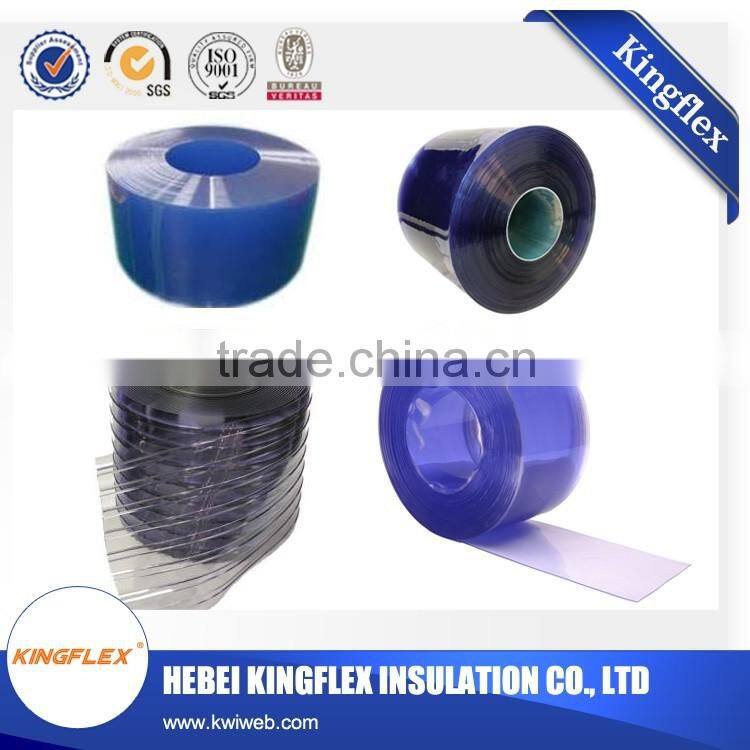

Product Pictures



DINP PVC strip air curtain insulation for cold room door

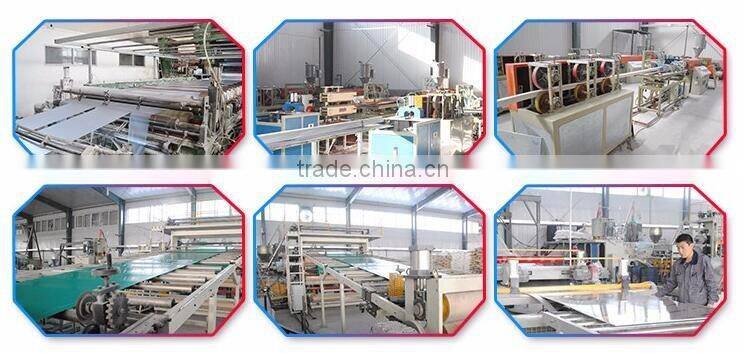

Production Process



DINP PVC strip air curtain insulation for cold room door

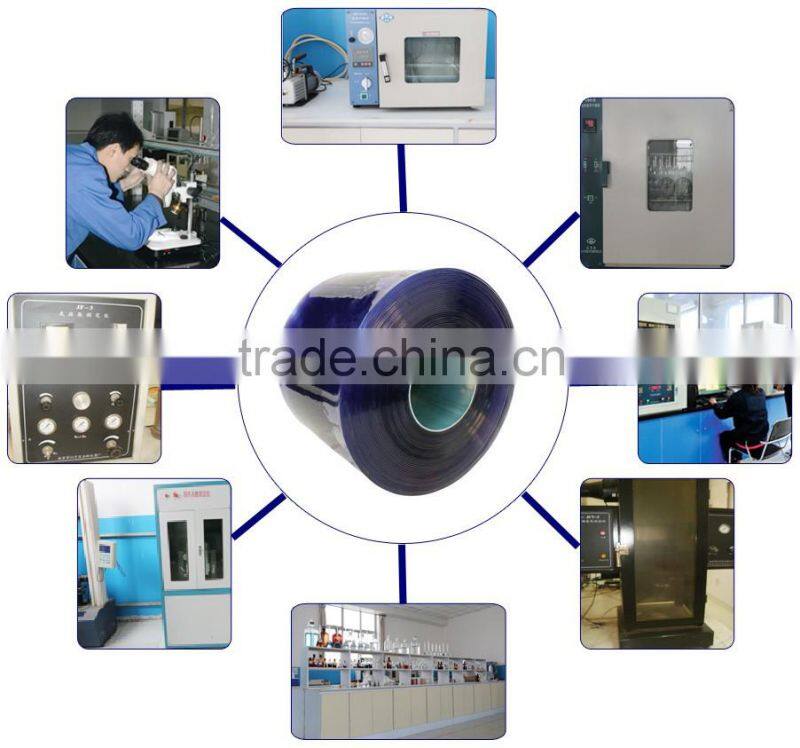

Quality Inspection



Kingflex have a sound and strict Quality Control System. Every order will be checked from raw material to the final product

To keep stable quality, we Kingflex make out our own testing standard, which is higher requirements than testing standard in domestic or abroad.

DINP PVC strip air curtain insulation for cold room door



Certificate



DINP PVC strip air curtain insulation for cold room door





Packaging & Shipping



DINP PVC strip air curtain insulation for cold room door

DINP PVC strip air curtain insulation for cold room door

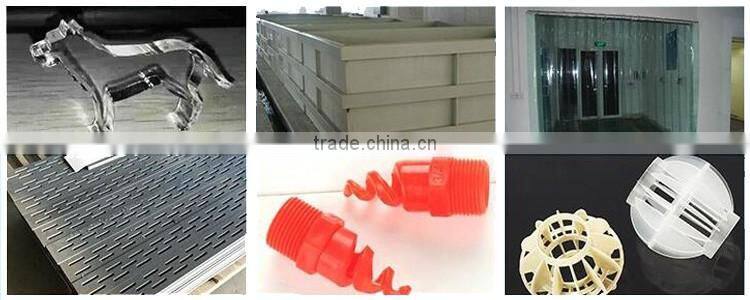

Application



Our product are widely used in national defense,electricity,machinery,petroleum,chemical,metallurgy,

shipbuilding,transportation and other economic fields.

DINP PVC strip air curtain insulation for cold room door



Company Information



Why Kingflex PVC Strip Air Curtain Insulation?

  • We are engaged in insulation materials since the year 1979
  • Our company is operated under the guidance of ISO system
  • Latest technology and most advanced forming process

DINP PVC strip air curtain insulation for cold room door



The Exhibition



DINP PVC strip air curtain insulation for cold room door



Our Customer



DINP PVC strip air curtain insulation for cold room door



Our Services



Dear Friends,
Welcome to visit our website and hope we two parties can have a long lasting business relationship.
Kingflex have professional technicians and sound QC system to supply qualified goods to match your requirements.
Kingflex have a professional and dedicated sales team, attentive service and timely reply will be supplied if needed.
Any enquiries, please feel free to contact us at any time.

  • 24 hours prompt reply by email or telephone or messenger.
  • Standard size have stock, immediately delivery once your purchase
  • At most two weeks delivery for ordered goods out of stock
  • Accessories such as adhesive tape, aluminum foil tape can be also supplied to match the installation
  • For trial order, special price will be supplied.
  • For orders equal or above 5*40HQ, special discount will be supplied.
