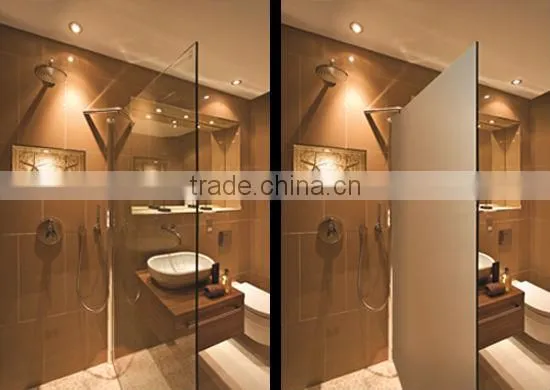

Go from public to full privacy with a filp of switch
Smart switchable glass is leading to a new field of modern office facilities. It bring new style which is trendy and in fashion now a days.
Since the birth of glass, window treatments have been used to solve the seemingly impossible problem of balancing privacy with the unobstructed flow of light.
Blinds, curtains, shutters — all of them told prying eyes to “mind your own business.” But until SwitchLite Privacy Glass, these solutions were a compromise.
Now you can have the ultimate. All the light you could want but with total MYOB privacy at the flick of a switch. The secret is a Liquid Crystal sheet permanently bonded between two layers of glass.
Power on, and the glass is clear. Power off, and the glass goes translucent. Privacy at the speed of light. Finally.
PRODUCT-FEATURE
1. Transparent when power on, opaque when power off; freely switching; concise and convenient.
2. By spinning the voltage control button, change the light intensity and Infra Red Transmission automatically according to the change temperature and lights outside the window, which can achieve the effect for fixing the temperature and light. It is of high UV resistance, environmental protection and health protection.
3. Double layer laminating technical, Of the high quality of safety glass, it is safe and firm, together with sound insulation, heat insulation and high noise resistance.
4. Various controlling ways: switch, light control, voice control, thermal control, remote control, remote network control, etc, custom made by customers'require.
| Thickness | Double tempered glass | 3+3,5+5,6+6,8+8,10+10,12+12 (mm) |
| a piece of Pdlc-interlayer | 1.14mm approximately | |
| Max size | 1300×3200mm | |
| Life time | >50,000hr (ON) |
|
| View angle | 120° |
|
| Qualification | Standard.Pass Chinese Safety Glass Compulsory Certification(CCC). |
|
| ITEMS | PARAMETER | STATUE |
| Parallel light transmittance | 79% | power on |
| 5% | power off | |
| Visible light transmittance | 81% | power on |
| 52% | power off | |
| Haze | 8% | power on |
| 90% | power off | |
| Reaction | 10ms | power on |
| 200ms | power off | |
| Operating Voltage | 60V | power on |
| Power Consumption | 6w/m² | power on |
| Works temperature | 0~55°C | ———— |
1. Many years experiences on glass manufacturing and exporting.
2. Advanced glass machines and tecnology,tempered glass,laminated glass,insulated glass,low e float glass,special glass such as smart switchable glass etc.
3. Excellent quality glass with very competitve price.
4. Glass export to more 75 countries in the world.
5. Customize all kinds of glass products like aquarium fish tanks, glass switch socket , glass lighting switch ,toughened glass stair handrail for each client.
6. Safe package and fast delivery.
7. Professional services for maximizing customer benefit.
Smart glass or switchable glass — also called smart windows or switchable windows in its application to windows or skylights — refers to glass orglazing that changes light transmission properties under the application of voltage, light or heat.
Smart glass controls the amount of light (and thereby heat) transmission. When activated, the glass changes from transparent to translucent, blocking some or all wavelengths of light.
Smart glass technologies include electrochromic, photochromic, thermochromic, suspended particle, micro-blind and liquid crystal devices.
Smart glass can save costs for heating, air-conditioning and lighting and avoid the cost of installing and maintaining motorized light screens or blinds orcurtains. Most smart glass blocks ultraviolet light, reducing fabric fading; for SPD-type smart glass, this is achieved in conjunction with low emissivitycoatings.
Critical aspects of smart glass include material costs, installation costs, electricity costs and durability, as well as functional features such as the speed of control, possibilities for dimming, and the degree of transparency.
Any enquires, please feel free to contact me ;)
