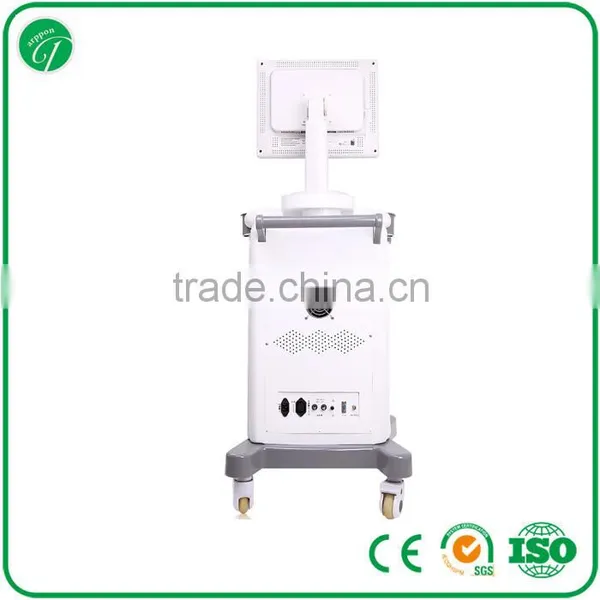

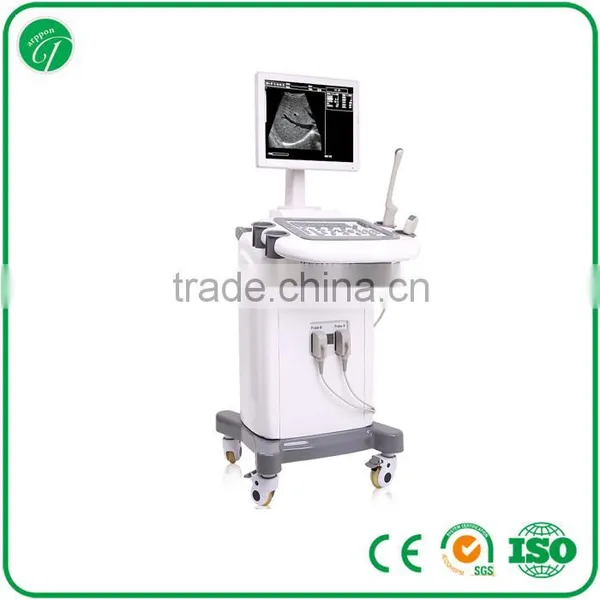

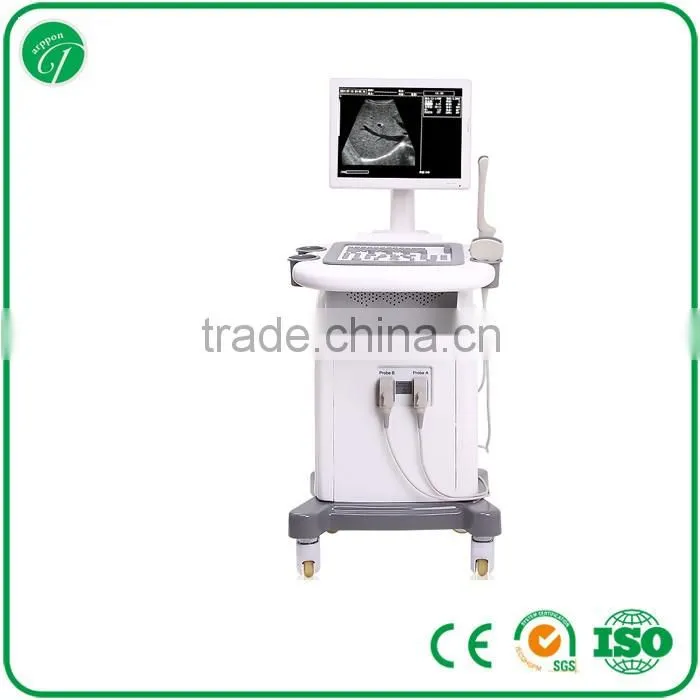

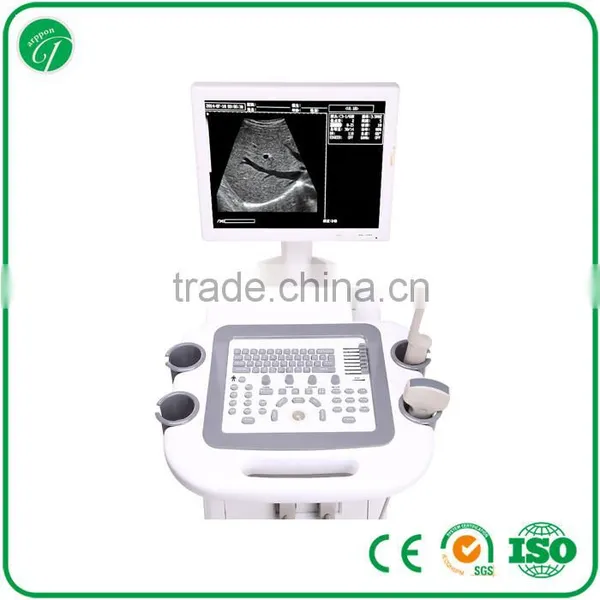

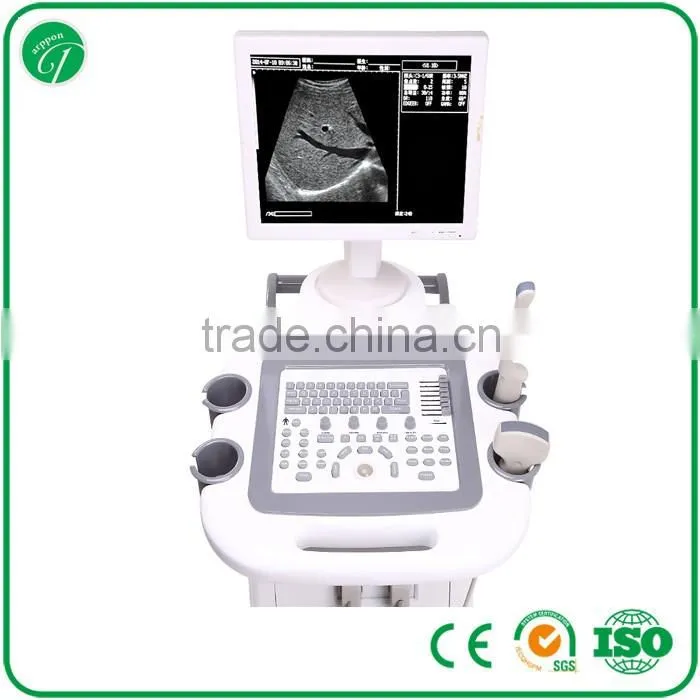

Trolley Ultrasound Scanner / Ultrasound 3018II
- 1000 Unit / Units per Month
- wuhan
- T/T L/C D/P D/A Credit Card PayPal
-
Veterinary Ultrasound Scanner Animal Ultrasound Detector Essential Instrument for Pet Care
-
Medical Sonar Ultrasound Vet Handheld Pig Sheep Pregnancy Ultrasound Machine
-
Vet veterinary ultrasound machine handheld ultrasound echo scanner for cow
-
Handheld Digital Veterinary Ultrasound Canine Horse Pigs Cow Pregnancy Animals Portable Device Vet Ultrasound
-
Medical animal veterinary instrument ultrasound machine price for vet ultrasound pregnancy scanner
-
Hysteroscopy : Display + Camera system + light source + Trolley + Hysteroscope + Gynecology Resectoscope + Electronic surgical Unit + Endoscopy Pump
Product Details
| Type: | Portable Ultrasonic Diagnostic Devices | Brand Name: | darppon | Model Number: | 3018II |
| Place of Origin: | Hubei, China |
Product Description
Trolley Ultrasound Scanner / Ultrasound 3018II
Features:
The system uses micro computer technology, Digital Scanning Converter (DSC), variable aperture,
multi-section dynamic focusing, high dynamic, low noise, wide band pre-amplifier, log compression,
and TGC control, dynamic filtering, edge enhancement and frame correlation.
Those embedded components allow a clear, stable and high resolution image.
Power Supply: 100V~130V/220V~240V, 50/60Hz.
Specifications:
| Probe | Standard | Optional | |||
| 3.5MHz convex probe | 7.5MHz linear probe | 6.5MHz trans-vaginal probe | |||
| Probe frequency | 2.5Mhz,3.5Mhz, 5.0Mhz | 6.5Mhz,7.5Mhz,8.5Mhz | 5.5Mhz,6.5Mhz, 7.5Mhz | ||
| Display depth (mm) | 240 (max),16 levels adjustable | ||||
| Max detect depth (mm) | ≥160 | ≥80 | ≥60 | ||
| Resolution (mm) | Lateral | ≤2 (depth≤80) ≤3 (80<depth≤130) | ≤1 (depth≤60) | ≤1 (depth≤40) | |
| Axial | ≤2 (depth≤80) ≤3 (80<depth≤130) | ≤1 (depth≤60) | ≤1 (depth≤40) | ||
| Blind zone(mm) | ≤5 | ≤3 | ≤7 | ||
| Geometric position precision | Horizontal | ≤15 | ≤5 | ≤10 | |
| Vertical | ≤10 | ≤5 | ≤5 | ||
| Monitor size | 14 inch | ||||
| Display mode | B,B+B,B+M,M,4B | ||||
| Image gray scale | 256 level | ||||
| Cine loop | 809 frame (Max) | ||||
| Image storage | 32 frames | ||||
| Scan angle | Adjustable | ||||
| Scan depth | 40mm-240mm | ||||
| Acoustic power | 2 steps | ||||
| Dynamic range | 100dB-130dB | ||||
| Image flip | Up/down, left/right, black/white | ||||
| Focus position | Adjustable | ||||
| Focal space | 5 level | ||||
| Measurement | Distance, circumference, area, volume, heart rate. GA,FW,EDD and etc. | ||||
| Notation | Date, time, name. sex, age, doctor, hospital name.Full screen words edit. | ||||
| Output report | 2 types | ||||
| Posture mark | ≥40 | ||||
| Video output | PAL-D, VGA | ||||
Standard configurations:
.Scanner Body:1pc
.3.5Mhz Convex Probe: 1pc
.Charger with a Set of wires: 1set
.Bottle of USG gel: 1pc
.User Manual: 1pc
Optional:
.7.5Mhz Linear Probe
.6.5Mhz Trans-vaginal Probe
.5.0Mhz Micro-convex Probe
.Thermal Video Printer
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
