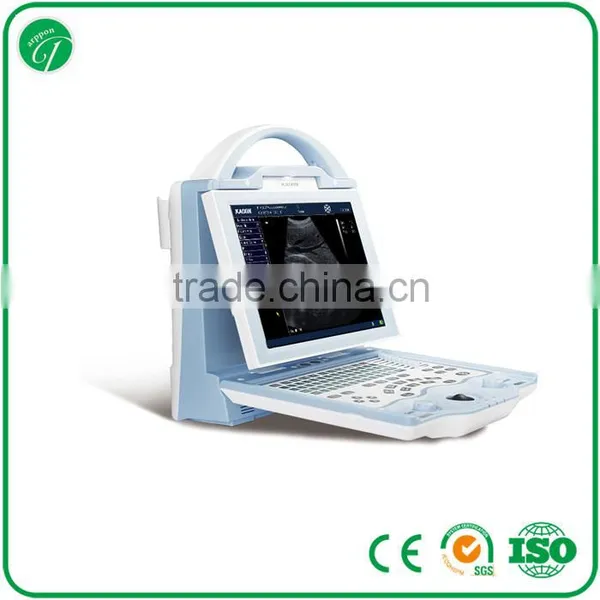

Hospital Equipment Laptop Ultrasound Machine/portable Ultrasound Scanner KX5600
US$ 1,200 - 1,800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Portable Ultrasonic Diagnostic Devices
Brand Name:
DARPPON
Model Number:
5600
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Touch Screen Bladder Ultrasound Scanner BVT01US$ 4,500 - 5,000MOQ: 1 Unit -
Ultrasound Machine 3d Laptop Touch Screen B-ultrasound Scanner TS20US$ 300 - 350MOQ: 1 Unit
-
Medical Hospital Ultrasound Equipments & Tlaptop Ultrasonic MachineUS$ 1,500 - 1,800MOQ: 1 Unit
-
Handheld PC Platform 3D Workstation Ultrasound Scanner With Convex Linear Micro-convex Transvaginal Probe Optional 3018HUS$ 900 - 1,200MOQ: 1 Unit
-
Portable Ultrasound / 4D Ultrasound Machine / 4d/3d/2d Ultrasound Scanner With Printer2018CIVUS$ 1,800 - 2,200MOQ: 1 Unit
Type
Portable Ultrasonic Diagnostic Devices
Brand Name
DARPPON
Model Number
5600
Place of Origin
Hubei, China

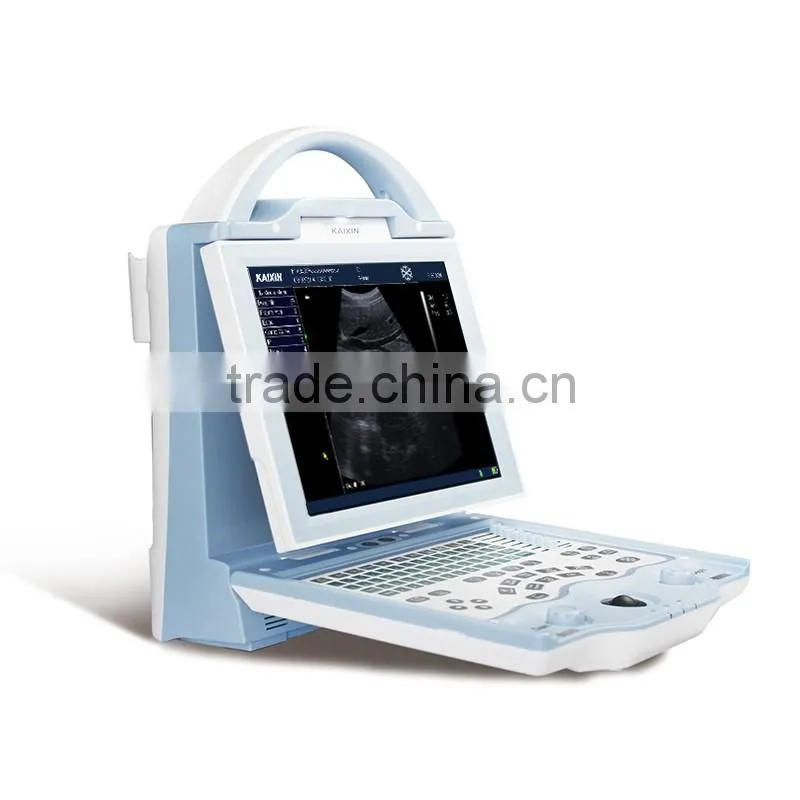

hospital Equipment laptop ultrasound machine/portable ultrasound scanner KX5600
Product Description
Tech Parameters:
- 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
- Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
- Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;

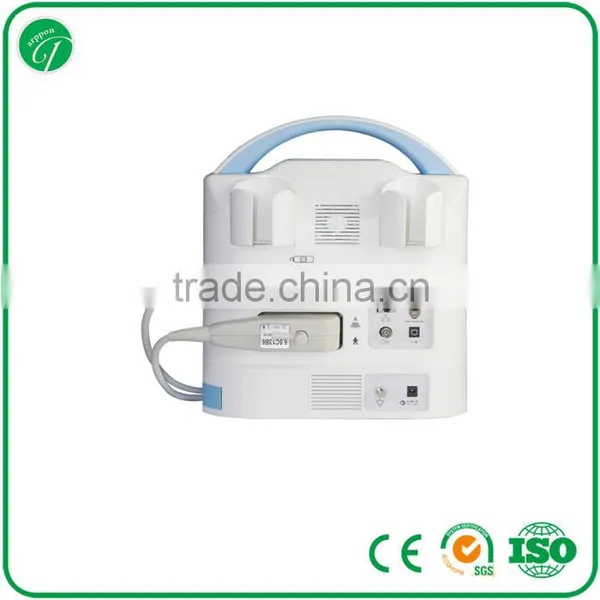

- Two probe sockets, auto-identify different optional probe;
- Body marks:total 64 kinds body marks indicating probe position;
- Display mode:B,2B,4B ,B/M,M ;
- Adjustable depth: 10 grades, max depth to 236mm;
- Gain:0~127dB;
- Contrast:27~90dB;
- Gray scale:256;
- 8 steps intelligent TGC;
- Frame frequency: 30 frames /second
- 8 kinds pseudo colors;
- Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off.
- Cine loop:256 frames;
- Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);
- the gravel software package with real-time position line measurement
- Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
- Cardio measurement:Depth, slope, heart rate, cycle;
- Gynecology measurement and analysis: gynecology general measurement and gynecology report.
- OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
- Urology measurement and analysis: residual urine volumem, prostate volume, and urology report .
- One-key store: concise and practical;
- One-key review:fast, practical image review function;
- One-key Print;
- One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
- Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station);
- Unique One-key-light keyboard function for black room use;
- Display brightness adjustable;
- Dual TV output: PAL/NTSC, can connect video printer when necessary;
- Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz;
- Power supply adaptor output:DC12.8V 3.0A;
- Main unit weight:4.5kg(without accessories);

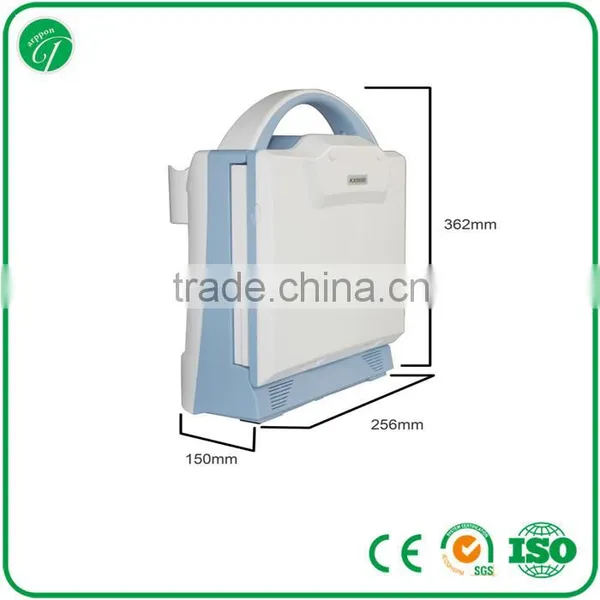

- Main unit dimension:256×150×326mm(L×W×H);
Main basic configuration:
- Main unit 1pc;
- 3.5MHz convex probe 1pc;
- Power supply adaptor 1pc;
- Reticle 1pc;
- Two probe sockets
Optional parts:
- Optional probes
6.5MHz multi-frequency trans-vaginal probe(through vagina)
6.5MHz micro-convex probe for small animals
7.5MHz multi-frequency linear probe
7.5MHz multi-frequency cavity probe (through anus)
- Battery charger
- Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh

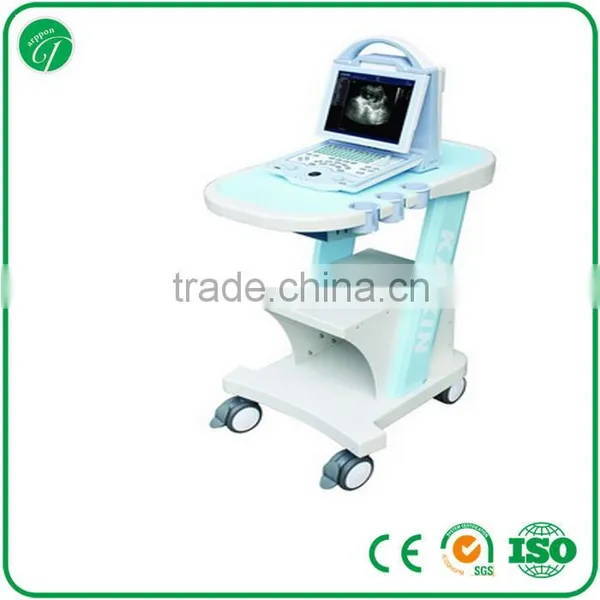

- trolley
- Video printer(UP-897MD)
- Ethernet Switch
Hot Sale
Our Services
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
