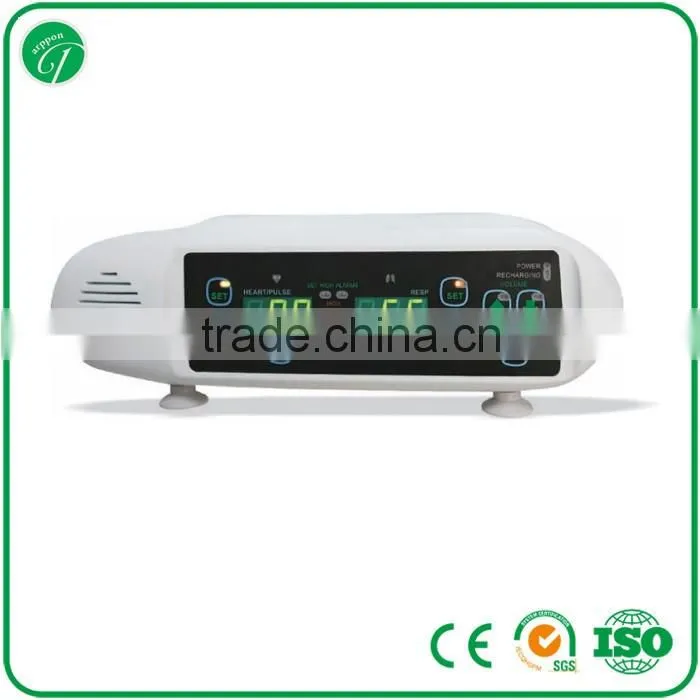

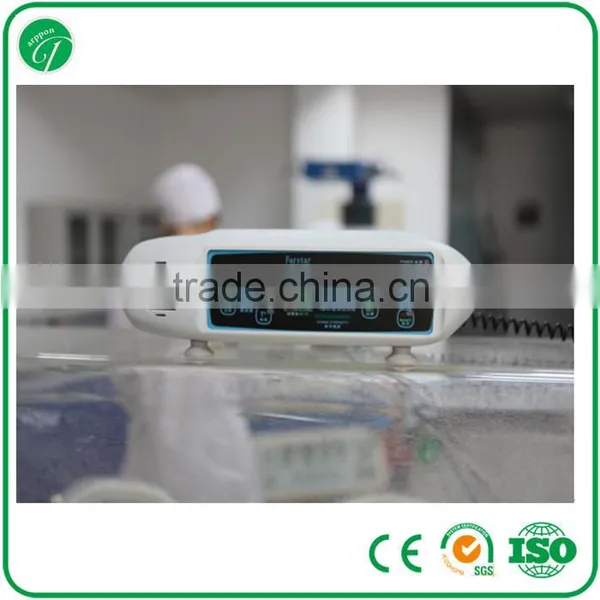

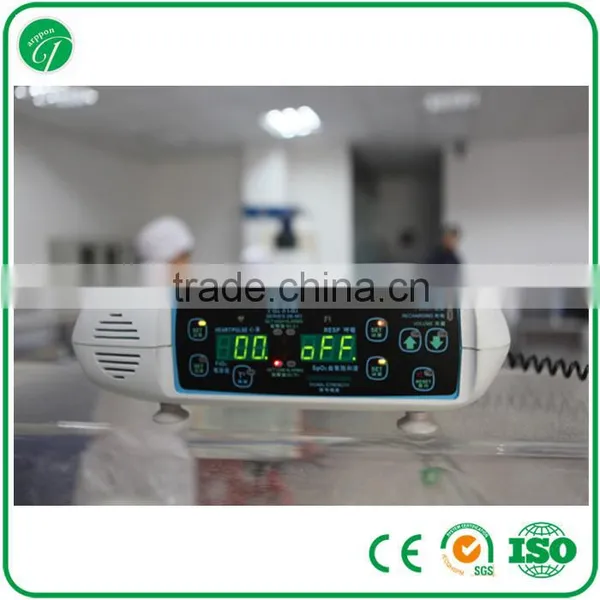

pulse Oximeter, Respiratory Monitor
Cardio-respiratory Monitor Technical Parameter
Model: Series2B
(1)Components:
Comprised of main unit,oxygen sensor,oxygen sensor cable,disposible electrode slice,ECG lead cable,temperature probe,power supply,rechargeable battery.
(2)Function and Usage:
Series 2B monitor features mainly in below clinical functions:
1,Heart rate monitoring;2,Respiratory rate monitoring;3 neonates temperature monitoring;4,oxygen analysis and monitoring;5,High or low heart rates alarm;6,Apnoea of 15 or 20 seconds alarm(adjustable);7,Cardio-respiratory coincidence alarm;8,Loose chest leads alarm;9,Variations in ambient oxygen concentration alarm;
(3)Technical Parameter:
1.Operating temperature: 0℃~40℃
2.ECG:input:differential,isolated;minimum signal:0.1mV;frequencyrange:6-30Hz;
input impedance:10 Mohms; defib. shock protection:5KV,500J discharge; lead-off threshold:2.5K ohms;range:40-255BPM;accuracy:±1%; resolution:1bpm
3.Oxygen analyzer: equipped with Teledyne R17 sensor; accuracy:1%; alarm: 2% from set level; full cell life: one years with normal usage
4.Temperature: temperature range: 29-45℃;accuracy:0.1; probe:YSI400 series
5.Respiration: in the principle of impedance pneumography;frequency:49K Hz; patient auxiliary current:6.3 microamps; minimum signal:0.15ohm;apnoea period:15 or 20s;sensitivity adjustment:switchable,3 levels; cardio-respiratory coincidence:5s to alarm; accuracy: ±1%; resolution:1 bpm
6.Power supply:110-130 VAC,220-240 VAC/9V DC; double insulated plug-pack
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
