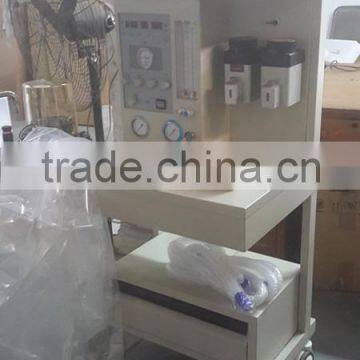

anesthetic machine price 01-II
TECHNIQUES SPECIFICATIONS | |
Physical specifications | |
Screen: |
LED Display Screen |
Suitable |
Adult & Child |
Mode: |
pneumatically powered and electrically controlled system |
Working Mode: |
Closed; Semi-Closed; Semi-Open |
Circuit |
Breathing circuit integrated standards |
Tube: |
2 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min |
Trolley: |
Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions |
Safty |
NO2 Automaticlly Cutting while oxygen deficiency |
Drawer unit |
ONE drawer totally extractable |
Technical Specifications: | |
Gas requirement: |
Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa. |
safety valve |
<12.5 kPa |
Respiratory Rate |
4~40bpm |
Flow meter |
O2:0.1~10L/Min, N2O:0.1~10L/Min |
oxygen concentration in the mixed gas N2O/O2 |
> 21% |
Oxygen Flush: |
25~75 L/min |
Maximum error of the pressure testing device |
not exceed ± (4% of the full scale reading + 8% of the actual reading) |
modes of ventilation |
A/C,IPPV, SIPPV, MANUAL |
I/E Ratio: |
1:1.5; 1:2.0;1:2.5; 1:3 |
Tidal Volume |
0~1500ML |
Controlled ventilation and assisted ventilation switching time |
6s |
Maximum safety pressure: |
≤ 12.5 kPa |
Pressure limit range: |
0 ~ 6.0 kPa |
Airway pressure alarm: Audible and visual and with yellow and red color indicating |
Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa |
±0.2 kPa | |
Tidal volume alarm: Audible and visual and with yellow and red color indicating |
upper alarm: 50 to 2000ml,lower alarm: 0~1800ml |
Power Supply Alarm |
Ac/dc power supply are after failing to send out alarm immediately |
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
