12 leads ECG machine with measurement and interpretation price of ecg machine
Product Introduction

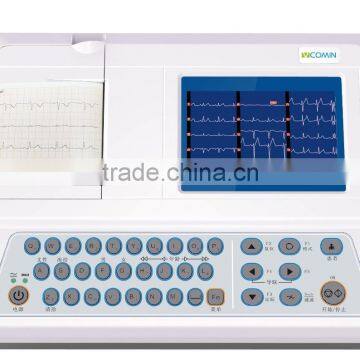

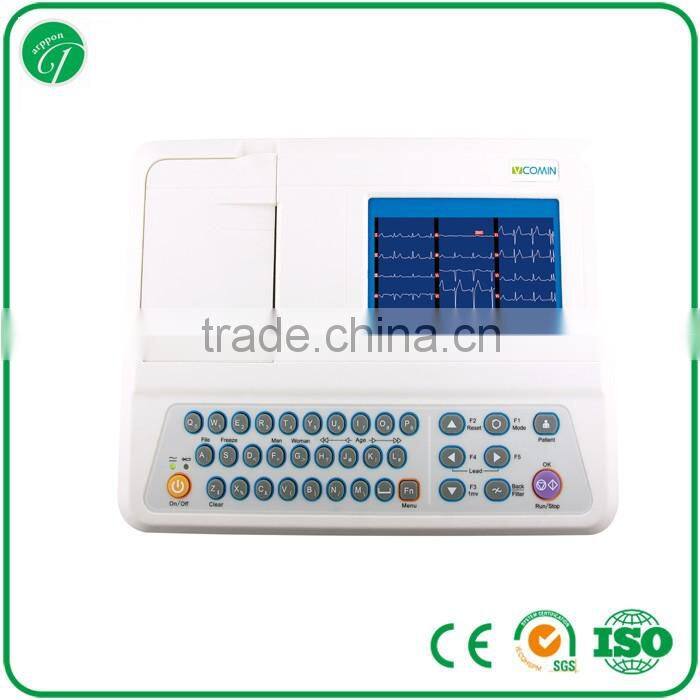

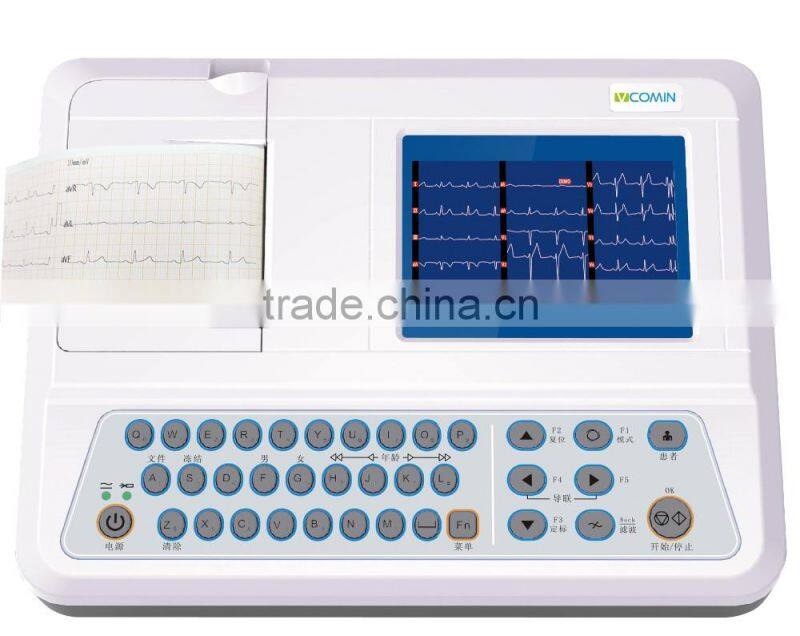

Model: S-8033
Name: Electrocardiograph
1. Features
3 channel ECG machine with interpretation
Manual/Auto/Arrhythmia Analysis Modes
80mm 3-ch recording with rhythm lead
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply

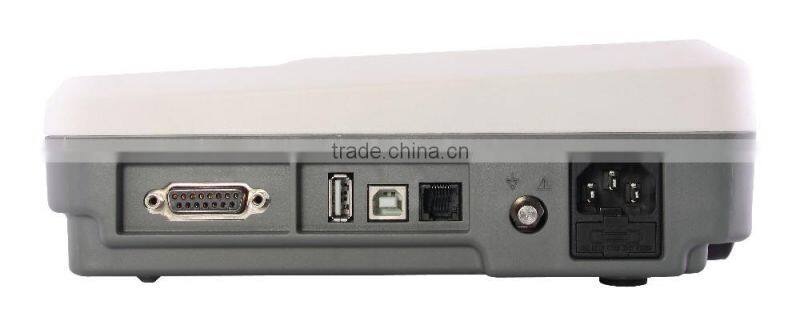

Built in USB/RS232 interface(ECGNET software Optional)
2. Technical Specification
Lead:standard 12 leads
Calibrating voltage: 1mV±2%
Voltage tolerance: ≥±500mV
Time constant: ≥3.2s
Frequency response: 0.05~160Hz(-3db)
Noise level: <15μVp-p
Sensitivity valve: ≤20μV
Sensitivity: 2.5, 5, 10, 20mm/mV
Inter-channel Interference: ≤0.5mm
Paper speed: 6.25, 12.5, 25, 50mm/s(±3%)
Input dynamic range:±10Vpp
Filter:
| AC Filter | 50Hz / 60Hz |
| EMG Filter | 25Hz / 45Hz |
| Anti-Drift Filter | 0.15Hz (Adaptive) |
| CMMR | ≥120dB (with AC filter) |
| Input Impedance | ≥50MΩ |
| Input circuit current | ≤0.05μA |
| Patient current leakage | <10μA |
| Lead acquisition | 12bit/1000Hz(synchronously 12 leads) |
| Work modes | MAN,AUTO,ANALYSIS modes |
| Display | 5 inch colour LCD |
3. Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
