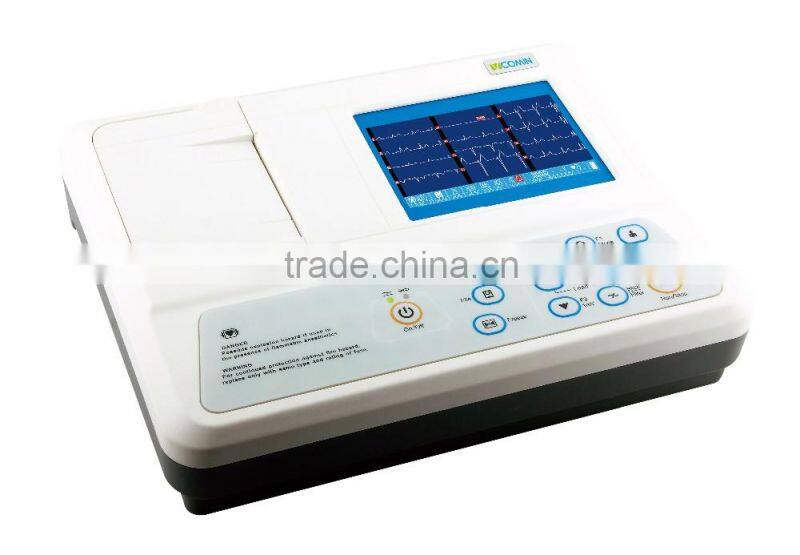

3-channel Electrocardiograph ECG Machine EKG Machine with Analysis Software Transfer Data to PC S-8032
Product Introduction
Model: ECG-8032
Name: Electrocardiograph
1. Features
3 channel ECG machine with interpretation
Manual/Auto/Arrhythmia Analysis Modes
80mm 3-ch recording with rhythm lead
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply

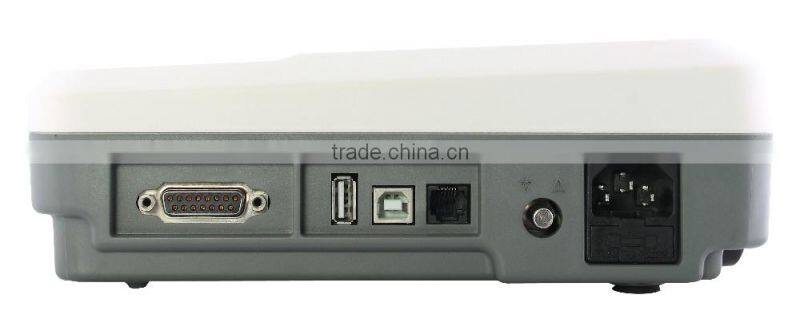

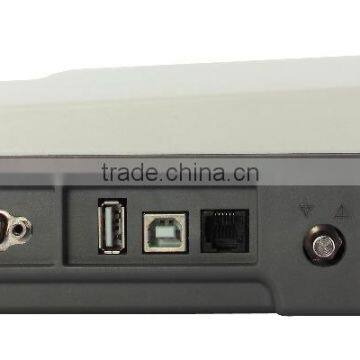

Built in USB/RS232 interface(ECGNET software Optional)
Technical Specification
| Lead | standard 12 leads |
| Calibrating voltage | 1mV±2% |
| Voltage tolerance | ≥±500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05~160Hz(-3db) |
| Noise level | <15μVp-p |
| Sensitivity valve | ≤20μV |
| Sensitivity | 2.5, 5, 10, 20mm/mV |
| Inter-channel Interference | ≤0.5mm |
| Paper speed | 6.25, 12.5, 25, 50mm/s(±3%) |
Filter:
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR: ≥120dB (with AC filter)
Input Impedance: ≥50MΩ
Input circuit current: ≤0.05μA
Patient current leakage: <10μA
Lead acquisition: 12bit/1000Hz(synchronously 12 leads)
Work modes: MAN,AUTO,ANALYSIS modes
Input circuit: floating; protection circuit against defibrillator effect
Display: 5 inch colour LCD
ECG waveform,100 patient save/replay
3. Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
