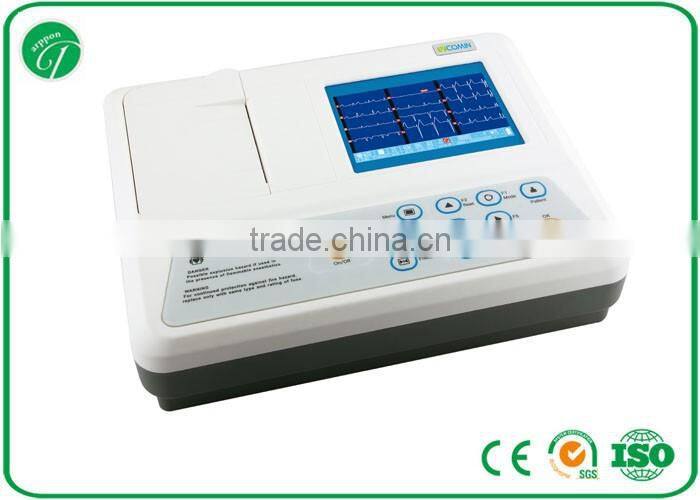

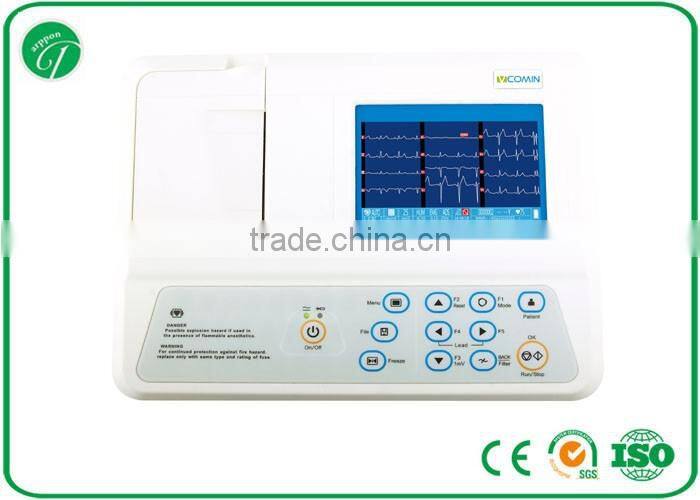

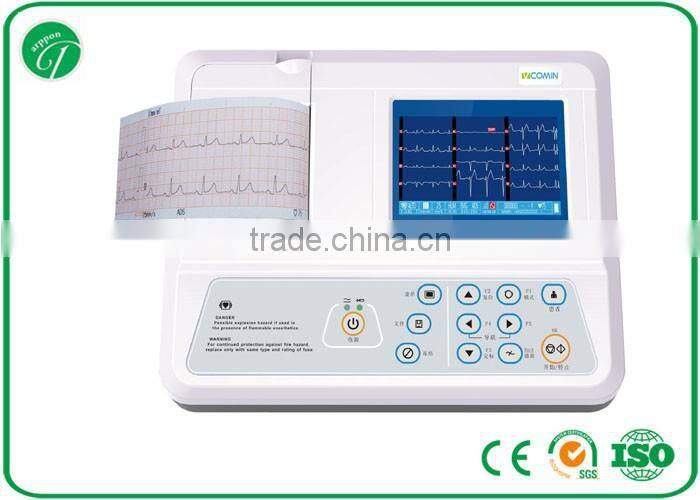

Single channel portable ECG machine with standard 12 leads in Ni-Mh battery
Product Introduction
Model: ECG-8012
Name: Electrocardiograph
1. Features
Single channel ECG machine with measurement and interpretation
Work modes: Manual/Auto/Arrhythmia analysis modes
Built in rechargeable Ni-Mh battery
Adaptor 110-230V, 50/60Hz AC power supply

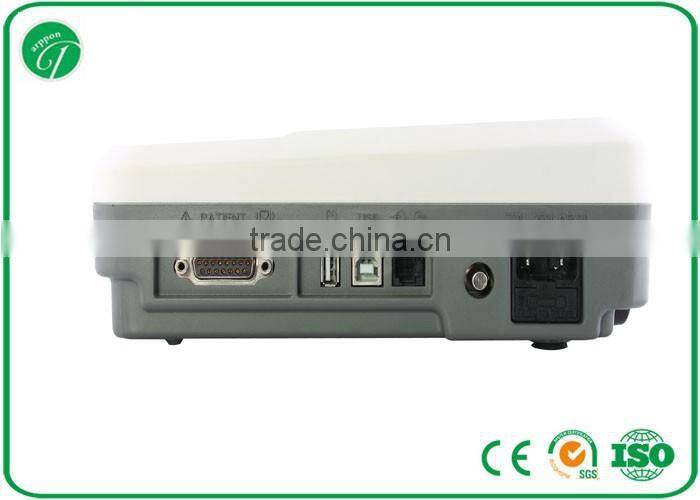

Built in USB/RS232 interface (ECGNET software Optional)
Lead-off indictor
2. Technical Specification
| Leads | standard 12 leads |
| Patient current leakage | <10μA |
| Lead acquisition | 12bit/1000Hz(synchronously 12 leads ) |
| Calibrating voltage | 1mV±2% |
| Work mode | MAN,AUTO,ANALYSIS modes |
| Voltage tolerance | ≥±500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05~160Hz(-3db) |
| Input dynamic range | ±10Vpp |
| Sensitivity valve | ≤20μV |
| Sensitivity | 2.5, 5, 10, 20mm/mV |
| Inter-channel Interference | ≤0.5mm |
| Paper speed | 6.25,12.5, 25, 50mm/s(±3%) |
| AC filter | 50Hz / 60Hz |
| EMG Filter | 25Hz / 45Hz |
| Anti-Drift Filter | 0.15Hz (Adaptive) |
| CMMR | ≥120dB (with AC filter) |
| Input Impedance | ≥50MΩ |
| Input circuit current | ≤0.05μA |
| Noise level | <15μVp-p |
| Input circuit | floating; protection circuit against defibrillator effect |
| Display | 3.5 inch colour LCD |
3. Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
