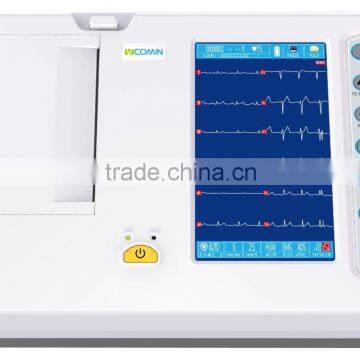

ecg machine 6 channel ECG/EKG machine with LCD touch screen E8061
1. Features
Portable 6 channel ECG machine
Working modes: Manual/Auto/Arrhythmia Analysis modes
112mm,3/6 channel format recording
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay

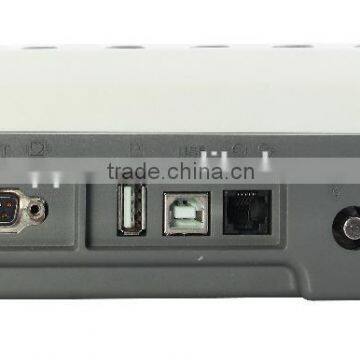

Built in USB/RS232 interface(ECGNET software Optional)
2. Technical Specification
| Lead | standard 12 lead |
| Input dynamic range | ±10Vpp |
| Patient current leakage | <10μA |
| Calibrating voltage | 1mV±2% |
| Voltage tolerance | ≥±500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05~160Hz(-3db) |
| Noise level | <15μVp-p |
| Input circuit current | ≤0.05μA |
| Sensitivity | 2.5, 5,10, 20mm/mV |
Filter:
AC filter : 50Hz / 60Hz
EMG filter : 25Hz / 45Hz
Anti-drift filter : 0.15Hz(Adaptive)
CMMR: ≥120dB (with AC filter)
Sensitivity valve: ≤20μV
Input impedance: ≥50MΩ
Work modes: MAN,AUTO,ANALYSIS Modes
Lead acquisition12bit/1000Hz(synchronously 12 leads)
Input circuit: floating; protection circuit against defibrillator effect
Display: 7 inch LCD
3. Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
