Specifications
tungsten carbide lapping plate1.be more durable
2.Custom-made available
3.Fast delivery and transportatio
Buyer’s special request will be satisfied or settled under the negotiation of the
both parties.Samples are available!

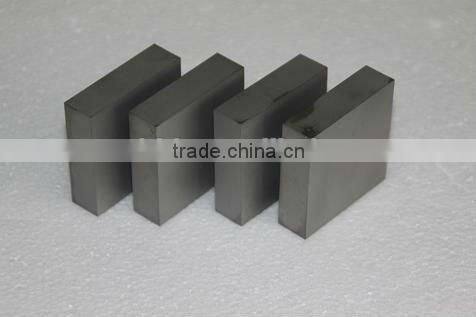

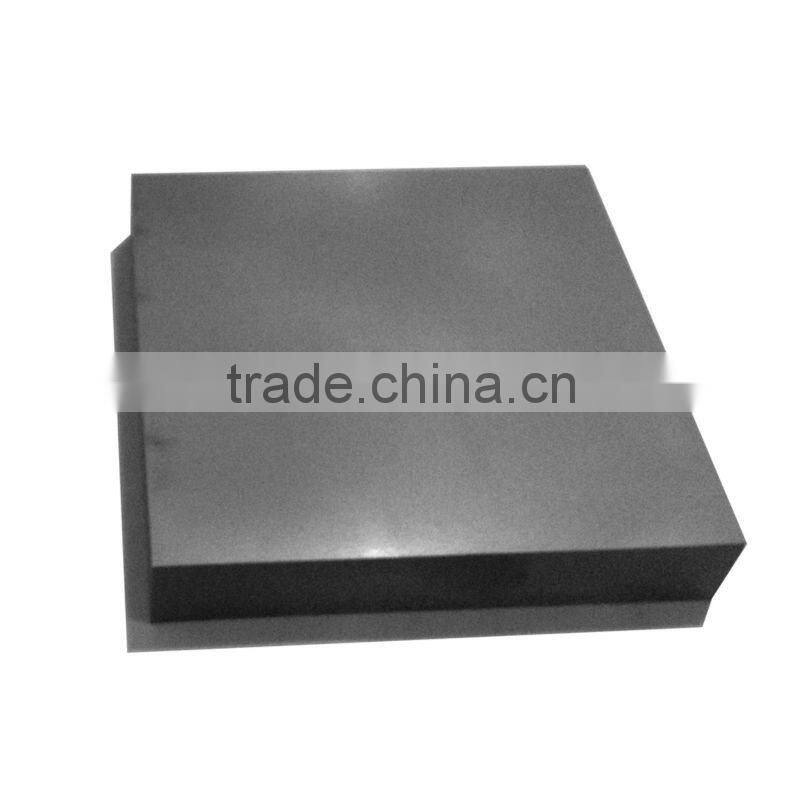

tungsten carbide plate picture
Tungsten Carbide Plates in different specifications according to clients' specific
requirements. The surface condition are divided as sintered blank and grinding,
which meet different products applications.Following is a drawing showing the
tungsten carbide plate we supplied for your reference.
tungsten carbide plate Detailed Description
1.Professional manufacturer for tungsten carbide items with more than 10 year experience
2.ISO 9001-2008 Quality Control System
3.OEM, ODM project accepted
4.All payment terms supported
Common Sizes:Thickness:5mm---45mm Width : 13mm---200 mm Length:18mm---200mm ( we can make any special dimention according to your request)
Grade Recommend
Grade |
Density g/cm3 |
Hardness HRA(hv) |
T.R.S(M Pa) |
Performances &applications recommended |
YG6 |
14.9 |
89.5 |
2150 |
Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron. |
YG8 |
14.6 |
89 |
2320 |
Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
YG15 |
14.1 |
86.5 |
2400 |
Medium grain, for mining tools, cold heading and punching dies |
YG10X |
14.5 |
92.5 |
3400 |
Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials. |
About us
Zhuzhou TongDa Cemented Carbide Works specialize in the production of bespoke Tungsten
Carbide Hard Metal Wear Resistant Products for use across a wide range of industrial applications
in both the as-sintered and finished ground condition.
Established in 2001 Zhuzhou TongDa Cemented Carbide Works are offering customers recommen-
dations and solutions for individual wear resistant components and special tooling requirements.
Zhuzhou TongDa Cemented Carbide Works produce an extensive range of tungsten carbide grades
inhouse including the popular ISO application grades of K10, K20, K30, K40, P10, P20 & P30/40 as
well as numerous special Cobalt and also Nickel binder tungsten carbide grades for use in corrosive
resistant applications.
Below are our products range, if you need any other tungsten carbide product,
welcome to our website().
Rods & End mill
Strips & Plates
cutting tools( saw blade, mining tool, insert, tips,etc)
Ring & Roller
Solutions for Polyolefins Industry
Application in Coating Industry
Wear parts of Concrete Pump
Products for mining industry
Other Customized Items
Tungsten Heavy Alloy
We can make any non-standard product according to customer's drawing paper.
Production Process for your reference
Any question, please feel free to contact me, i will reply to you as soon as possible!
....
