Home > Industrial Equipment & Components > Fastener & Fitting > Flange > Casting Grinding Steel Ball
US$ 1,500 - 6,000
MOQ: 1 Tonne
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Tianzhu
Model Number:
65Mn Casting Grinding Steel Ball
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Cement Plant Good Price Buy Steel BallUS$ 1,500 - 6,000MOQ: 1 Metric Ton -
China Low Price Buy Steel Ball for Ball MillUS$ 1,500 - 6,000MOQ: 1 Metric Ton
-
Sell Large Chrome Ball Bearings Stainless SteelUS$ 1,500 - 6,000MOQ: 1 Metric Ton
-
Cement Plant Custom Large Chrome Steel BallUS$ 1,500 - 6,000MOQ: 1 Metric Ton
-
2014 Hot Sale Stainless Precision Custom Steel BallUS$ 1,500 - 6,000MOQ: 1 Metric Ton
Place of Origin
Jiangsu, China
Brand Name
Tianzhu
Model Number
65Mn Casting Grinding Steel Ball
Application
Grinding media and Grinding Steel Ball
Dimensions
20,25,30,35,40,45,50,55,60,65,70,75,80 Steel Ball
Specifications
1. Casting Grinding Steel Ball.2. Acceptable price, best services.
3. High Hardness.

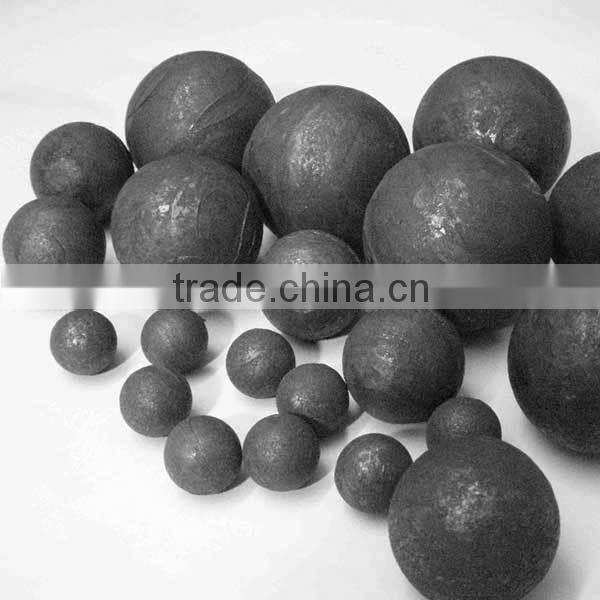

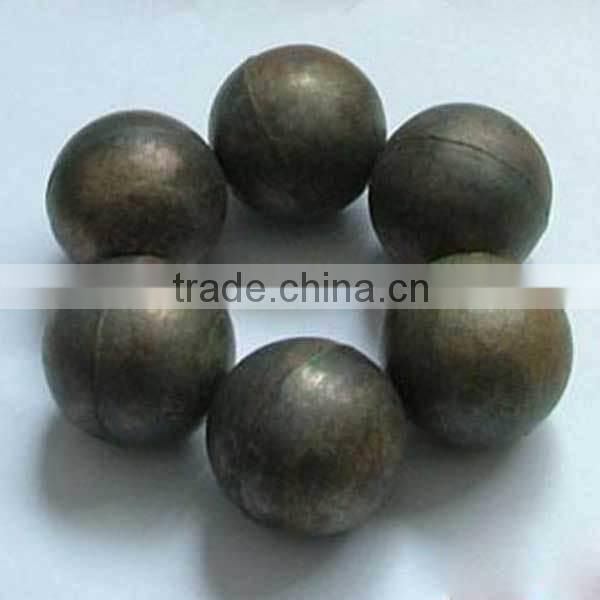

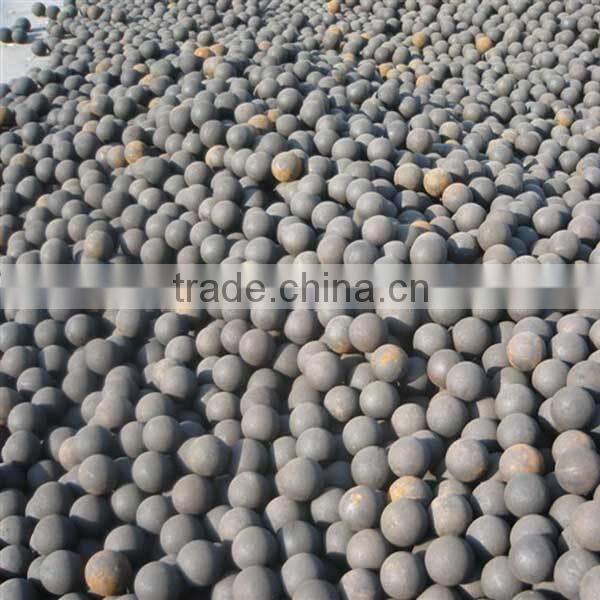

Casting Grinding Steel Ball
Casting Grinding Steel Ball is made from well-matched scrap iron and ferrochromium, heated by medium frequency electric furnace and smelted into molten iron. When the temperature of molten iron reaches into 1500°C, then pouring it into ball mould. Casting Ball is formed. Then use Sand Slinger to do Surface Treatment for Casting Balls. Last, heat treatment of casting ball. Feed the Oil Quenching Production Line with casting balls, and heated up to 960°C. Keep casting balls in the machine for 6 hours. Once finished heating, then put the balls into special quenchant(a kind of quenching liquid). Keep the Balls fully sink into the quenchant for 10 minutes. Grinding Steel Ball with the above manufacturing process is called Casting Grinding Steel Ball.
Wear Resistant Steel Ball 65Mn Chrome Alloyed Casting Grinding Steel Ball
The matrix of nodular iron is changed through isothermal quenching. It embodies high strength, super high toughness and wear-resistance. It has been widely applied in mining industry and is fit for mill.
Chemical Elements (%)
| C | Si | Mn | P≤ | S≤ | Cr≤ | Ni≤ | Cu≤ |
65Mn | 0.62~0.70 | 0.17~0.37 | 0.90~1.20 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 |
Standard: GB8649
Nominal Diameter | Theoretical Diameter | Theoretical weight | Surface hardness | Core part hardness |
(mm) | (mm) | (kg/pcs) | (HRC) | (HRC) |
20 | 20.8 | 0.037 | 63-65 | 60-63 |
25 | 28.0 | 0.072 | ||
30 | 31.2 | 0.125 | ||
35 | 36.4 | 0.198 | 61-64 | 60-63 |
40 | 41.6 | 0.296 | ||
45 | 46.8 | 0.421 | ||
50 | 52.0 | 0.578 | ||
55 | 57.2 | 0.769 | ||
60 | 62.4 | 0.999 | ||
65 | 67.6 | 1.270 | 60-63 | 59-62 |
70 | 72.8 | 1.586 | ||
75 | 78.0 | 1.951 | ||
80 | 83.2 | 2.367 |
