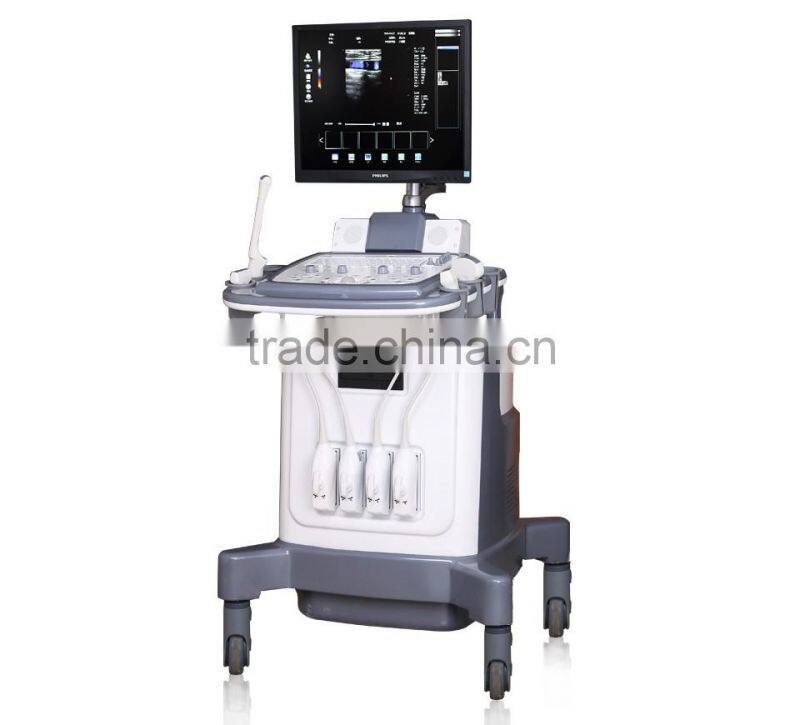

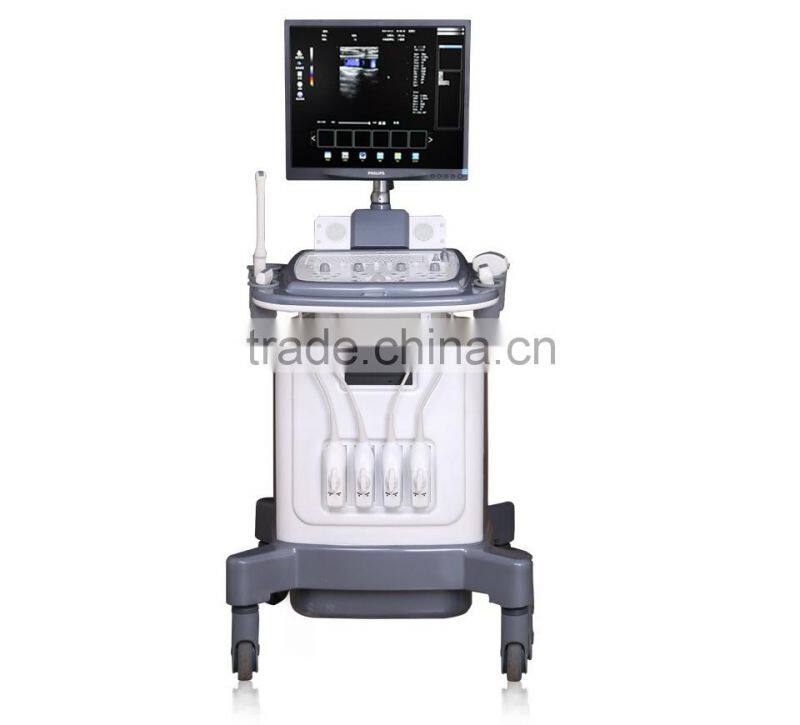

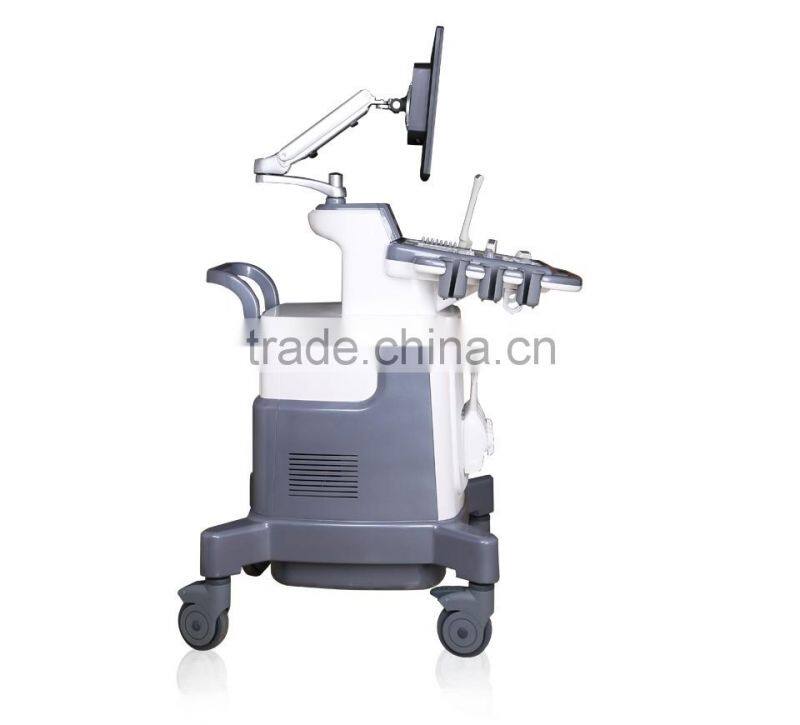

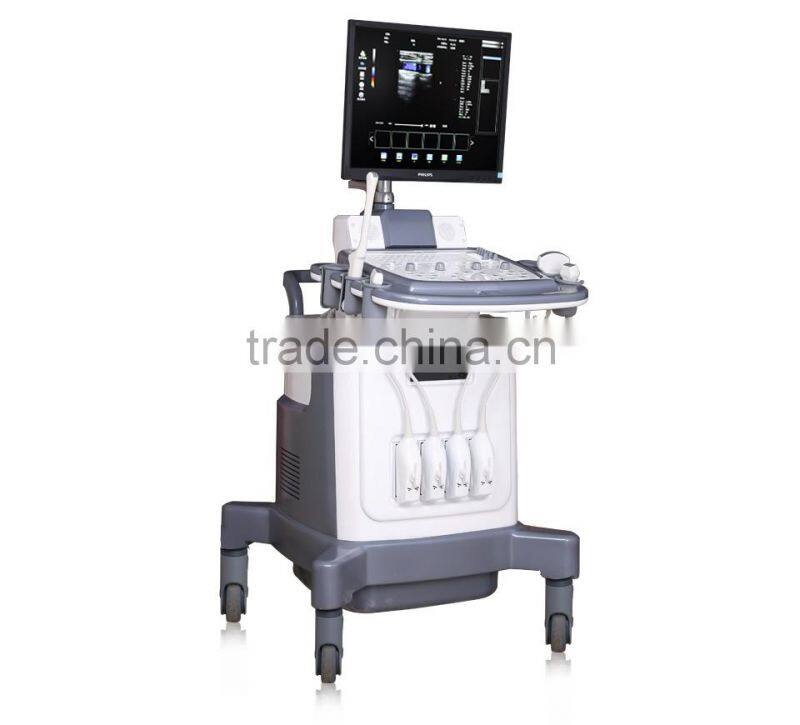

Echo Color Doppler 3D Function Laptop/Notebook Ultrasound
US$ 7,000 - 9,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Doppler Ultrasound Equipment
Brand Name:
DARPPON
Model Number:
6018T
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheapest Vascular Doctor Ultrasonic Machine Portable Color DopplerUS$ 7,000 - 9,500MOQ: 1 Unit -
Cheap Portable Vascular Color Doppler Ultrasound Scanner Price FDA ApprovedUS$ 6,500 - 7,500MOQ: 1 Unit
-
Pregnancy Baby Checking Color Doppler Ultrasound Price, Large Screen Trolley Ultrsound for Big HospitalsUS$ 8,500 - 9,500MOQ: 1 Unit
-
Top Quality 3d/4d Laptop Portable Large Size Color Doppler Ultrasound ScannerUS$ 7,000 - 9,500MOQ: 1 Unit
-
Full-digital Color Doppler Ultrasound Cardiac 3D Doppler UltrasoundUS$ 6,000 - 6,500MOQ: 1 Unit
Type
Doppler Ultrasound Equipment
Brand Name
DARPPON
Model Number
6018T
Place of Origin
Hubei, China
Echo Color Doppler 3D Function Laptop/Notebook Ultrasound
Product Description
Features:
PC control, usingreal-time dynamic high density beam scanning, wide-band and all-digital acoustic beam shape.
Real-time dynamic focus (DRF), real-time dynamic aperture (RDA), real-time dynamic apodization (DRA), real-time independent frequency, tissue harmonic image (THI), trapezoidal expansion image, 8 TGC, advanced image processing technology.
Doppler spectrum / energy images with high blood flow sensitivity, showing clearly blood flow of organ tissue.
Parameter:
- Mode: B, M , B + D, PwrD, B + C, B + C + D.
- Real-time, freezing, imagesenlargement, image rotation.
- Monitor: 19” high-resolution LCD color monitor.
- Cine-loop: ≥100 frame, format Avi,. sep and DICO, manual/automatic cine-loop, save and load cine-loop.
- Image Memory: ≥160G, format BMP JPG DCM TIF.
- Body mark: position indicator.
- 2D image gain: 8 TGC and overall gain adjustment separately, show TGC curve.
- M mode scanning speed: ≥3.
- Enlarged: ≥5 gradual adjustable.
- Dynamic range: ≥170dB.
- Record management module: search, modify, add, print, import and export of typical cases and automatically generate reports and other functions.
- Characters and comments: hospital information, patient information, full-screen characterediting, support for English interface conversion, support Chinese and English input.
- Color Gain: progressively adjustable.
- Image Control: Color flip, color afterglow, individually adjustable color priority.
Measurement:
- Mode B (2D) measurement
- a) General measurement: distance, perimeter, area, volume, distance narrower radio, area stenosis ratio.
- b) Gynecological measurement: uterine size and volume, cervix size and volume, right/left ovary size and volume, endometrial thickness, right/left follicle volume.
- M mode measurements: distance, heart rate.
- Doppler measurements: General measurement: systolic and end-diastolic velocity, peak flow, time, blood flow, pulse index and heart rate.
Standard Configuration:
| Scanner Body | 1pc |
| 3.5Mhz Convex Probe | 1pc |
| 6.5Mhz Trans-vaginal Probe | 1pc |
| 7.5Mhz Linear Probe | 1pc |
| Charger with a Set of Wires | 1pc |
| Bottle of USG gel | 1pc |
| User Manual | 1pc |
| USB disk | 1pc |
Options:
- Micro-convex probe
- Phased array probe
- Trans-virginal probe
- Linear probe
- 4D Volume probe
- Printer
- Guided probe holder
Hot Sale
Our Services
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
