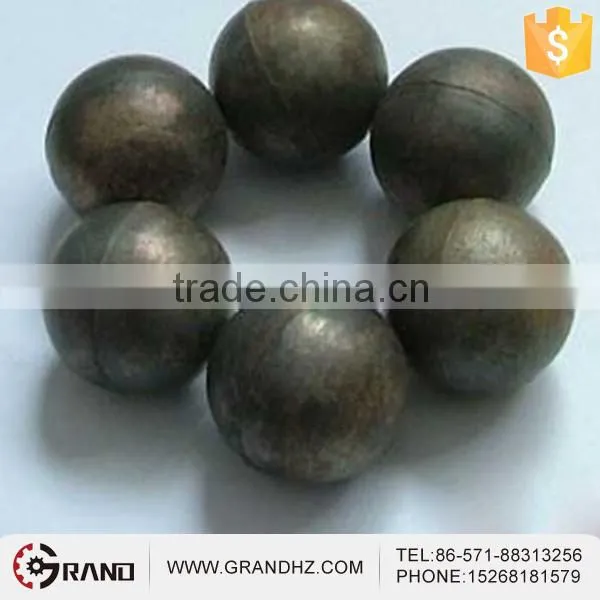

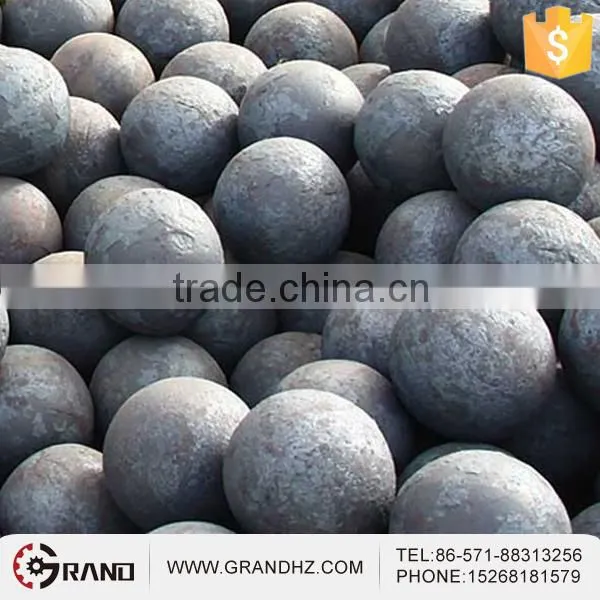

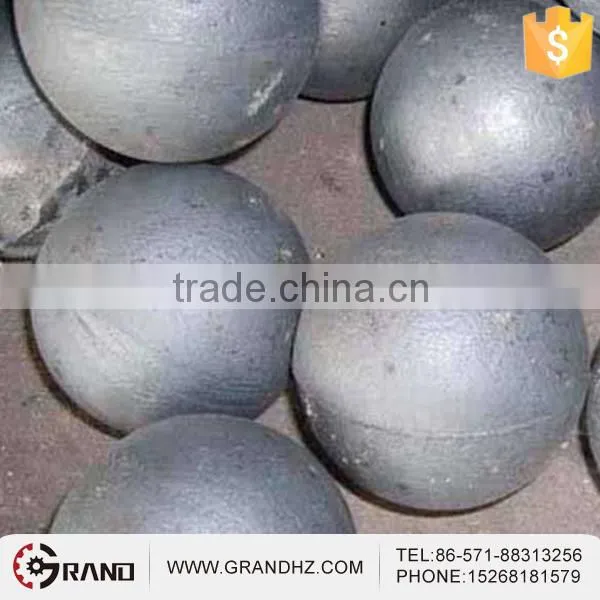

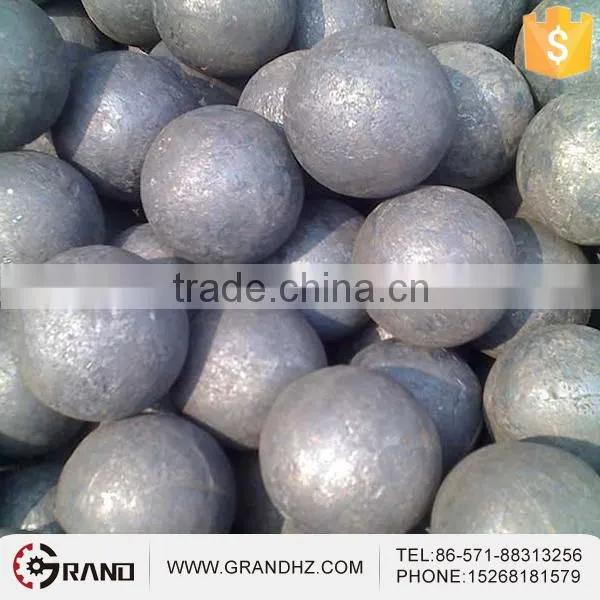

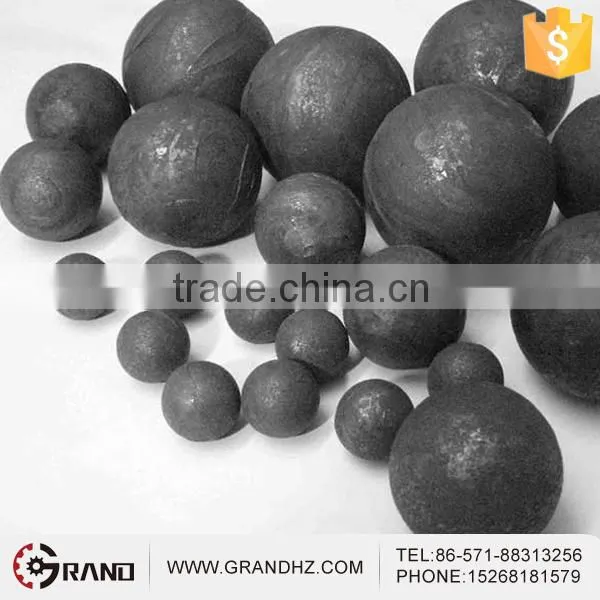

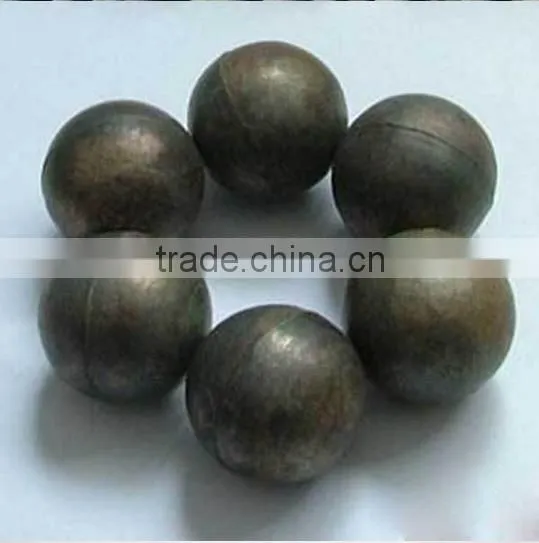

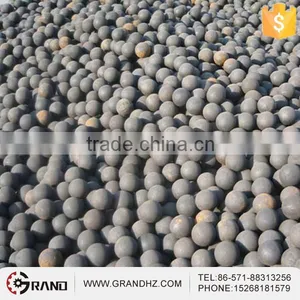

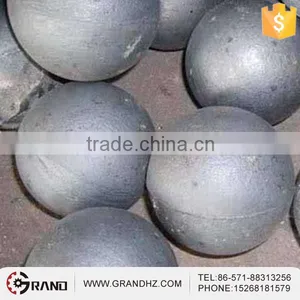

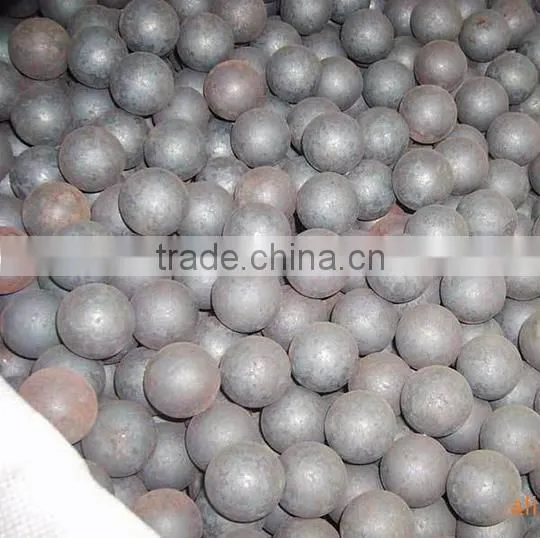

Forged Grinding steel Ball Cast steel Balls
We are the professional industrial equipment parts supplier, our factory has engaged in domestic trade over 25years. And also welcome to vist us.
we manufacture all kinds of parts such as large gear,small gear,Riding rings(split ring/segment ring ),support roller,shaft,hollow shaft,sphercial bush,impeller for power plant,couple bearing,roller mill,grinding tools,crusher,reducer,belt conveyer ,steel ball etc.
OEM and customzied is also accepted.Our product is widely sold in the word.Welcome to contact with us .
Hope we would build a good and long business cooperation relationship with each other.
Casting Grinding Steel Ball is made from well-matched scrap iron and ferrochromium, heated by medium frequency electric furnace and smelted into molten iron. When the temperature of molten iron reaches into 1500°C, then pouring it into ball mould. Casting Ball is formed. Then use Sand Slinger to do Surface Treatment for Casting Balls. Last, heat treatment of casting ball. Feed the Oil Quenching Production Line with casting balls, and heated up to 960°C. Keep casting balls in the machine for 6 hours. Once finished heating, then put the balls into special quenchant(a kind of quenching liquid). Keep the Balls fully sink into the quenchant for 10 minutes. Grinding Steel Ball with the above manufacturing process is called Casting Grinding Steel Ball.
Wear Resistant Steel Ball 65Mn Chrome Alloyed Casting Grinding Steel Ball
The matrix of nodular iron is changed through isothermal quenching. It embodies high strength, super high toughness and wear-resistance. It has been widely applied in mining industry and is fit for mill.
Chemical Elements (%)
|
C |
Si |
Mn |
P≤ |
S≤ |
Cr≤ |
Ni≤ |
Cu≤ |
65Mn |
0.62~0.70 |
0.17~0.37 |
0.90~1.20 |
0.035 |
0.035 |
0.25 |
0.25 |
0.25 |
Specification(GB8649 Standard:)
Nominal Diameter |
Theoretical Diameter |
Theoretical weight |
Surface hardness |
Core part hardness |
(mm) |
(mm) |
(kg/pcs) |
(HRC) |
(HRC) |
20 |
20.8 |
0.037 |
63-65 |
60-63 |
25 |
28.0 |
0.072 |
||
30 |
31.2 |
0.125 |
||
35 |
36.4 |
0.198 |
61-64 |
60-63 |
40 |
41.6 |
0.296 |
||
45 |
46.8 |
0.421 |
||
50 |
52.0 |
0.578 |
||
55 |
57.2 |
0.769 |
||
60 |
62.4 |
0.999 |
||
65 |
67.6 |
1.270 |
60-63 |
59-62 |
70 |
72.8 |
1.586 |
||
75 |
78.0 |
1.951 |
||
80 |
83.2 |
2.367 |
1.Our factory has professional and experienced designers and workers and advanced equipments
2.OEM is accepted and package according to customer's requirement
3.Stricty quality control and comprehensive after-sale service.
4.Reasonable price and prompt delivery
