Specifications
Tungsten Carbide Blades of Needle Holder1 Wholesale with cheap price
2 High Quality of each product
3 ISO9001-2008

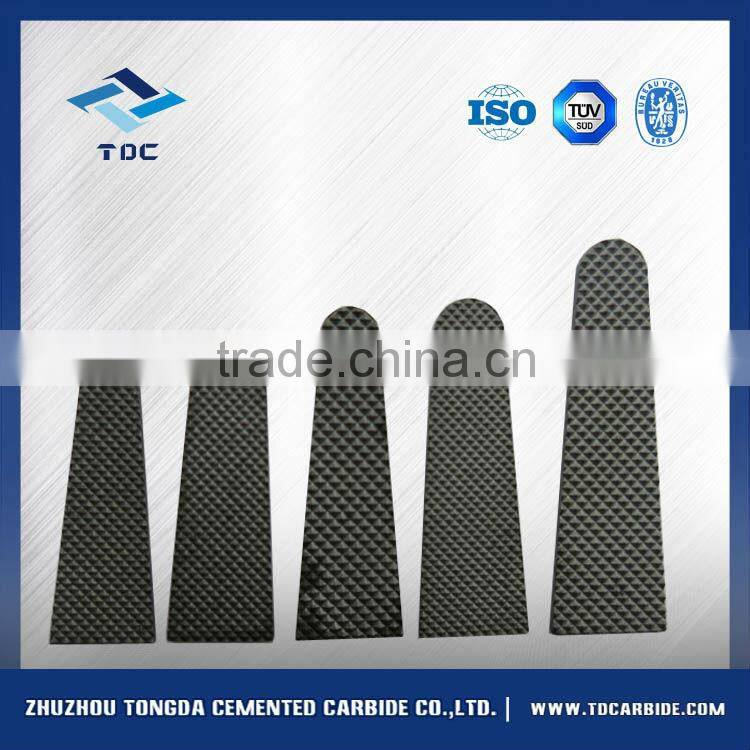

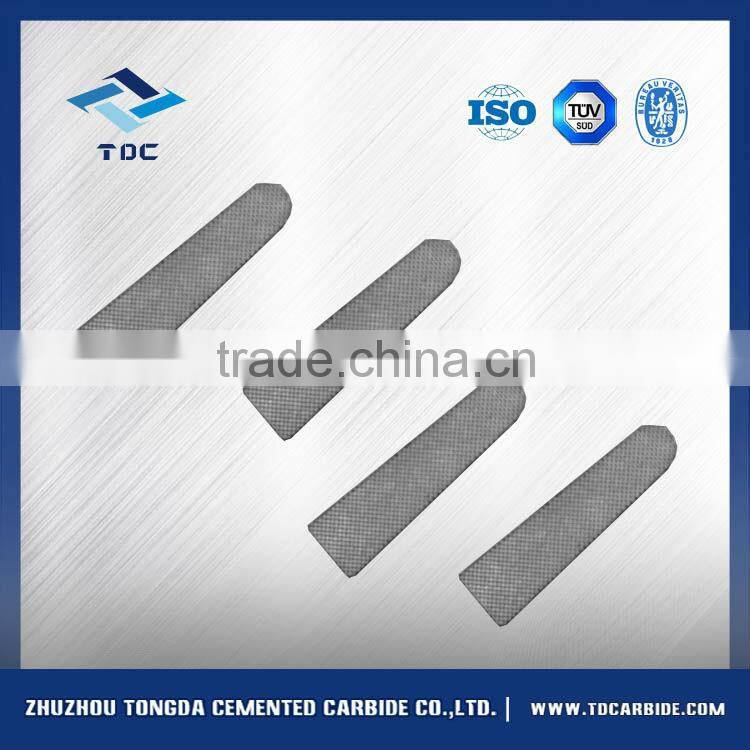

Tungsten Carbide Blades of Needle Holder
Specification
1.Professionl manufacturer for tungsten carbide items with more than 10 years experience
2.ISO 9001-2008 Quality Control System
3.OEM, ODM project accepted

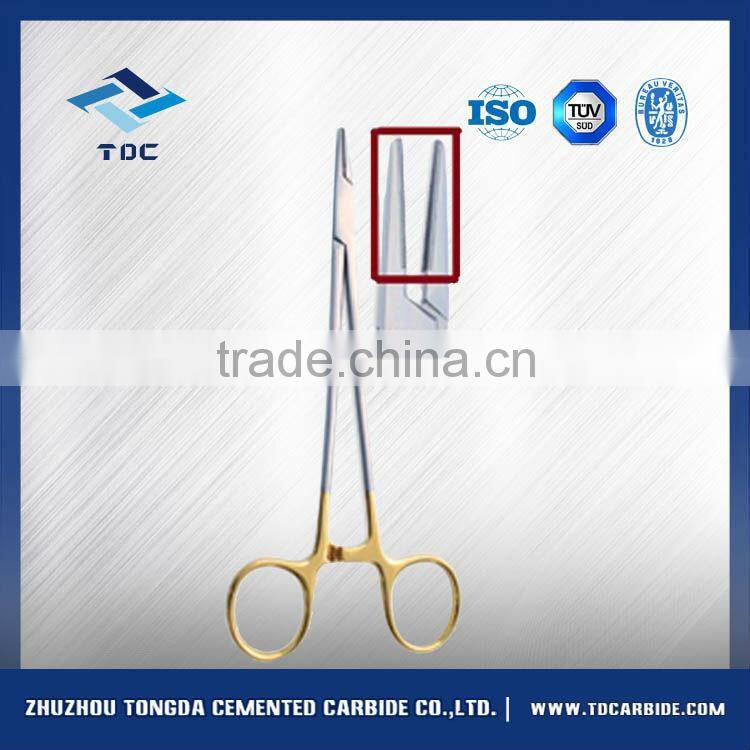

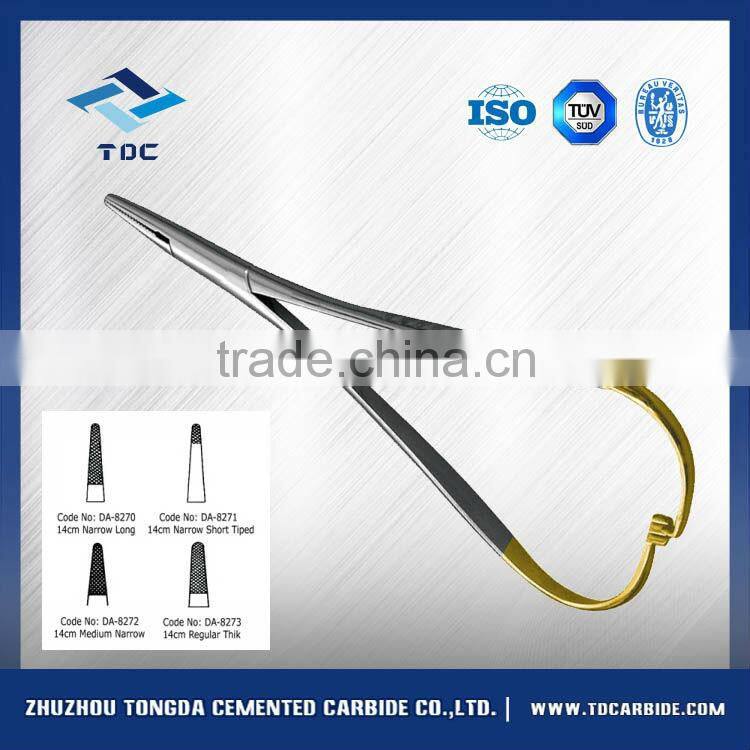

Tungsten Carbide Blades of Needle Holder
Medicon Surgical Needleholders are high quality and available in a range to suit your operating needs. Needle holders can be used for various surgical procedures.
Advantages:
1, Concise, sharp cut
2, High economy
3, Long life duration
Features
Recognized for its hardness and resistance to wear Tungsten Carbide has a compressive strength higher than virtually all melted, cast, or forged metals and alloys.
Very precise points on the teeth are an advantage with our inserts because no finishing is required such as pressing or heat-treating.
Cobalt or Nickel binders increase the hardness and durability of Tungsten Carbide.
Anti corrosive characteristics are a key strength of Tungsten Carbide as compared to alternate metals and alloys.
No sub-surface stresses induced to the tungsten carbide inserts when the creep-feed grinding process takes place as the carbide is already in its hardened state.
Resistance to wear from, cratering, pitting, and warpage brought on by repeated use and environmental conditions are greater when proper decontamination care is used.
Pictures show
Detailed pictures

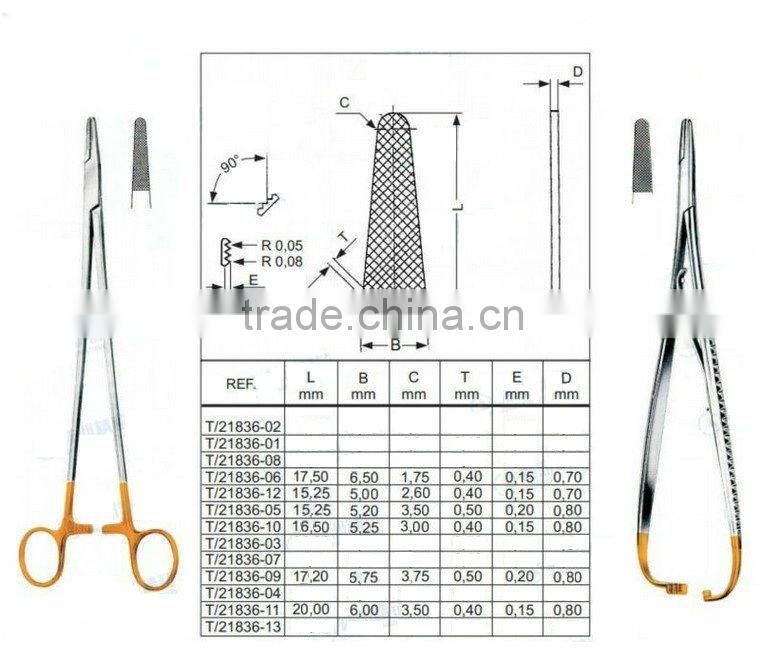

Size of Product

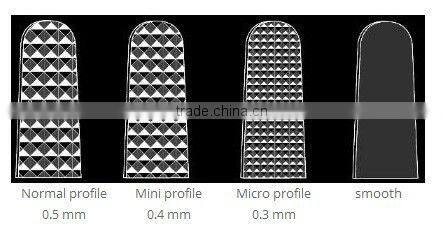

Size of Teeth
Regular: 0.5mm for use with sutures up to size 4-0
Fine: 0.4mm for delicate needles and suture sizes 5-0 and 6-0
Extra Fine: 0.3mm for use with micro needles and sutures up to size 10-0
Smooth: For delicate needles and suture sizes 7-0 and 10-0
Grade information
Grade |
Density g/cm3 |
Hardness HRA(hv) |
T.R.S(M Pa) |
Performances &applications recommended |
YG6 |
14.9 |
89.5 |
2150 |
Good Wear resistance, used for hard wood, processing original wood, aluminum section bar, brass rod and cast iron. |
Zhuzhou Tongda Cemented Carbide Works
Brief Introduction
Zhuzhou TongDa Cemented Carbide Works specialize in the production of bespoke Tungsten Carbide Hard Metal Wear Resistant Products for use across a wide range of industrial applications in both the as-sintered and finished ground condition.
Established in 2001 Zhuzhou TongDa Cemented Carbide Works are offering customers recommendations and solutions for individual wear resistant components and special tooling requirements.
Zhuzhou TongDa Cemented Carbide Works produce an extensive range of tungsten carbide grades in-house including the popular ISO application grades of K10, K20, K30, K40, P10, P20 & P30/40 as well as numerous special Cobalt and also Nickel binder tungsten carbide grades for use in corrosive resistant applications.
Material compositions including submicron, medium and coarse grain grades are available and can be supplied in cylindrical and flat section in both the as-sintered and finished ground condition.
The tungsten carbide grade powders are processed in-house using quality raw materials to ensure a high product quality is maintained. Individual items and volume production components can be produced by either pre-shaping or automatic press tooling.
Inhouse facilities include a comprehensive grinding shop plus EDM wire cutting and spark erosion as well as the capacity to offer tungsten carbide components mechanically retained into premachined steel housings and casings by interference fitting, induction & gas brazing or using adhesive bonding.
Production Process
Certificate
Payment and Shippment way
PRODUCTS RANGE
l Rods & Endmill
l Stripes & Plates
l cutting tools
l Ring & Roller
l Solutions for Polyolefins Industry
l Application in Coating Industry
l Wear parts of Concrete Pump
l Products for mining industry
l Other Customized Items
l Tungsten Heavy Alloy
We are able to supply it with competitive price in bulk quantity. Any interesting please
contact me for more detail!
