phased array probe touch screen color doppler software 3d ultrasound

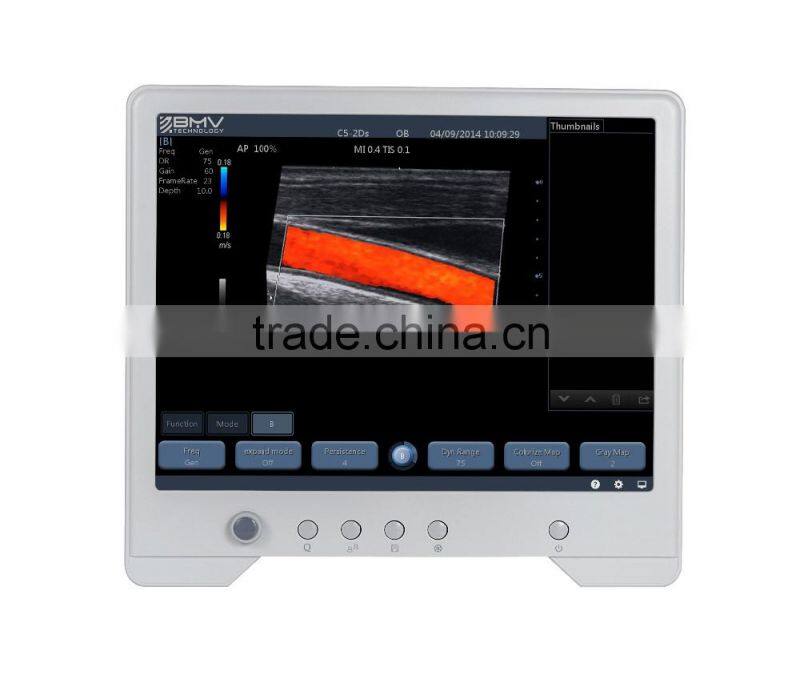

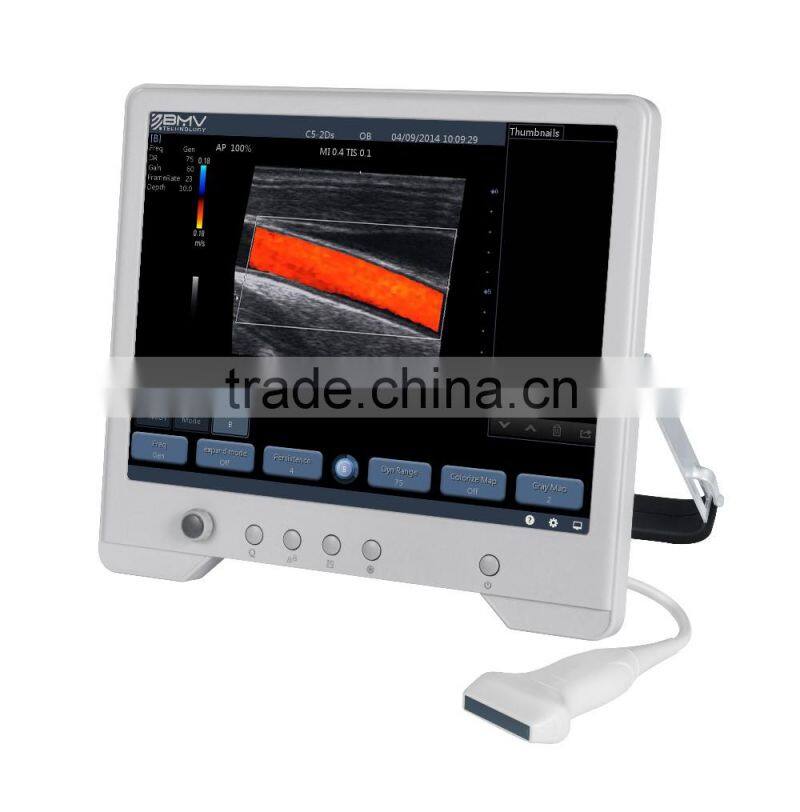

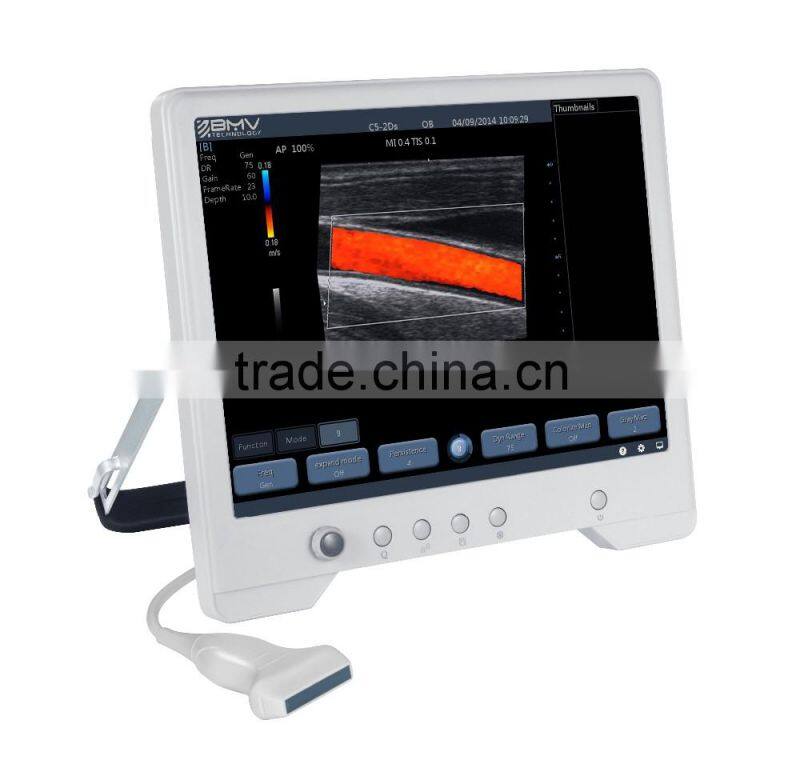

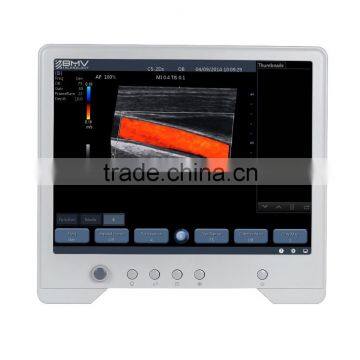

TouchScan 30
Deliver Excellence Wherever you Go
Featuring the latest in advanced imaging technology all incorporated in a compact hardware,the new touchscan30 color dopper system is the perfect choice for physicians and sonographers who want to deliver excellence in clinical efficiency and patient care wherever they go.
Standard Configurations
Touchscan 30 color main unit
15 inch LCD with high resolution:1024*768
Touchscreen
Two USB ports
One s-video out port
One networking port
One power inlet
One convex probe (3.5M R60)
Three transducer connectors
Plenty of measurement &calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
Optional
Probes:
3.5MHz convex probe (R60)
7.5MHz linear probe (L40)
6.5MHz transvaginal/transrectal probe (R13)
3.5MHz micro-convex probe (R20)
3.5MHz micro-convex probe (R15)
Power supply:
AC power supply system,
Built-in Lithium battery power supply system
Probes:
l Convex Probe
1)C35-6
Applications: Abdomen, OB , GYN
Center Frequency:3.5Mhz
2) C50-2 Micro-Convex
Applications: Abdomen, OB , GYN
Center Frequency:5.0Mhz
3)C65-15 Micro-Convex
Applications: Abdomen, OB , GYN
Center Frequency:6.5Mhz
Phased Array Probe
Applications: Cardiac, Abdomen, TCD, Emergency
Center Frequency:
Linear Probes
Applications: Musculoskeletal,small parts, vascular ,nerve block
Center Frequency:7.5Mhz
Trans-vaginal/Trans-rectal probe
Applications: Vaginal, Rectal
Center Frequency:6.5 Mhz
Technical Specification
B&W mode: B,M,2B,B/M,4B,C,PW, Power,Dir-Power,THI
Gray sacle: 256
Display: 15”LCD Full Touchscreen monitor
Transducer frequency: 2-11Mhz
| Cine-loop | 334 frame cine loop memory |
| USB ports | 2 |
| Zoom | Pan zoom for the active image |
| Amplification | 10 times |
| THI | Tissue Harmonic Imaging |
| B-opt | One-key Optimize |
| Multi language | Supported |
| DICOM | DICOM3.0 |
| Report print for text&graph&image | |
| B mode | Distance,angle,area,volume,trace length, |
| M mode | Distance,time,slope,Heart Rate |
| Software package | Abdomen,obstetric,Gynecology,Cadiac,Neural and Small Parts |
| Transducer connector | 3 active transducer connector ports |
| Peripheral ports | Video,2 USB ports,1 networking port,1 power inlet |
| Power supply | 100-240V~ 50/60Hz <100VA |
| Net weight | About 3.0kg |
| Gross weight | About 4.5kg |
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
