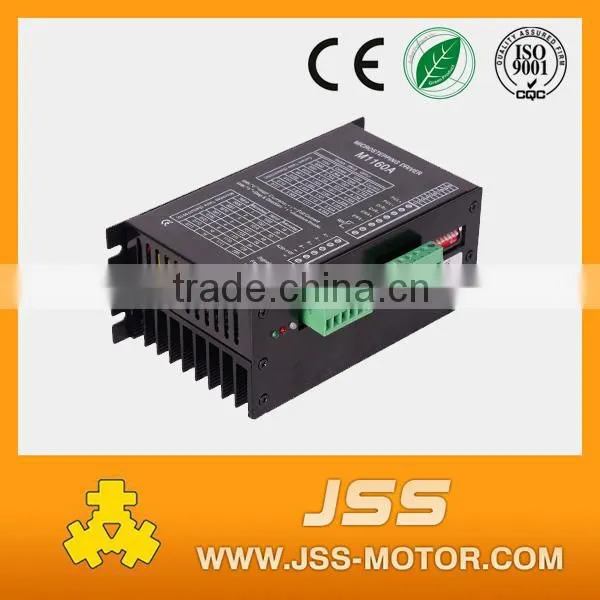

2-Phase Hybrid Stepper Motor Driver
M1160A
Features :
1. Using brand new imported chips,adoption of bipolar constant-current chopper technology
2. Low-noise, low-vibration and low temperature rising
3. Voltage 80-110VAC
4. With 16 stalls output current setting, peak current 6.0A
5. With 16 stalls microstep subdivision setting
6. Automatic half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequency response 200KHZ.
8. Suitable for current 0.38-6.0A 2,4-phase nema 34,nema 42 Hybird stepper motor
Current Selection :
| Current | SW1 | SW2 | SW3 | SW4 |
| 0.38A | 0 | 0 | 0 | 0 |
| 0.75A | 0 | 0 | 0 | 1 |
| 1.13A | 0 | 0 | 1 | 0 |
| 1.50A | 0 | 0 | 1 | 1 |
| 1.88A | 0 | 1 | 0 | 0 |
| 2.25A | 0 | 1 | 0 | 1 |
| 2.63A | 0 | 1 | 1 | 0 |
| 3.00A | 0 | 1 | 1 | 1 |
| 3.38A | 1 | 0 | 0 | 0 |
| 3.75A | 1 | 0 | 0 | 1 |
| 4.13A | 1 | 0 | 1 | 0 |
| 4.50A | 1 | 0 | 1 | 1 |
| 4.88A | 1 | 1 | 0 | 0 |
| 5.25A | 1 | 1 | 0 | 1 |
| 5.63A | 1 | 1 | 1 | 0 |
| 6.00A | 1 | 1 | 1 | 1 |
Microstep Selection :
| Pulse/Rev | SW7 | SW8 | SW9 | SW10 |
| 1 | 0 | 0 | 0 | 0 |
| 2 | 0 | 0 | 0 | 1 |
| 4 | 0 | 0 | 1 | 0 |
| 5 | 0 | 0 | 1 | 1 |
| 6 | 0 | 1 | 0 | 0 |
| 8 | 0 | 1 | 0 | 1 |
| 10 | 0 | 1 | 1 | 0 |
| 16 | 0 | 1 | 1 | 1 |
| 18 | 1 | 0 | 0 | 0 |
| 20 | 1 | 0 | 0 | 1 |
| 32 | 1 | 0 | 1 | 0 |
| 40 | 1 | 0 | 1 | 1 |
| 50 | 1 | 1 | 0 | 0 |
| 64 | 1 | 1 | 0 | 1 |
| 128 | 1 | 1 | 1 | 0 |
| 256 | 1 | 1 | 1 | 1 |
Dimensions (mm) :
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.
2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C
3. We can provide you professional technical support. And our products quality gurantee is 18 months.
4. We accept products customize.
