Specifications
tungsten carbide die mould1Produce relatived products with good quality
2OEM,ODM was accepted
3ISO9001-200
| customized tungsten carbide die mould |
| 1. Product Description |
| Description of tungsten carbide die mould |
|
| Why Choose Us? |
|

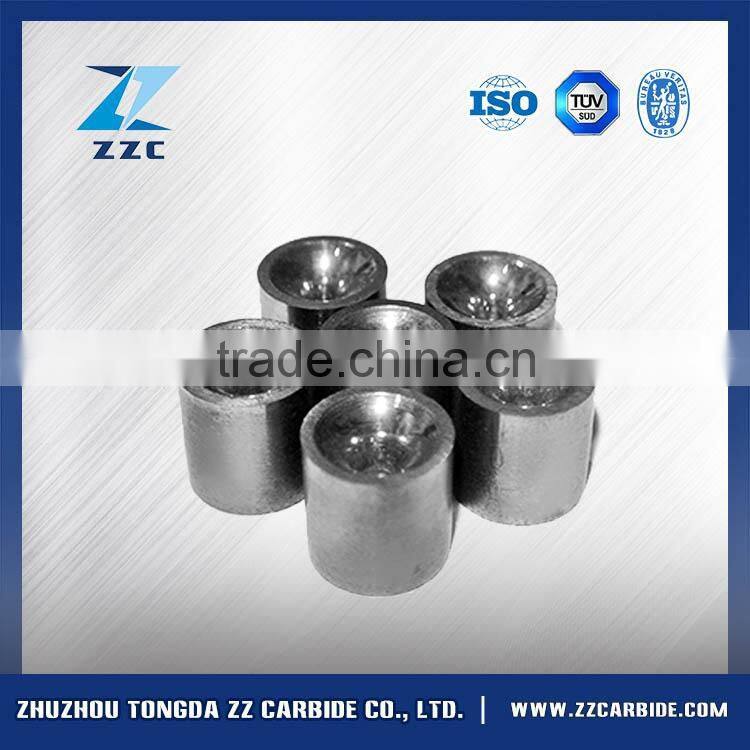

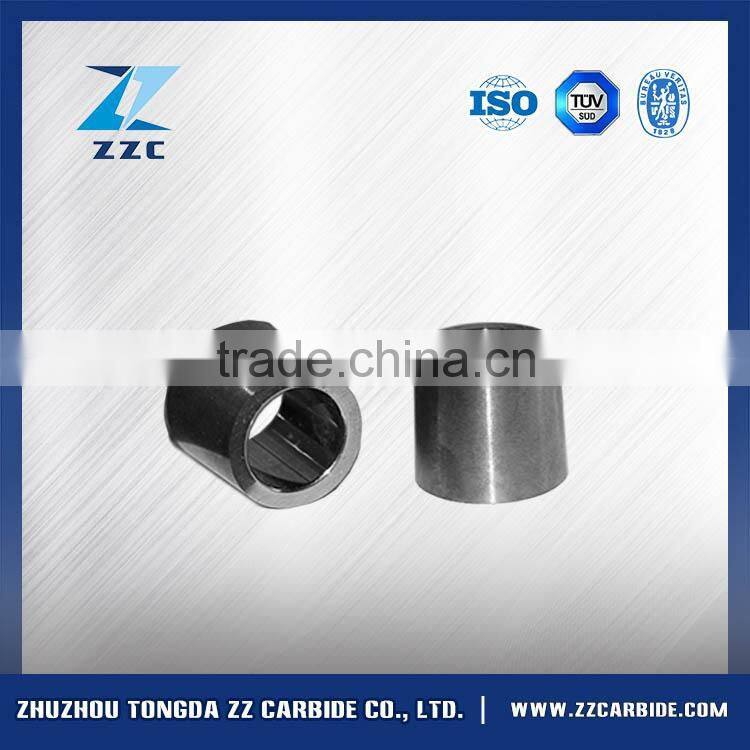

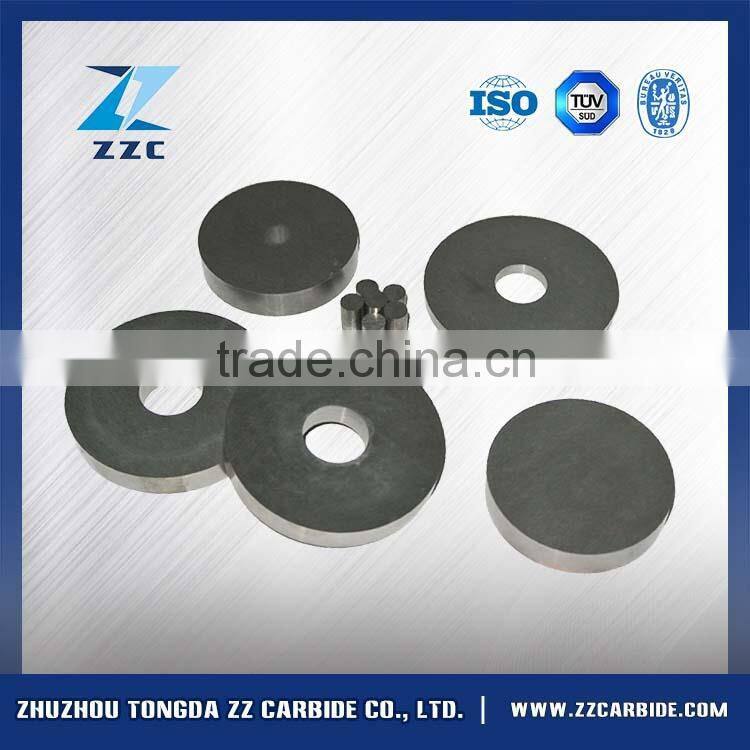

| Clear Photos of tungsten carbide die mould |

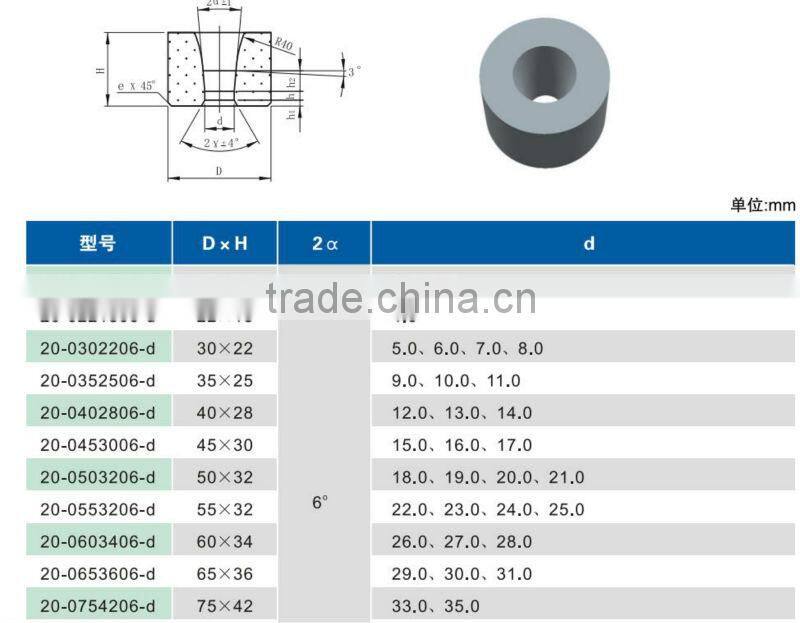

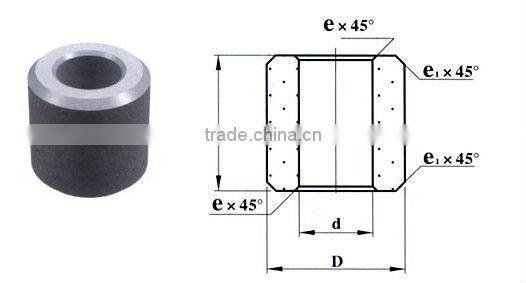

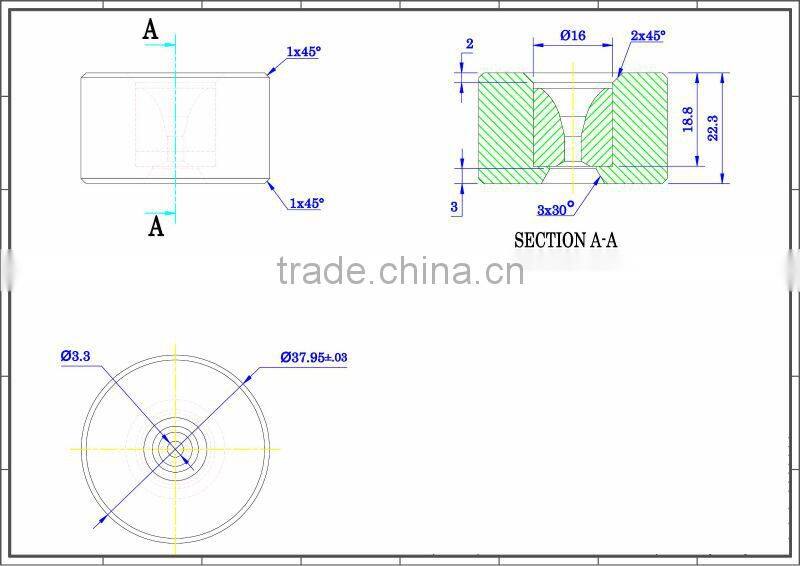

Drawings
Grade information
Grade |
Density (g/cm3) |
Hardness (HRA) |
T.R.S (MPa) |
Applications recommended |
YG6X |
14.95 |
91.5 |
1800 |
For drawing steel and nonferrous wires or bars of less than diameter 6.00mm under not so much stress. |
YG6 |
14.95 |
90.5 |
1900 |
For drawing steel, nonferrous alloy bars of less than diameter20.00mm under more stress and also for drawing tubes of less than diameter 10.00mm. |
YG8 |
14.8 |
89.5 |
2200 |
For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts. |
YG10 |
14.5 |
88.5 |
2400 |
|
YG15 |
14.0 |
87.0 |
2800 |
For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting. |
Catalogue
| 2. Our Service |
1. Free sample is availabe
♦ We can send you some of our products for you reference which is free.
2. OEM & ODM service
♦ You give us your requirements and specifications and we can make the product as you required.
♦ We can also help you to design the products.
3. Good After-sale Service
♦ We guarantee that all the products we send out are qualified products, if there is any quality problem we'll remake them for you.
4. Good On-line Service
♦ If you have any question, please feel free to contact us, we'll answer to you as soon as possible.
| 3. Company Information |
Zhuzhou Tongda Cemented Carbide Works is a professional large scale manufacturer of many types of cemented carbide products, integrating development and production together. Which was established in 2001, specialized in none-standard cemented carbide products and some standard cemented carbide products including saw blades, carbide tips, carbide rolls, carbide strips, carbide rods, special carbide products etc.
Through the efforts of our entire staff, we've become a strong cemented carbide manufacuter, Tongda people have continuously tried to improve product quality, using advanced equipment spray drying tower automatic press, dewaxing-vacuum sintering integrated furnace to produce. And we have attained ISO 9001 certification.
| 4. Packaging & Shipping |
| 5. Contact us |
