NEMA 34 Stepper Motor
Specification :
| Item | Specifications |
| Step Angel | 1.2° |
| Temperature Rise | 80℃Max |
| Ambient Temperature | -20℃Max~+50℃ |
| Insulation Resisitance | 100M ΩMin,.500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max(450g-load) |
| Max.Radial Force | 220N(20mm from th flange) |
| Max.Axial Force | 60N |
NAMA 34 3-Phase Hybrid Stepper Motor :
| Model No |
Step Angle (°) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) | Holding Torque (Kg.cm) |
Detent Torque (g.cm) |
Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. |
Motor Weight (Kg) |
| 86HC67-1756 | 1.2 | 7.4 | 1.75 | 4.25 | 12.3 | 22.6 | 1000 | 1100 | 67 | 6 | 1.9 |
| 86HC97-2006 | 1.2 | 10.8 | 2 | 5.4 | 23 | 43 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC97-5806 | 1.2 | 5.2 | 5.8 | 0.9 | 3.2 | 46 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC97-5206 | 1.2 | 6.2 | 5.2 | 1.2 | 5.2 | 45 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC127-2256 | 1.2 | 20.3 | 2.25 | 9 | 41 | 65 | 3000 | 2700 | 127 | 6 | 4.3 |
| 86HC127-5206 | 1.2 | 14.3 | 5.2 | 2.75 | 13.7 | 67 | 3000 | 2700 | 127 | 6 | 4.3 |
| 86HC150-5006 | 1.2 | 7.5 | 5 | 1.5 | 3 | 70 | 3600 | 4700 | 150 | 6 | 4.6 |
Above only for representative products,products of special request can be made according to the customer request.
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.
2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C
3. We can provide you professional technical support. And our products quality gurantee is 18 months.
4. We accept products customize.
Our main products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And by now we have new products about closed loop systems for nema 23, nema 24 and nema 34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.

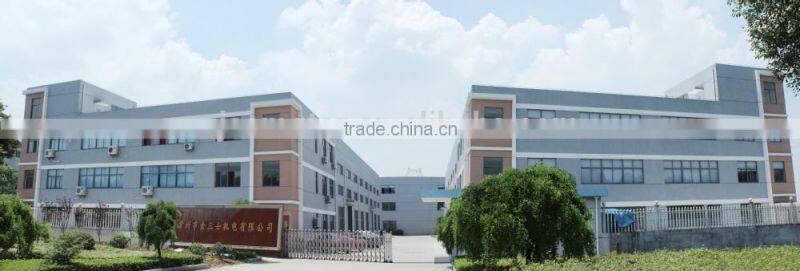

Company show :
The Exhibitions :
Our Team :
Certification :
More Information for Customers:
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
