Welcome to inquiry MINGDA router cnc
Manufacturer price MINGDA router cnc engraving machine / wood cnc machine
Model |
3040 |
Dimension |
670x510x435mm |
Work area |
570x360x15mm |
X,Y,Z axis woking travel |
300x400x90mm |
The Max thickness of Carved objects |
120mm |
Rack material |
6061Aluminum alloy |
Transmission unit |
X ,Y,Z axis is 1404 T Screw |
Sliding unit |
X:Φ16, Y:Φ16, Z:Φ12 |
water-cooled spindle | |
Consumption |
DC110V~220V,800W |
Spindle Power |
800W/AC220, SCM stepless speed regulation |
Speed (r/pm) |
0-24000 |
Clamping diameter |
3.175mm |
Cooling way |
Water cooled |
feeding speed max(mm/min) |
3000 |
Carving speed(mm/min) |
50~3000 |
Carving accuracy |
0.03mm |
Repositioning Accuracy (mm) |
0.03mm |
Input voltage |
220V or 110V |
Instruction format |
G code (tab, nc, ncc, txt) |
Compatible software |
Mach3/TYPE3/ArtCAM/CAD/CAM etc |
Introduction of MINGDA router cnc
This CNC3040 series item is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
It is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc.
So you can do engraving work at office or home. In addition, it can be upgraded to be installed a rotational axis.
Application of MINGDA router cnc
The Computerized CNC Engraving and Cutting Machine is suitable for various materials,
such as Jewelry, stone, marble, crystal board, Acrylic, aluminum, copper, WOOD, PMMA or other plastic, MDF board etc.
Mingda series CNC engraving machine has been widely applied in woodworking, electronics, advertisement, mould, Handicraft industry, art etc.

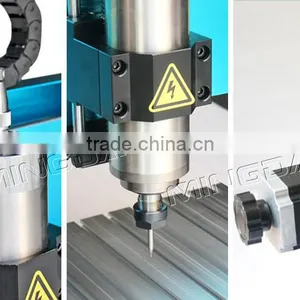

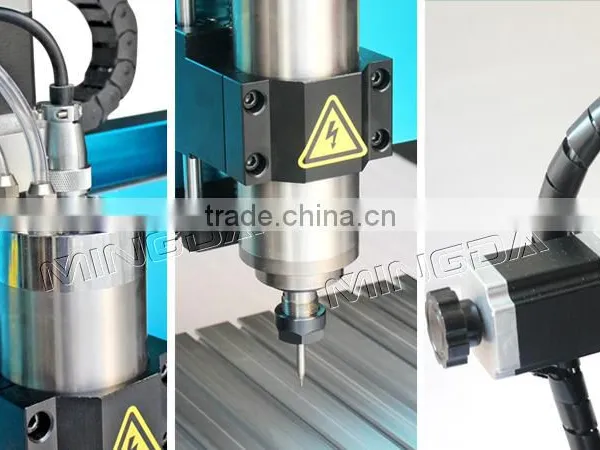

Details of MINGDA router cnc
Controller box-- MINGDA router cnc
4 axis--MINGDA Desktop router cnc
Finished products display of MINGDA Desktop router cnc
Desktop router cnc --Hard wood carving machine
Desktop router cnc --Metal carving machine
Desktop router cnc --Other wonderful carving works
Package and Packing list of Desktop router cnc
1pcs engraving machine
1pcs controller box with invertor installed in it
1pcs 800W spindle
1pcs parallel cable
1pcs power cable
6pcs engraving bit
1set of clamp tool
One year warranty and lifelong maintenance
During the warranty we will exchange the problematic parts for you freely, and we provide technical supports when you use this wonderful engraving machine!
Shenzhen Mingda Technology Co., Ltd is the professional research and development professional research and development production of CNC engraving machine and cutting Machine.
This machine is suitable for industry ,Technology Research, Advertising Design, Arts Creation, Building Model Making ,PCB, Teaching, Student Project and Hobby Purposes, Aircraft Models, RC Model parts, etc.
So, you can do engraving work at office or home. In addition, it can be upgraded to be installed a rotational axis.
Q1: What certificates do you have?
A:Since Europe and America are our main markets, all of our products are with CE /FCC compliant.For some models, the certificates are already available. For other models, we will need your assistance to apply the certificates
Q2: Can you put my brand name (logo) on these products?
A: Yes, of course. OEM service is the most important part of our trade purpose.
Q3: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service. The OEM cost is already included in our prices.
Q4: What payment method do you accept?
A: T/T, Western Union, PayPal, .L/C, D/A, etc
Q5: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: 50-100 pcs per model.
Q6: What is the lead time of your products? (How long do you need to prepare my goods?)
A:1-3 days for sample orders. 10-20 days for mass production orders (based on different quantities).
Q7: How will you deliver my goods to me?
A: We always ship by air and sea. In the mean time, we cooperate with international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q8: How long do I need to wait before my goods arrive?
A: 5-7 days for air transportation, 3-5 days for international express. 20-40 days for sea transportation.
