Specifications
cnc router wood300*400mm size
2400rph speed
Water cooling
For stone, metal, crystal, wood
2014 Factory direct sale cnc router wood for mini
300*400*90mm travelling range +24000rph speed + 0.03mm accuracy
Description of this CNC router machine

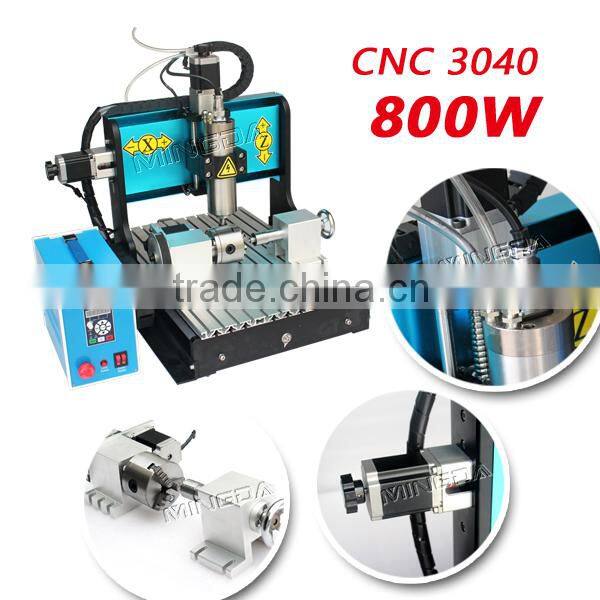

This CNC3040 series item is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. It is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So you can do engraving work at office or home. In addition, it can be upgraded to be installed a rotational axis.
Specifications of this CNC router machine
Model |
3040 |
Dimension |
670×510×435mm |
Work area |
600×360 |
X,Y,Z axis woking travel |
300x400x90mm |
The Max thickness of Carved objects |
90mm |
Rack material |
6061Aluminum alloy |
Transmission unit |
X ,Y,Z axis is 1404 T Screw |
Sliding unit |
X:Φ16,Y:Φ16,Z:Φ12 |
water-cooled spindle | |
Consumption |
DC110V~220V,800W |
Spindle Power |
800W/AC220, SCM stepless speed regulation |
Speed (r/pm) |
0-24000 |
Clamping diameter |
3.175mm |
Cooling way |
Water cooled |
feeding speed max(mm/min) |
3000 |
Carving speed(mm/min) |
50~3000 |
Carving accuracy |
0.03mm |
Repositioning Accuracy(mm) |
0.03mm |
Input voltage |
220V or 110V |
Instruction format |
G code (tap, nc, ncc, text) |
Compatible software |
Mach3/TYPE3/ArtCAM/CAD/CAM etc |
Application of Mingda Series CNC router machine
The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as Jewelry, stone, marble, crystal board, Acrylic, alumium, copper, WOOD, PMMA or other plastic, MDF board etc.
Mingda series CNC engraving machine has been widely applied in woodworking, electronics, advertisement, mould, Handicraft industry, art etc.
Details of this CNC router machine
1. Our CNC router machine takes 57 3A stepper motor
2. This CNC router is of water cooling
3. This CNC router machine takes SFU1605 ball screw
4.This CNC router machine controlled by high precision control box
Working samples by this CNC router machine
Notes when installation.
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the MACH 3 on your computer.
4.Connecting the control box with the CNC machine and your computer.
5.Following our manual or guideline to set up the software.
6.You can enjoy making you dream with using our CNC machine now.

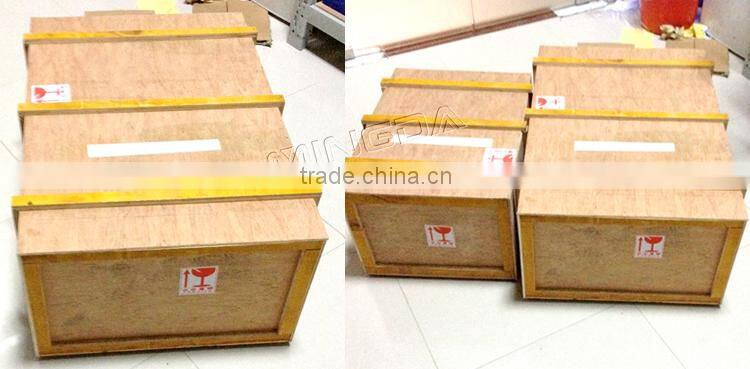

Packaging Details:

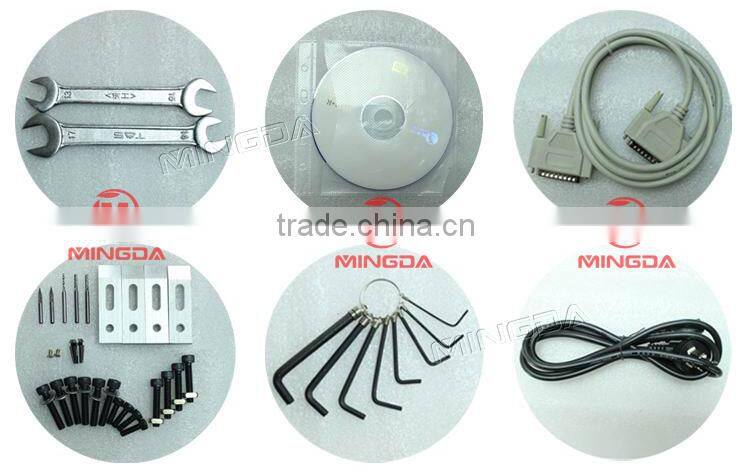

Accessories that will ship together with the package
We can also all type of drilling bits, and 4th/ 5th axis for this CNC engraving machine
About our MINGDA
Mingda Technology is one of leading manufactures of CNC machine in China, with strong technique group. OEM and customize service is available. Welcome for your enquiry!
We can provide different size/ Power items, please kindly advise the matetial you want to work with when inquiry, so we can recommend you best suitable model.
.
Payment way and delivery policy of this 3D printer
We accept payment by TT, Western Union and Pay pal.
We will arrange delivery within 3 days after payment confirmed.
Services:
1. 24hr Online Customer service, please e-mail/QQ/skype us ( Please contact us anytime!)
2. Attend and hold Exhibitions, we attach great importance to promote the CNC router machine. .
3. In many cases, we won't let shipping cost becomes a burden to you.
Factory direct sale cnc router wood for mini
