Prefessoinal companies to provide integrated solution to 3d printing technology
Matched with most of the 3d printer in the market.
Can be workable with the size no smaller than 20*20*20cm objects
Mini 3d scanner ,which can be taken with you anywhere you go.
VGA Depth Image: 640 x 480 (VGA) [pixel x pixel]
MINGDA 3D scanner , 3D Laser Scanner Price, 3D body scanner
Description of mingda 3D scanner
This high precision 3D scanner has 3 cameras, the middle one is the RGB camera which is for capturing the pictures 640*480 ,30 frames of image per second at least, the other two on the different sides are depth sensor, the left one is the infrared emitter, the right one is the infrared receiver, which is for detecting the relative position of the object.
Features of mingda 3D scanner
1.Super anti-jamming capability( eg. easily deal with black hair, light fabrics and reflective surfaces )
2.Not need to mark on the scanned people and objects or spray imaging agent.
3.Not need auxiliary splicing tools, this 3D scanner is automatic splicing
4.High speed scanning ,real-time data to generate the three-dimensional data and files.
5.Large scanning range(Size of the scanned object is better larger than 20*20*20cm ),the scanned objects can be stuffed toys, statues, real people(no harm to body), machine parts ,automobiles, furniture and even the room layout.
6.Support 24-bit full-color scanning
7.Laptop scanning, more convenient
8.Not able for the mirror and the transparent objects
Advantage of mingda 3D scanner
1. High Speed: The maximum scanning speed of up to 600000 points per second, XHCV portable 3D scanner ten times faster than ordinary scanner speed.
2. Large scan range: Can scan 1 cubic meters to tens of meters wide range of objects.
3. The scanning of moving objects: Because the portable 3D scanner and camera work similar, so it can not only scan the static objects, but also can scan dynamic objects. Especially suitable for obtaining medical human action and film production in the dynamic facial expressions.
4. Color 3D scanning: This portable 3D scanner can capture the bright colors (24 bit color), which can be scanned 3D shape and capture the object at the same time color.
Detail pictures about MINGDA 3D scanner
mingda handheld 3D scanner
Package about mingda 3d scanner

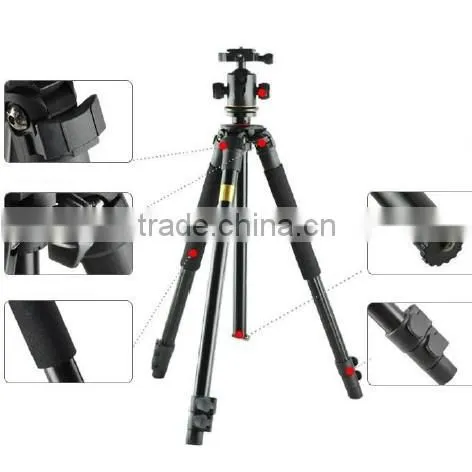

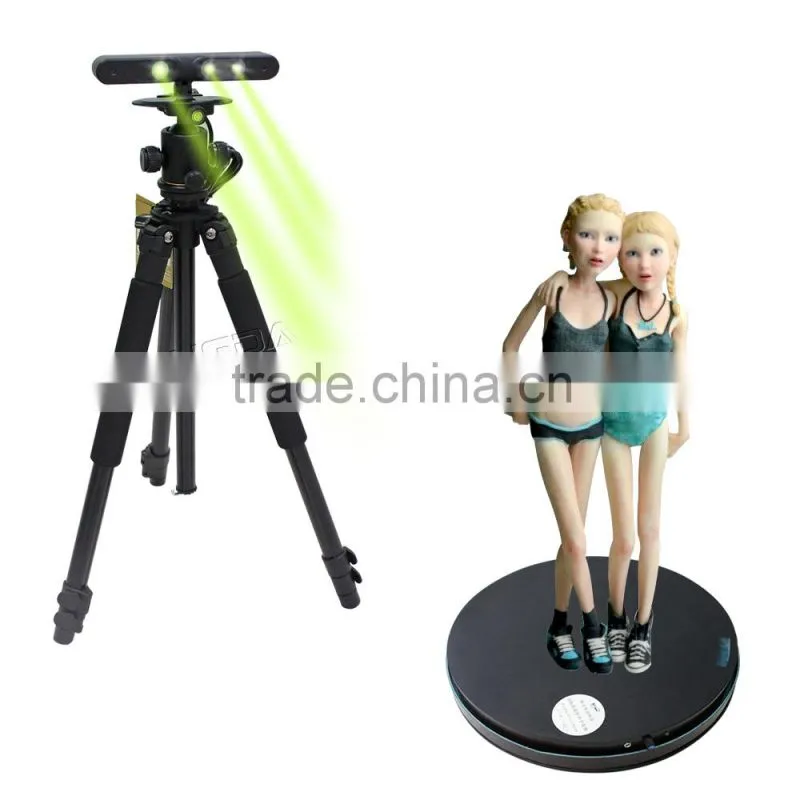

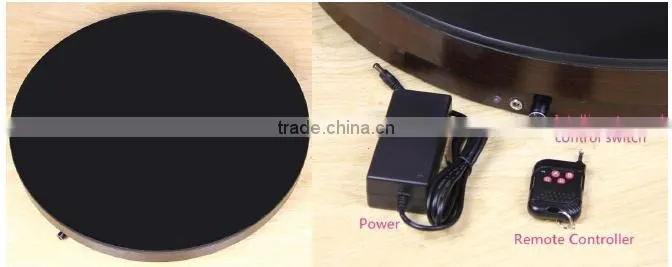

Rotary table and stand for mingda 3D scanner

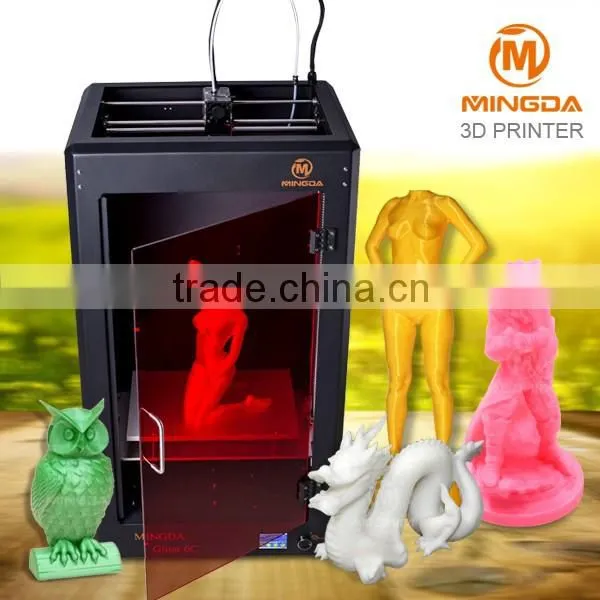

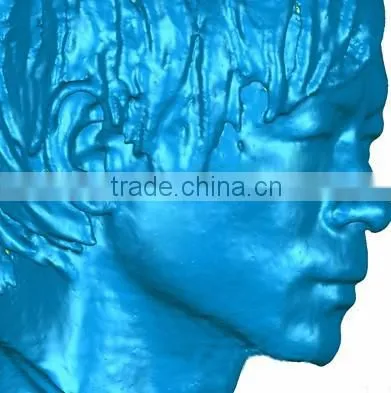

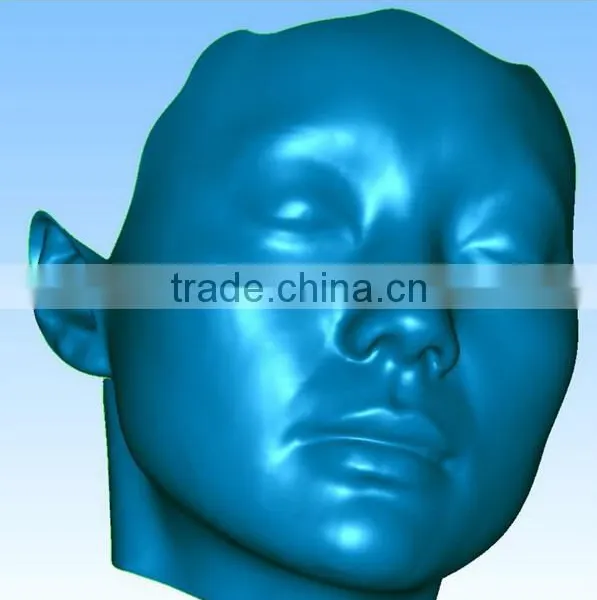

3D printing work by mingda 3d scanner and mingda Glitar 6c 3d printer
Remarks: All these 3d scanner works printed by Mingda 3d printer, so if you would like to buy a mingda 3d printer you will have better 3d experiences.
Mingda 3d printer has got gloable appreciation for it's advantage:
1. Full metal struture frame , highly guarantee the printing effect
2.Dual ball screws for Z axis on both sides, Fastened Z axis motor to make the layer thickness more precise,.
3. High-end stainless steel body and LED light, a sense of fashion and technology.
5.Enclosed chamber, insulating temperature, reducing external interference and warp of print.
5.Hightemperature resistant aviation aluminum plate, 10mm in thickness heating equally; with a highstrength support base to keep the plate stable and leveled; no need calibration, easy to use.
6. Big build volume 300*200*600mm
8. 1.75mm extruder, suitable for more material.(Nozzle temperature can reach 260 degree)
9. Cooling fan above nozzle, making the PLA filament cool faster reducing filament pending.
10. 4 arc round corner for mingda 3d printer, which greatly reduce the damage about this machine.

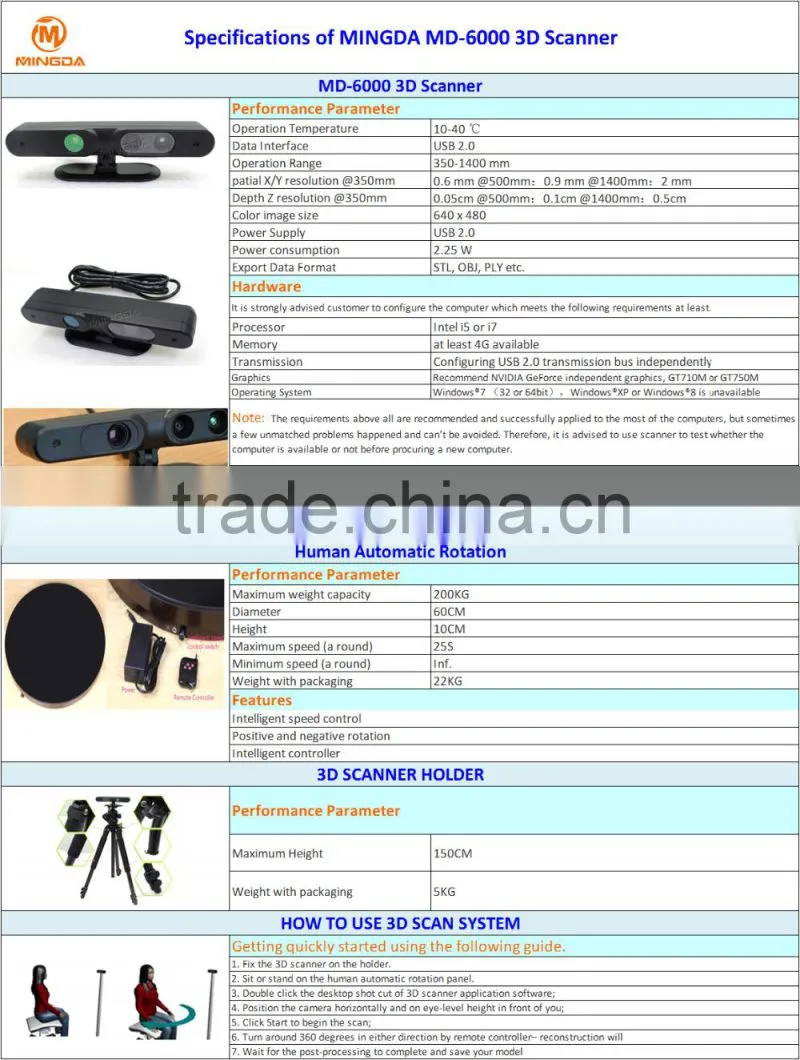

Hardware parameters of mingda 3D scanner and mingda Glitar series 3d printers
Product dimension |
18cmx2.5cmx3.5cm |
Operating Temperature |
10-40 ℃ |
Data Interface |
USB 2.0 |
Operation Range |
350-1400 mm |
Spatial x/y Resolution @500mm |
1 mm |
Depth Z Resolution @500mm |
<1mm |
VGA Depth Image |
640 x 480 (VGA) [pixel x pixel] |
Maximal Frames-per-Second Rate |
30 FPS |
Power Supply |
USB 2.0 |
Maximal Power Consumption |
2.25 [Watt] |
Working environment |
Indoor and outdoor except the dark environment
|
User Attention
In order to make high-performance of 3D scanner and ensure the normal running, your operating system should meet the following requirements:
1.Processor: Intel Processor, CPU should be higher than i5,recommend i7
2.Memory: 4G and larger than 4G
3.Transmission: Independent USD 2.0 transfer bus
4.Graphics: NIVIDA GT560,GT-710M,and support CUDA2.0 or
5.CUDA3.0 techniques recommended NIVIDA Geforce GT750 graphics card
How to use mingda 3d scanner
1. Fix the 3D scanner on the holder.
2. Sit or stand on the human automatic rotation panel.
3. Double click the desktop shot cut of 3D scanner application software;
4. Position the camera horizontally and on eye-level height in front of you;
5. Click Start to begin the scan;
6. Turn around 360 degrees in either direction by remote controller– reconstruction will
7. Wait for the post-processing to complete and save your model.

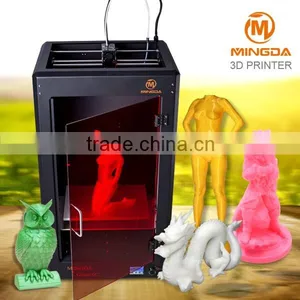

MINGDA 3D Printer for 3d scanner also waiting for you
| Techical Parameters of MINGDA 3D Printer | ||||
| Model | Glitar 6S 3D printer | Glitar 6C 3D printer | Glitar 5C 3D printer | Glitar 4C 3D printer |
| Max printing size | 300*300*600 mm | 300*200*600 mm | 300*200*400 mm | 300*200*200 mm |
| Device dimension | 55*55*90cm | 53*41*85cm | 53*41*65cm | 53*41*50cm |
| Machine weight | 60kg | 50kg | 46kg | 38kg |
| Shipping weight | 75kg | 65kg | 58kg | 46kg |
| Size carton (cm) | 63*63*98cm | 63*49*92cm | 63*49*72cm | 63*49*60cm |
| CBM | 0.38CBM | 0.29CBM | 0.35CBM | 0.19CBM |
| Display&Controller | 3.2inch LCD touch screen | |||
| Layer thickness | 0.05-0.3mm | |||
| Filament | 1.75mm-PLA(recommend), ABS, Nylon,HIPS,PETG,flexible | |||
| Nozzle diameter | stand 0.4mm (0.2-1.0mm Available) | |||
| Printing speed | 0-200mm/s (Adjustable) | |||
| Positioning precision | Z:0.002mm, X/Y: 0.010mm | |||
| Print Technology | FDM (Fused Deposition Modeling) | |||
| Nozzle | 0-260 ℃ (Do not exceed 260) | |||
| Hot bed | 0-110 ℃(Adjustable) | |||
| Nozzle heating time | 1. 5 minutes | |||
| Hot bed heating time | 1 minutes | |||
| Interface | USB, SD card | |||
| AC Input | 95-265V, 56/60Hz | |||
| Machine power | 350W | |||
| File types | STL,G-Code | |||
| Operation software | Cura (SD card) | |||
| Operating system | Windows, Linux ,Mac OX | |||
| Frame Material | High-end Stainless Steel | |||
| Hot bed material | Aluminum | |||
| Ball screw | Dual Ball screw , diameter 16mm | |||
| Extruder | Single extruder (dual extruder available) | |||
| Language | Chinese/ English | |||
3D printer, 3d printer machine, digital 3D printer , desktop 3d printer, 3d , 3D printer machine , Large 3D printer, 3D printer large, Metal 3D printer/ 3D printer metal, 3D rapid Phototyping machine, FDM 3D Printer, Industrial 3D printer, 3D modeling machine, 3D printer price, 3D printer parts, printer 3D, professional 3D printer, used 3D printer/ 3D printer used, printing machinery, 3D printer manufacturer, 3D printer supplier, impresora 3D, Automatic high precision 3D Printer, imprimante 3D, mulitifunction 3D printer
3d scanner for 3d printer, 3d scanner for 3d printer,, 3d scanner for 3d printer, 3d scanner for 3d printer,
3d scanner for 3d printer, 3d scanner for 3d printer, 3d scanner for 3d printer, 3d scanner for 3d printer, 3d scanner for 3d printer , 3d scanner for 3d printer, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner, 3d printer for 3d scanner,
We have 3 kinds 3d printer Glitar 4c (300*200*200mm); Glitar 5c (300*200*400mm); Glitar 6c (300*200*600mm)
