Cisco 4500 Ws-x45-sup7-e

Name: Cisco 4500 Ws-x45-sup7-e
Brand: CISCO
SKU: 126712263
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Ports:

Other, ≥ 48

Transmission Rate:

10/100/1000Mbps

Guangzhou Yuhe Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Ports Other, ≥ 48

Transmission Rate 10/100/1000Mbps

Function POE, QoS, Stackable, VLAN Support

Communication Mode Other, Full-Duplex & Half-Duplex

Certification CE

Brand Name CISCO

Model Number WS-X45-SUP7-E

Place of Origin China

Specifications

1.1 year wanrranty
2. new and original
3.ws-x45-sup7-e,Catalyst 4500 E-Series Supervisor, 848Gbps

WS-X45-SUP7-E , Catalyst 4500 E-Series Supervisor, 848Gbps

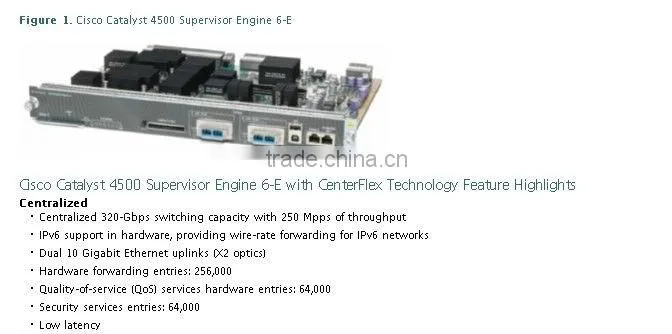

Cisco Catalyst 4500 Supervisor Engine 6-E Performance and Scalability Features

Feature and Description	Supervisor Engine 6-E
Centralized switching capacity	320 Gbps
Per-slot switching capacity	24 Gbps
Throughput	250 Mpps for IPv4 125 Mpps for IPv6 250 Mpps for L2 Bridging
IPv4 Routing entries	256,000
IPv6 Routing entries	128,000
Multicast routes	32,000
CPU	1.3 GHz
CPU queues	64
Synchronous Dynamic RAM (SDRAM)	512 MB upgradable to 1 GB
Nonvolatile RAM (NVRAM)	No through Boot flash (64 MB)
Security and QoS hardware entries	128,000
Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) Snooping entries	12,000
MAC addresses	55,000
Active VLANs	4096
Spanning Tree Protocol instances	10,000
Switched virtual interfaces (SVIs)	4096
Switched Port Analyzer (SPAN)	Maximum of 8 sessions: ingress and or egress

Cisco Catalyst 4500 Supervisor Engine 6-E Bandwidth Capacity per Chassis

	Cisco Catalyst 4503-E Chassis	Cisco Catalyst 4506-E Chassis	Cisco Catalyst 4507R-E and 4507R+E Chassis	Cisco Catalyst 4510R-E and 4510R+E Chassis
Supervisor Engine 6-E (WS-X45-Sup6-E)	136 Gbps	280 Gbps	280 Gbps	320 Gbps

Cisco Catalyst 4500-E Chassis Slot-Assignment Options

Chassis	Single Supervisor Engine 6-E Slot Assignments	Redundant Supervisor Engine 6-E Slot Assignments	E-Series Line-Card Slot Options	Classic Line-Card Slot Options
Cisco Catalyst 4503-E	Slot 1	-	Slots 2 and 3	Slots 2 and 3
Cisco Catalyst 4506-E	Slot 1	-	Slots 2 through 6	Slots 2 through 6
Cisco Catalyst 4507R+E	Slot 3 or 4	Slots 3 or 4	Slots 1, 2, and 5 to 7	Slots 1, 2, and 5 to 7
Cisco Catalyst 4510R+E	Slots 5 or 6	Slots 5 or 6	Slots 1 to 4, and 7	Slots 1 to 4, and 7 to 10
Cisco Catalyst 4507R-E	Slot 3 or 4	Slots 3 or 4	Slots 1, 2, and 5 to 7	Slots 1, 2, and 5 to 7
Cisco Catalyst 4510R-E	Slots 5 or 6	Slots 5 or 6	Slots 1 to 4 and 7 (Refer to Note.)	Slots 1 to 4 and 7 to 10
