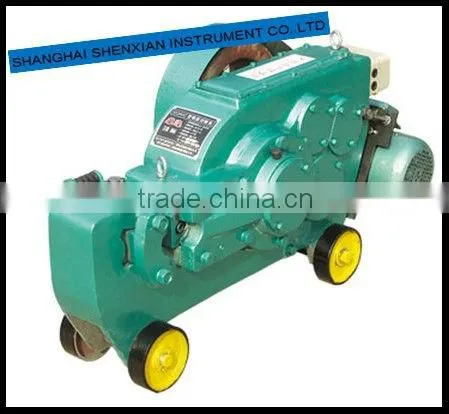

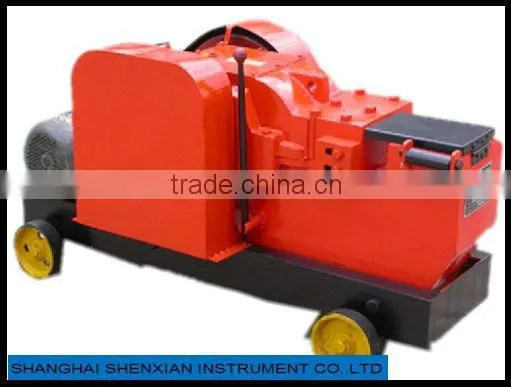

Product Name: GQ65 rebar cutting machine / equipments
Application:
It is a part of the indispensible equipment in construction and metal processing industries.
It can be used to cut plain round steel bars, deformed steel bars, and steel sections like flat steel and square steel.
the model is type of heavy struture, it has enclosed lubrication and clutch struture .
Specifications:
Cutting capacity in terms of diameter: 10-65mm (plain round steel bar)
10-50mm (deformed steel bar)
Tensile strength of steel bar cut 65mm (σs≤235MPa)
50mm (σs≤335MPa)
45mm(σs≤400MPa)
≤45mm (≤450 MPa )
Cutting frequency 27times/ min
Blade stroke 42mm
Type/ Power/ Rotating speed Y132S-2 / 7.5 KW/ 2880 R/min
Packed details :
External dimensions (L x W x H) 1550×680×800mm
Net weight 1050kgs
Pack : steel frame wih carton
