Shear Apparatus
Standard : MEETING ISO and GB Standard
Applications:

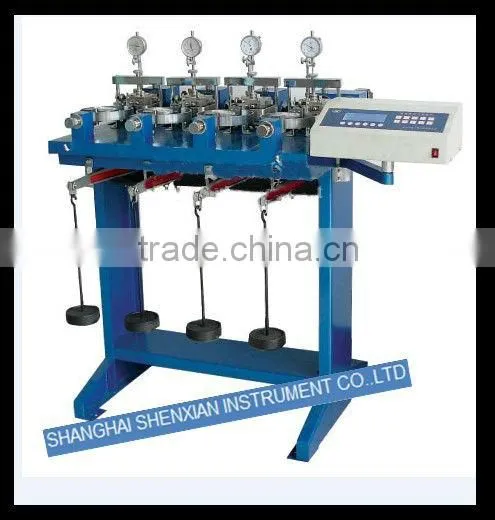

ZJ Series Direct Shear Apparatus is a kind of strain controlled direct shear apparatus used to test resisting
shear strength of soil specimen, it usually adopts four specimens under the different vertical pressure exerted
on the specimens to obtain shear stress when the specimen is destroyed. According to Coulomb’ s law to confirm
the resisting shear strength coefficient, angle of internal friction and coagulable force of the soil.
Configuration list
1. 1set of frame structure with working table and supporting rod
2. 4sets of shear cell for soil specimen
3. a complete set of weights
4. 4pcs of dial gauge for load measurement
5. 4pc of dial gauge for measuring shear force
6. 4pc of prove ring
7. 8 holders for supporting dial gauge
8. English Manual
9. Certificate of Quality
