Specifications
1. Good formability;2. Excellent corrosion resistance;
3. Good for anodizing;
4. Quailitied to ISO 9001:2008.
In Detail:
| Alloy | Temper | Thickness | Width | Bottom Side Painting |
| 3003, 3004, 3005, 3104 | H12 H14 H16 H18 H22 H24 H26 H28 O F | 0.50~150mm | <2200mm | available |
| Painting Material | Painting Thickness | Color | Protect Film | Coil Weight |
| PE or PVDF | 10~30um | RAL | available | <5 MT |
| Inner Diameter | Outside Diameter | MOQ | Cross Cut Adhesion | Curve Testing |
| 405,505,605mm | <1500mm | 10 MT | 1 grade | <2T |
Chemical composion(%):
Alloy |
Si |
Fe |
Cu |
Mn |
Zn |
Ti |
Single |
Total |
Al |
3003 |
0.6 |
0.7 |
0.05-0.20 |
1.0-1.5 |
0.10 |
-- |
0.05 |
0.15 |
REM |
3004 |
0.30 |
0.7 |
0.25 |
1.0-1.5 |
0.25 |
-- |
0.05 |
0.15 |
REM |
3104 |
Si+Fe 0.6+0.8 |
0.05 |
0.8-1.4 |
0.25 |
0.10 |
0.05 |
0.15 |
REM |
|
Other available alloy |
10501060/1100/3005/3104/3015/5052/5083/5754/6061/6063/8011 |
Temper |
O-H112 |
Thickness |
150mm max |
Surface qulity:
Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, OxideDicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use.
Usage:
Produce gutter, kitchen utensils; storage device on food and chemical products; slot, tank, pressure vessel for transportation of liquid product, and pipeline; Heat sink; Makeup board; Photocopying machine drum; boat material; low load spare parts; duct for gasoline or lubricating oil; material for chassis and cabinets; Heat exchanger; Partition of rooms, Baffle plate; movable housing plate; heat insulation board for car; Deep drawing products; Medical equipment parts; Roofing materials; Car license plate, Road signs etc.

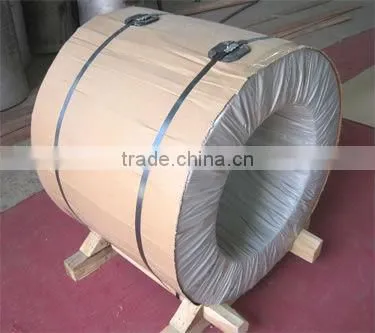

Packing:
Seaworthy packing (the wooden case or pallet with the fumigation report).
