Specifications
Type: Elevator Parts Place of Origin: Jiangsu, China (Mainland) Brand Name: XiangshanSpecifications
Type: Elevator Parts
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Xiangshan
Packaging & Delivery
| Packaging Details: | (1)Bars/bundle for fishplate elevator guide rail (2)Using sheath protect the end of the guide rail and iron plate also protect the guide rail,and the coating with plastic cloth. (3)If you don't have particular request,we'll make the package by 50 pcs of guide rail in a bundle,with each bundle be packed in plastic cloth. |
|---|---|
| Delivery Detail: | in20 days after payment |
Specifications

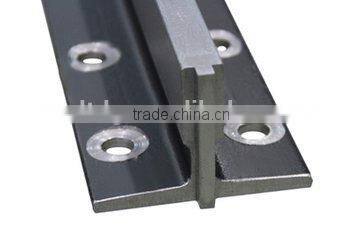

fishplate of all kinds of elevator hollow guide rail:
Dimmensions of Fishplate and Fasteners(mm)
Type | b2 | h3 | h | u | b3 | l1 | l2 | l3 |
Tolerance | ±1 | ±0.2 | ±0.5 | ±1.5 | ±0.5 | ±0.3 | ||
TK3 | 72 | 40 | 6 | 3 | 43 | 220 | 90 | 30 |
TK5 | 88 | 59 | 10 | 4.5 | 50 | 400 | 180 | 20 |
TK3A | 78 | 50 | 12 | 3 | 45 | 200 | 75 | 25 |
TK5A | 78 | 50 | 10 | 4 | 45 | 200 | 75 | 25 |
RE:1) All fishplates meet ISO7465standard.
2)Available in various thicknesses, according to the table and also inother thicknesses on request.
3) Fishplate Material Standard:Q235A
We are professional manufacturer of elevator guide rails, fishplates, T type rail clips , elevator counterweight and guide rail brackets.
Our monthly sales volume is about 2,500~3,000tons, and we export about
1000~1,500tons each month to many countries, such as Spain, America, Canada, France, Germany, Turkey, Iran, Lebanon, Jordan,Israel, UAE, Uruguay, Bolivia, India, Bangladesh,Vietnam, Thailand, Egypt, South Africa and so on. Also we get highly trusted about the quality from our customers.
Detailed Product Description
1.XIANGSHAN brand elevator guide rail follow ISO7465/2007.
2.Our factory has passed ISO9001:2008.
3.Our products are often exported to Mideast,Southeast Asia,North America,South America,Europe etc.
4.We can supply all kinds of elevator guide rail.
Type | Guide Rail | Fishplate | Clip | Screw |
T45/A | 45mm*45mm*5mm | 160*50*8 | 8k | M8*25 |
T50/A | 50mm*50mm*5mm | 200*50*8 | 8k | M8*25 |
T70-1/B | 70mm*65mm*9mm | 250*70*10 | 8k | M12*35 |
T75-3/B | 75mm*62mm*10mm | 240*75*10 | 8k | M12*35 |
T78/B | 78mm*56mm*10mm | 240*75*10 | 8k | M12*35 |
T82/B | 82.5mm*68.25mm*9mm | 216*80*10 | 13k | M12*35 |
T89/B | 89mm*62mm*16mm | 305*90*13 | 13k | M12*40 |
T90/B | 90mm*75mm*16mm | 305*90*13 | 13k | M12*40 |
T114/B | 114mm*89mm*16mm | 305*120*18 | 18k | M16*50 |
T127-2/B | 127mm*89mm*16mm | 305*130*18 | 24k | M16*55 |
