42 Inch Lcd ad Player
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
USENDA
Model Number:
UD-AD42
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HK Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
USENDA
Model Number
UD-AD42
Type
TFT
Application
Indoor
Panel Size
42
Max Resolution
1920 X 1080
Viewing Angle
176/176
Pixel Pitch
16.7M
Color
16.7M
Contrast Ratio
1200:1
Brightness
600cd/m2
Response Time
8s
Input Voltage
AC100-240V

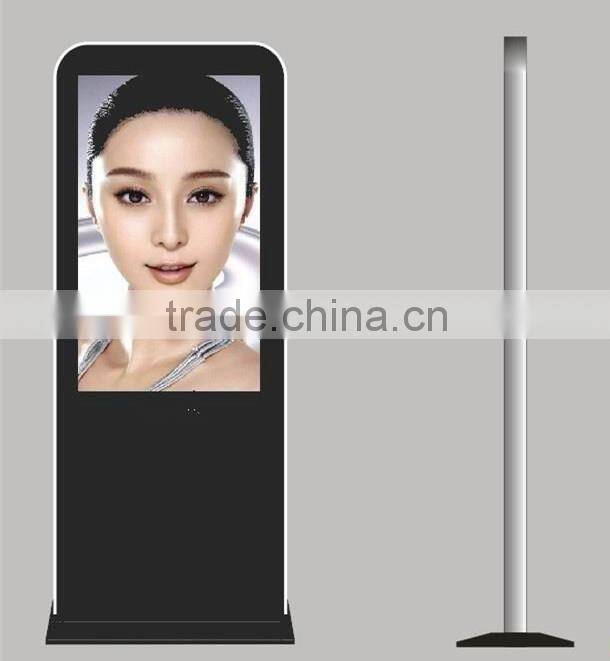

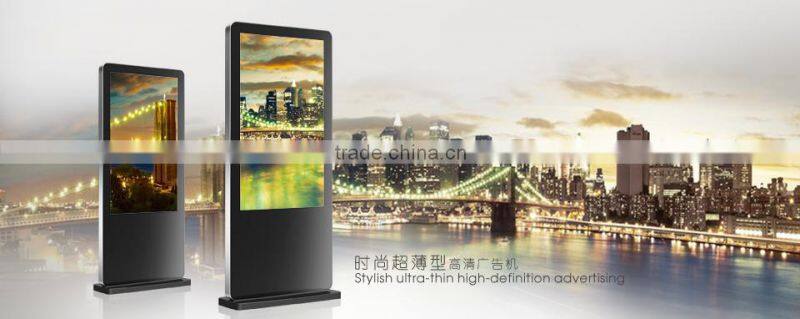

42 inch lcd ad player
| Specifications | |
| Panel size | 42" TFT-LCD |
| Maximum resolution | 1920×1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.543(H)×0.543(V) |
| Brightness (nits) | 500nits |
| Contrast | 4000:01:00 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 50-70KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | 60,000(hrs) |
| Touch Panel | |
| Specification | Infrared touch |
| Positioning | ±2mms |
| accuracy | |
| Transmittance | 92% |
| Hardness | 7H |
| Click manner | double point/mult-point(optional) |
| Response time | 10ms |
| Output Resolution | 4096X4096 |
| Life time | Single point of more |
| than 600 million times | |
| Input and output | |
| VGA input | 2 |
| HDMI | 1 |
| USB2.0 | 4 |
| LAN | 1 |
| Audio(L/R) input | 1 |
| Audio(L/R) output | 1 |
| PS2 | 1 |
| Speaker | 2×15W(8 ohm) |
| Video | |
| Color system | PAL/NTSC/SECAM |
| Compatible HDMI | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| OSD display( screen menu display) | |
| Menu language | Chinese/English |
| Computer | |
| Main chipset | Intel H61 |
| CPU | Intel I3-2100 3.1G |
| System bus frequency | 800/1066/1333 MHz |
| Graphics card | Integrated |
| Audio card | Integrated AC97 |
| Network card | Integrated 10/100/1000M adaptive |
| Memory | 2G DDRIII (max 4G) |
| Hard Disk | 320G SATA |
| WIFI | Included |
| Bluetooth | Optional |
| Power | |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | 280W |
| Standby power consumption | 3W |
| Temperature | |
| Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C |
| Working humidity | 20%~80% |
| Storage humidity | 5%~95% |
| i3 Solution | |
| CPU | Intel i3 2100 (3.1Ghz, Dual Core) |
| Chipset | Intel H61 Chipset |
| RAM | 4GB DDR III 1333 RAM (Up to 16GB) |
| Graphics | Integrated with CPU |
| Audio | HD 8-channel (7.1) audio subsystem |
| Network Interface Card | 10/100/1000 Mbits/sec Ethernet LAN connectivity |
| WiFi | High quality WiFi module included (802.11 B/G/N) |
| H.D.D. | 2.5 inch 250GB or 320GB SATA HDD or SSD |
| Speak | 2 build-in high quality stereo speakers (3w or 5w) |
| O.D.D | DVD-RW (Optional) |
| Mouse/Keyboard | Bluetooth suit (Optional) |
| Pre-Installed OS | Windows XP/VISTA/7 or Linux |
| TV Tuner | Optional |
| i5 Solution | |
| CPU | Intel i5 2300 Processor (2.8Ghz, Quad Core) |
| Chipset | Intel H61 Chipset |
| RAM | 4GB DDR III 1333 RAM (Up to 16GB) |
| Graphics | Integrated with CPU |
| Audio | HD 8-channel (7.1) audio subsystem |
| Network Interface Card | 10/100/1000 Mbits/sec Ethernet LAN connectivity |
| WiFi | High quality WiFi module included (802.11 B/G/N) |
| H.D.D. | 2.5 inch 320GB SATA HDD or SSD |
| Speak | 2 build-in high quality stereo speakers (3w or 5w) |
| O.D.D | DVD-RW (Optional) |
| Mouse/Keyboard | Bluetooth suit (Optional) |
| Pre-Installed OS | Windows XP/VISTA/7 or Linux |
| TV Tuner | Optional |
| i7 Solution | |
| CPU | Intel i7 2600 (3.40Ghz, Quad Core) |
| Chipset | Intel H61 Chipset |
| RAM | 4GB DDR III 1333 RAM (Up to 16GB) |
| Graphics | Integrated with CPU |
| Audio | HD 8-channel (7.1) audio subsystem |
| Network Interface Card | 10/100/1000 Mbits/sec Ethernet LAN connectivity |
| WiFi | High quality WiFi module included (802.11 B/G/N) |
| H.D.D. | 2.5 inch 250GB or 320GB SATA HDD or SSD |
| Speak | 2 build-in high quality stereo speakers (3w or 5w) |
| O.D.D | DVD-RW (Optional) |
| Mouse/Keyboard | Bluetooth suit (Optional) |
| Pre-Installed OS | Windows XP/VISTA/7 or Linux |
| TV Tuner | Optional |

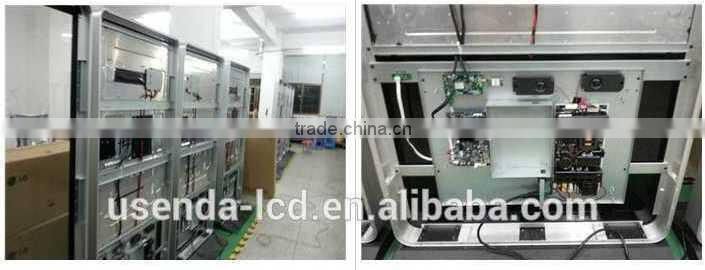

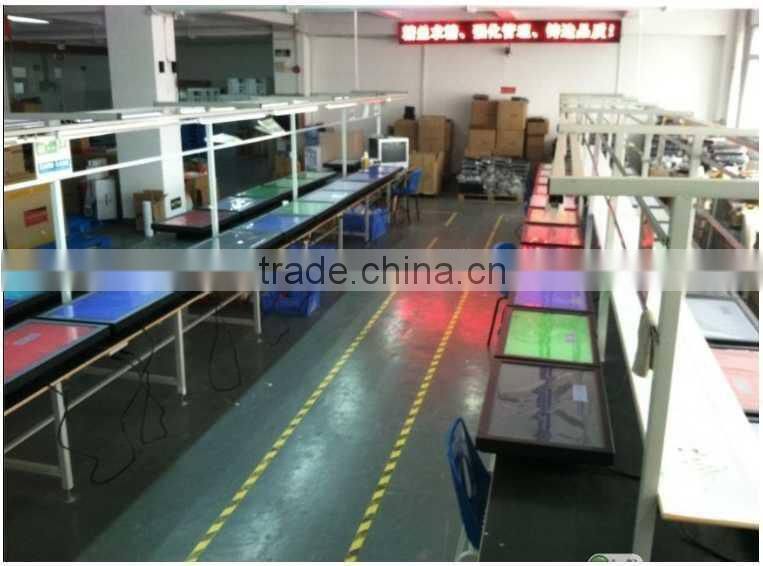

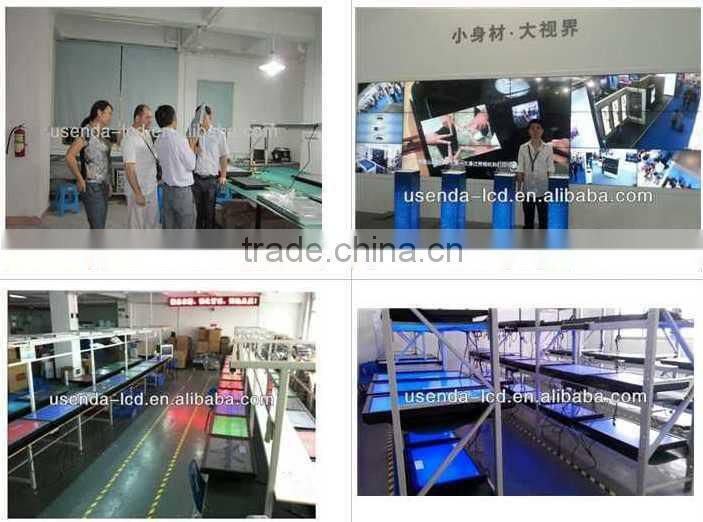

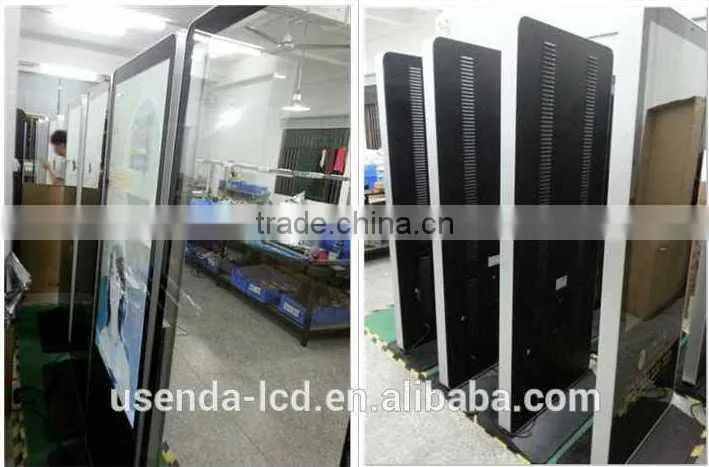

Factory Show

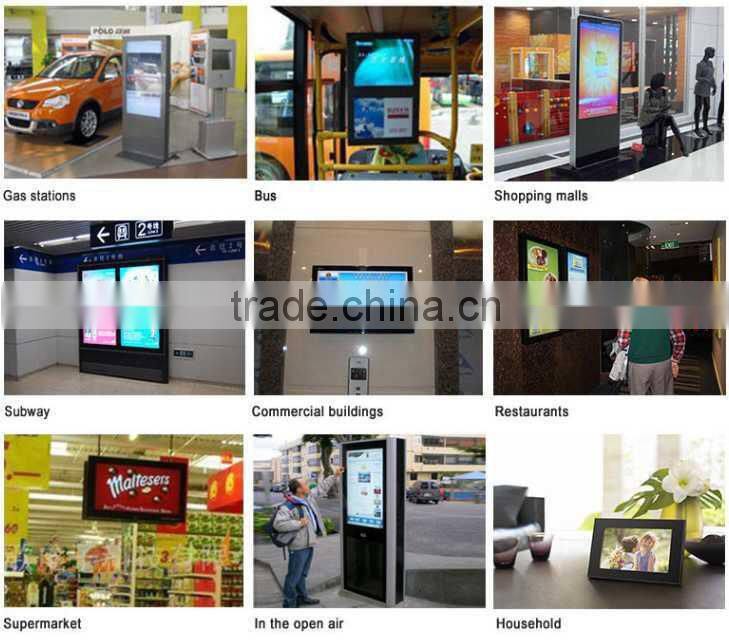

Application

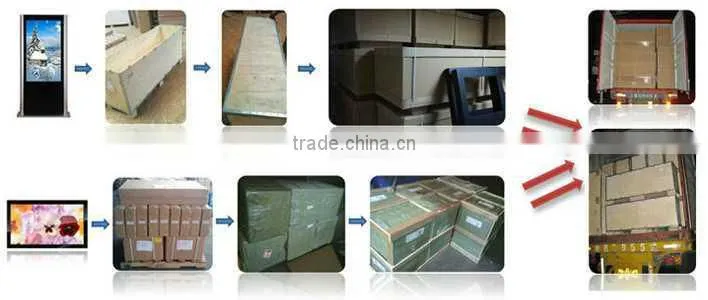

Packing
Term of payment and delivery time
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before delivery. (Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pc
About Us
Shenzhen Usenda Digital Technology Limited Company, also named Tanda Electronics Limited, is a high-tech enterprise integrating the research and development, production and sales. We are engaged in LCD screens,
LCD monitors, advertising players, all-in-one PCs, DID video wall products, etc.
