Specifications
1. kiosk touch screen lcd monitor floor stand2.support 3G/WIFI
3.highest resolution
4.very slim
42 inch outdoor indoor wifi network kiosk touch screen lcd monitor floor stand size:26-65
| Specifications | ||||||||||
| Model No. | UD-L420 | |||||||||
| Panel size | 42" TFT-LCD | |||||||||
| Display area(mm)/mode | 930×523 16:9 | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) | |||||||||
| Brightness (nits) | 600cd/m2 | |||||||||
| Contrast | 4000:01:00 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared Touch | |||||||||
| positioning accuracy | ±2mm | |||||||||
| Touch Media | Finger/touch pen opaque objects | |||||||||
| Transmittance | ≥92% | |||||||||
| Glass Hardness | 7H | |||||||||
| Click Mode | two points | |||||||||
| Response Time | ≤10ms | |||||||||
| ClickLife Time | >=60M times | |||||||||
| PC | ||||||||||
| Motherboard | H61 | |||||||||
| CPU | I3-2100 dual cores four threads 3.1G | |||||||||
| Memory | DDR3 1333MHZ 4GB | |||||||||
| Hardware | SATA II320GB | |||||||||
| Keyboard and Mouse(Optional) | wireless waterproof keyboard and mouse set | |||||||||
| Interface | USB*4,VGA*1,DVI*1,HDMI*1,RJ45*1,Audio*1,MIC*1 | |||||||||
| Software environment | Windows XP/ Windows 7/ Windows 2003 Server Enterprise Edition /Linux | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | 100-240V AC 12V/ DC | |||||||||
| Maximum power consumption | 230W | |||||||||
| Standby power consumption | <3W | |||||||||
| Temperature | ||||||||||
| Working temperature | -20°C~+80°C | |||||||||
| Storage temperature | -40°C~+80°C | |||||||||
| Working humidity | 25%~85% | |||||||||
| Storage humidity | 20%~90% | |||||||||
| Support signal format | ||||||||||
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
| Audio format | Wave/MP3/WMA/AAC | |||||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
| Image resolution | 480P/720P/1080P | |||||||||
| Appearance | ||||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | Metal case SPCC | |||||||||
| Installation | Floor-standing | |||||||||
| Quality Standard | ISO9001,CCC | |||||||||
| Sample leading time | 12~15 working days | |||||||||
| Bulk order leading time | 12~15 working days | |||||||||
| Payment term | T/T or Western union | |||||||||
| Warranty | 1 year | |||||||||
i7 Solution
CPU |
Intel i7 2600 (3.40Ghz, Quad Core) |
Chipset |
Intel H61 Chipset |
RAM |
4GB DDR III 1333 RAM (Up to 16GB) |
Graphics |
Integrated with CPU |
Audio |
HD 8-channel (7.1) audio subsystem |
Network Interface Card |
10/100/1000 Mbits/sec Ethernet LAN connectivity |
WiFi |
High quality WiFi module included (802.11 B/G/N) |
H.D.D. |
2.5 inch 250GB or 320GB SATA HDD or SSD |
Speak |
2 build-in high quality stereo speakers (3w or 5w) |
O.D.D |
DVD-RW (Optional) |
Mouse/Keyboard |
Bluetooth suit (Optional) |
Pre-Installed OS |
Windows XP/VISTA/7 or Linux |
TV Tuner |
Optional |
Products show:
Products application:
1. Public Places:
2. Entertainment Places:
3. Financial Institution
4. Business Organizations:
5. Public Service:
6. Real Estate&Property:
Trade Terms
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pc

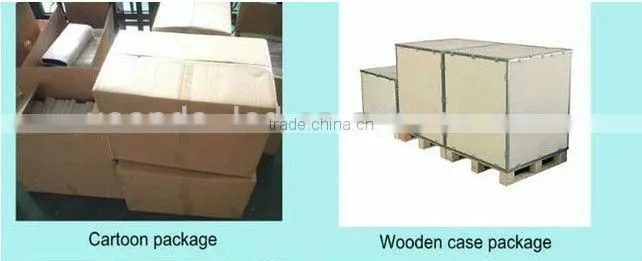

Package
Our certificate

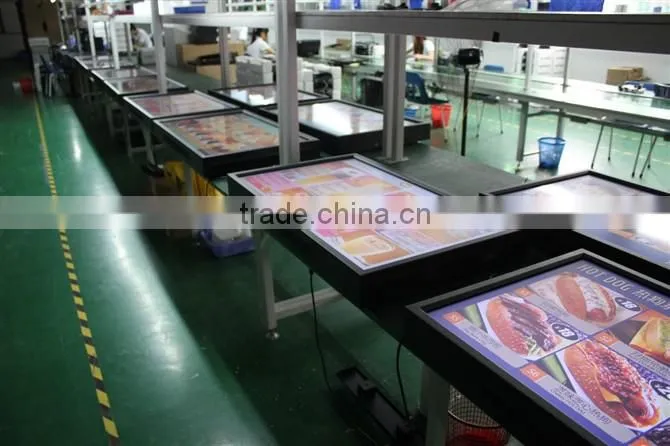

Our product line
