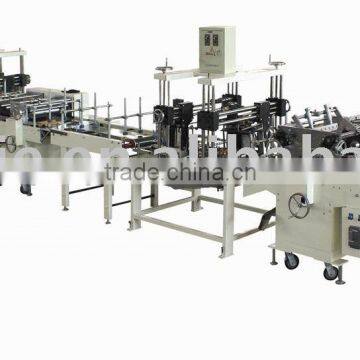

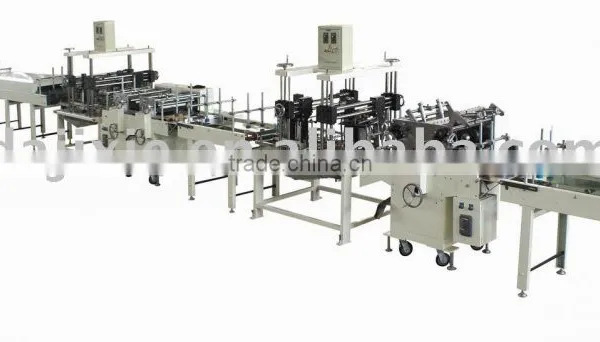

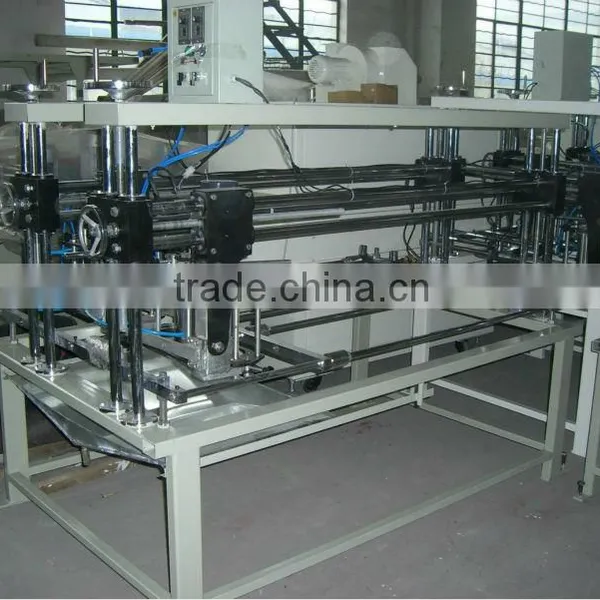

One-Color Printing Machine for Profiles (YBW1240)
| the printing width | 240mm |
| printing speed | 2-30m/min |
| thickness of edge bandings | 0.4-100mm |
| printing color | one color |
| heating power by infrared lamp | 3.2kw |
| heating power by UV lamp | 5kw*3=15kw |
| drive power | 0.75kw/unit |
| total power | 21kw |
| total length of line | 13.2m |

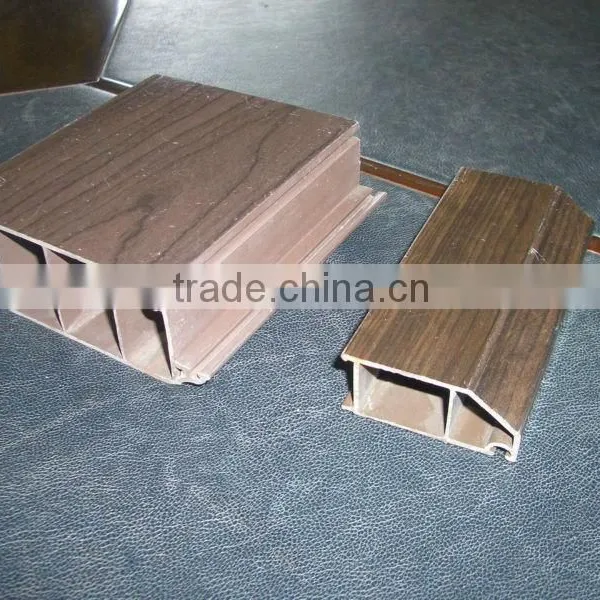

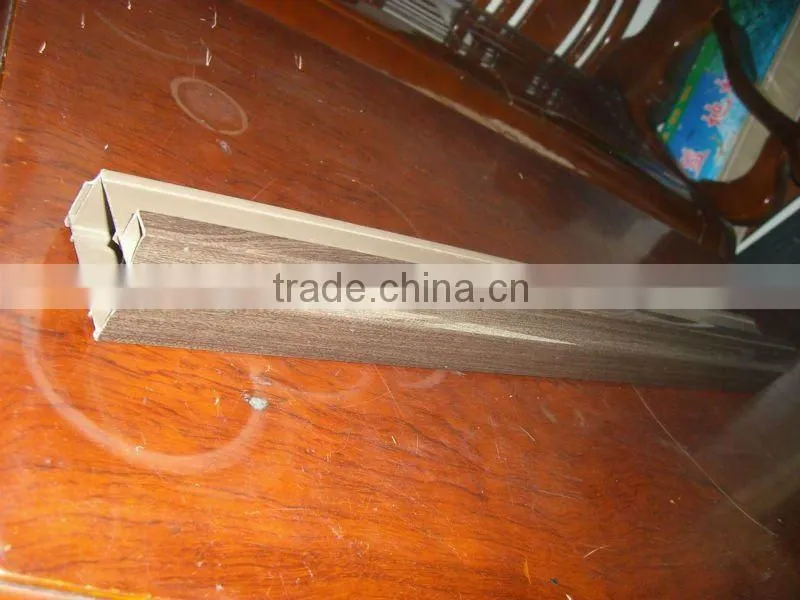

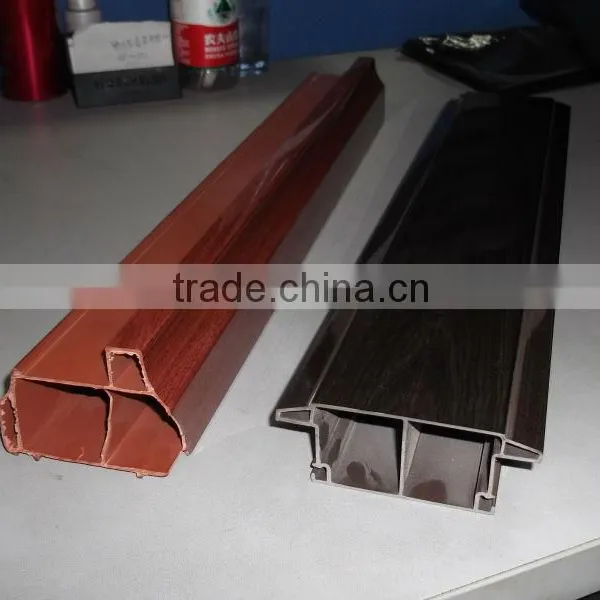

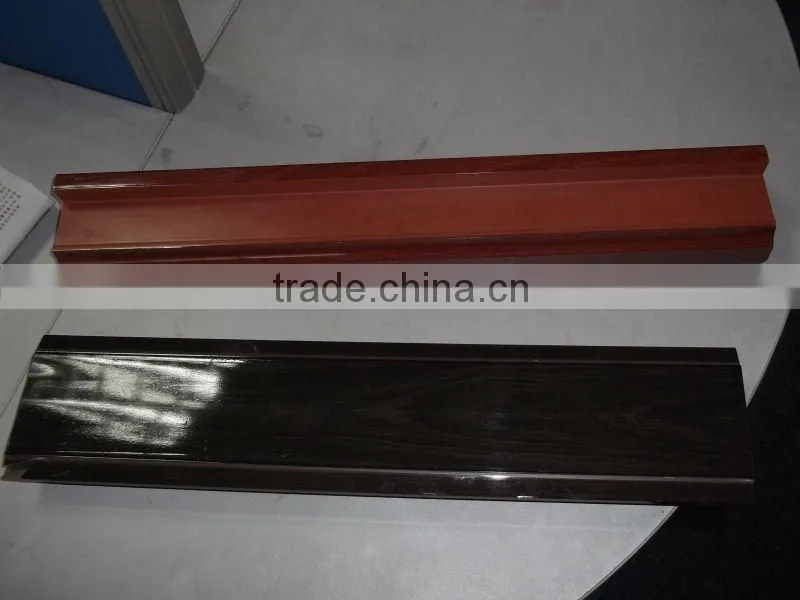

The above is the technical info about YBW1240 model, this machine is used to printing and coating UV lacquer on the concave and convex profiles within 240mm width. The profiles are including PVC door frame, door profile, window profile and etc.
