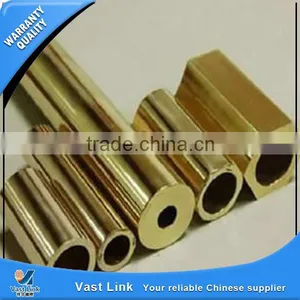

BV certification copper pancake coil/copper pipe plumbing
- 10000 Metric Ton / Metric Tons per Month
- shanghai
- T/T
- Pancake Copper Coil
- 100*100mm Copper Mould Tube for CCM
- China Wholesale C93200 C83600 Wear-resistant Copper Pipe Tube Cheap Hollow Bronze Bars for Bearing Bushings
- Large Diameter Tin Bronze Copper Pipe Factory C95400 C90710 C86300 Posphor Bronze Aluminium Bronze Brass Tube
- Inner Grooved Tube&pipe (IGT)
- Insulated Copper Tube&pipe
Product Details
Type: | Straight Copper Pipe | Application: | Air Condition Or Refrigerator | Specification: | 1/4''-4 1/4'' |
Thickness: | 0.4-3.0mm | Length: | as your request | Cu (Min): | 99.9% |
Alloy Or Not: | Is Alloy | Wall Thickness: | 0.4-3.0mm | Outside Diameter: | 1/4''-4 1/4'' |
Model Number: | C12200,TP2 | Place of Origin: | Shanghai, China |
Product Description
Name:Copper Pipe
1.OD:1/4''-4 1/8''
2.WT:0.40-3.0mm
3.Length:as your requirement
4.High quality, good price, short delivery time
5.Standard: C12200,C11000...
6.Type:copper pipe
7.Shape:pipe
Product | Copper Pipe |
Application | copper pipes are widely used in air-conditioning a nd refrigeration field service,heat exchange use, connecting tubes,distribution,fire protection,solar, natural gas,liquefied petroleum gas,vent piping. |
Material | ASTM,JIS,EN... |
Standard | C12200,C11000 |
Temper | soft annealed,special tempers on request |
Outside Diameter | 4.76mm to 28.58mm |
Thickness | 0.4mm to 3.0mm |
Cu (Min) | 99.90% |
Alloy Or Not | Non-alloy |
Cleanliness | all annealed coils meet or exceed the cleanliness levels specification.Coils are capper with plastic end caps. |
Minimum Order Quantity | 1MT |
Loading port | SHANGHAI |
Packing | Ends capped,in shrinking-wrapped bag,then into cardboard box |
Length | Can be customized |
Delivery Time | within 30 days after receicing the deposit |
Payment Terms | L/C,T/T |
Supply Ability | 10000tons/year |
Main Technical Parameters:
Standard size (Inch) | |||||||
Standard | Copper Alloy No. | Chemical Composition | Mechanical Properties | ||||
CU% | P% | Temper | Tensile Strength (Mpa) | Elongation(%) | Grain Size (mm) | ||
ASTM B88 | C11000 | 99.90 | - | 60 | 200 | - | 0.040 |
50 | 200 | - | 0.025 | ||||
C12200 | 99.90 | 0.015~0.040 | H58 | 250 | - | - | |
JIS H3300 | C1100 | 99.90 | 0.015~0.040 | O | 205 | 40 | - |
L | 245~325 | - | - | ||||
H | 265 | - | - | ||||
C1220 | 99.90 | 0.015~0.040 | 0 | 205 | 40 | 0.025~0.060 | |
L | 205 | 40 | 0.040 | ||||
1/2H | 245~325 | - | - | ||||
H | 255 | - | - | ||||
ASTM B75 | C11000 | 99.90 | - | 60 | 205 | - | 0.040 |
50 | 205 | - | 0.040 | ||||
C12200 | 99.90 | 0.015~0.040 | H58 | 250 | - | - | |
H80 | 310 | - | - | ||||
EN 1057 |
| 99.90 | 0.015~0.040 | R220 | 220 | 40 | - |
R250 | 250 | 30 OR 20 | - | ||||
R290 | 290 | 3 |
|
Vast Link Industrial Co.,Ltd have a registered capital of US$ 50 million.
Our company is engaged in the production and trade of all kinds of copper pipe finished and unfinished products.copper Pipe is our main production and sell well. We have established business relationships with clients in the Korea, Japan, Singapore, Iran, Dubai, Yemen, Chile, Brazil, France, UK, Italy, Canada and more than 20 countries and regions for Stainless Steel Pipe Annual sales revenue is USD 50 billion. The details of payment method, delivery time and minimium quantity and so on for copper Pipe can be negotiated according to the order.
a) Small MOQ of copper Pipe
b) Large supply ability of copper Pipe
c) Can accept any complex inquiry of copper Pipe
d) Stock available of copper Pipe
e) Strong processing and warehousing service for copper Pipe
f) Strict quality control for copper Pipe
g) Professional negotiation for copper Pipe
More details kindly contact us. We can also supply customed copper Pipe...
