Specifications
1.up-ender machine is briefness and operate convenience ;2.to make the stand coil lay on the table;
3.hydraulic control;

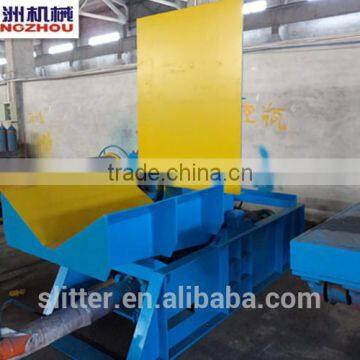

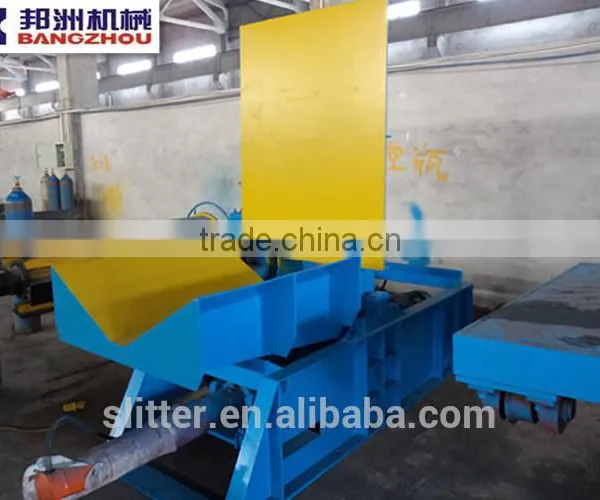

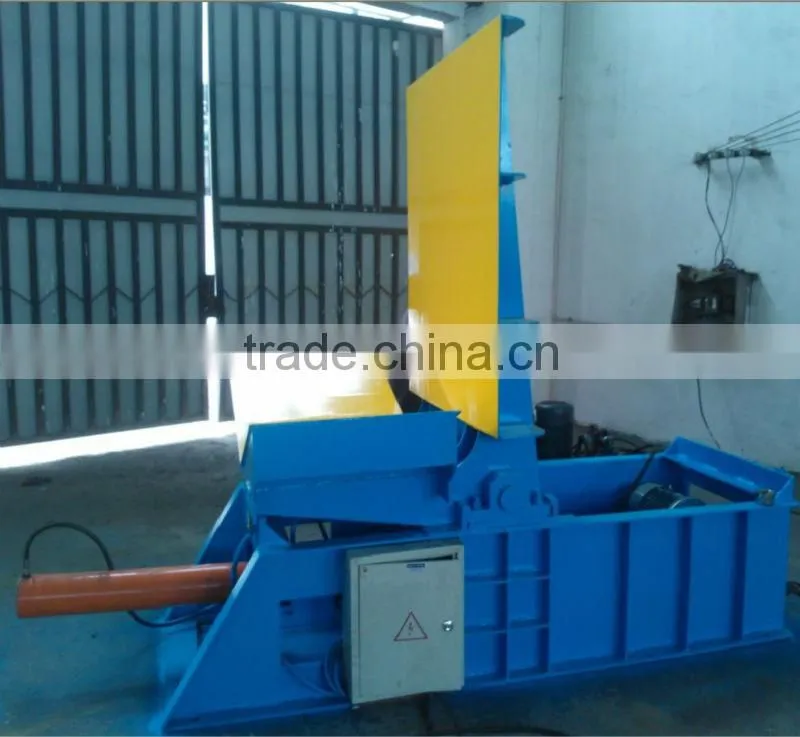

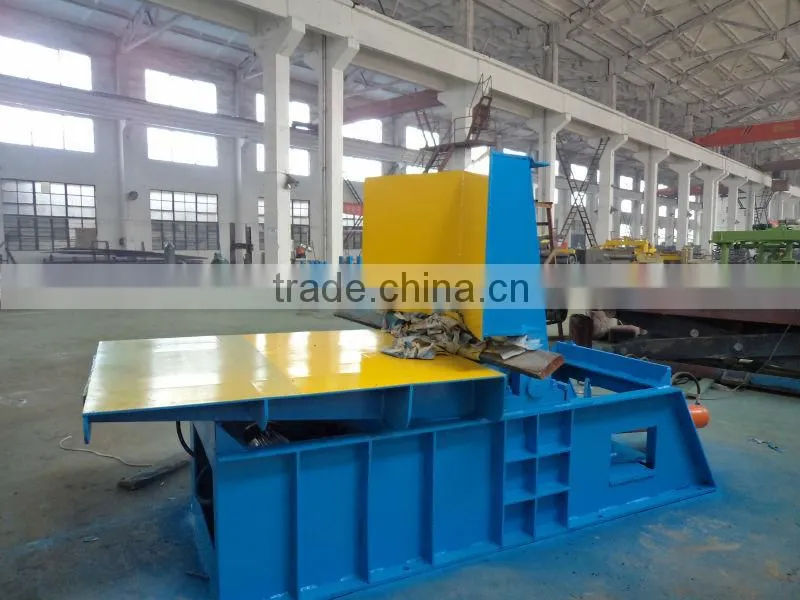

Technical parameters of 5 tons china stainless steel coil turn-over machine:
Main technical parameters:
1. Load-bearing: 5T(max)
2. Rolled-diameter: 1600mm; height: 800mm
3. Diameter of rolled oil cylinder: φ125mm
4. Working pressure of hydraulic system: 0-16Mpa
5. Pump Motor Power: 4KW
6. Pump Type: CBT-F325
7. It is set independent hydraulic system and electrical system.
Other terms of 5 tons china stainless steel coil turn-over machine :
*Payment terms:Price: the whole line would be: per set FOB SHANGHAI.
*Minimum Order Quantity:1 set/month
*Delivery time: 30-45 days per set after signing the contract
*Packing Terms: seaworthy packing
*Supply ability: 15sets/month
*Product warranty: one year warranty period
*Service promise: The supplier designs and makes the equipment with quality guarantee period of one year. The supplier will provide free maintenance within quality guarantee period, except the human mechanical fault, and only collect the part costs and the travel expense of the servicemen.

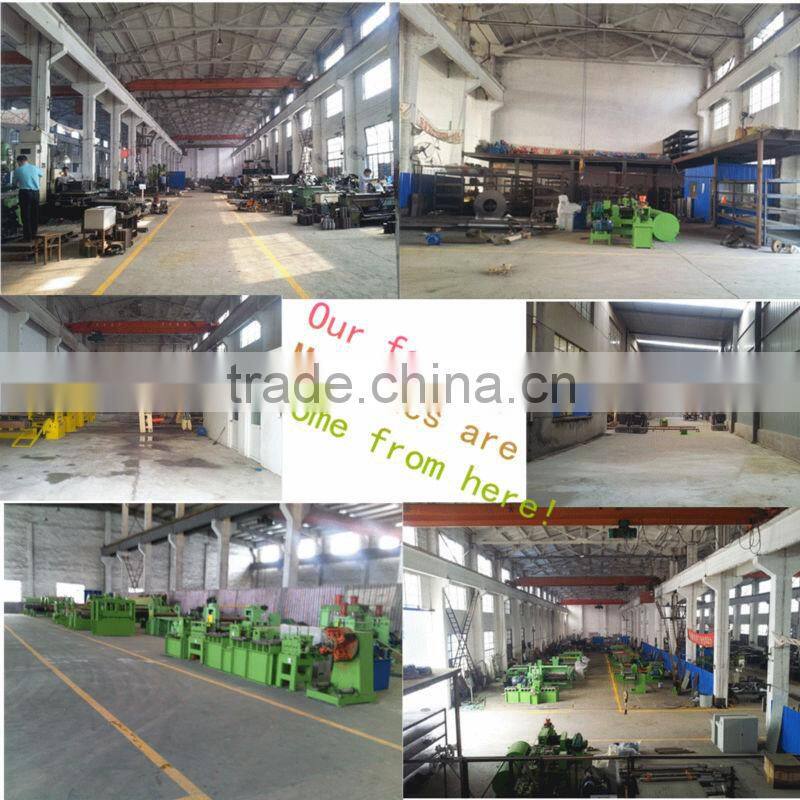

Company information:
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
