Mattress Tape Edge Sewing Machine

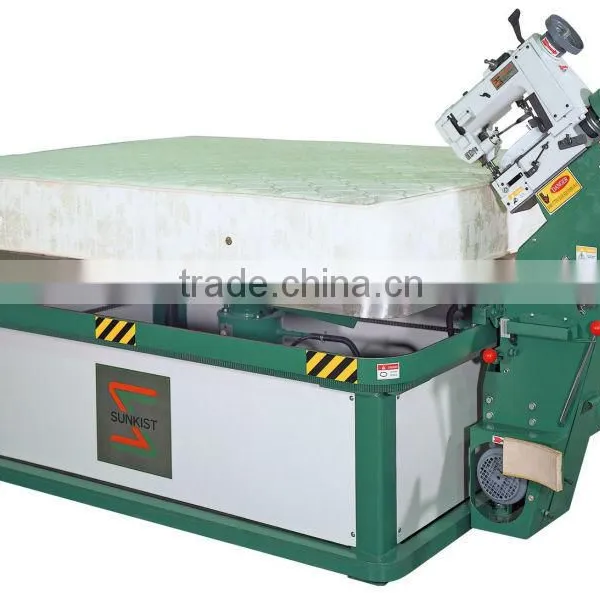

Mattress Tape Edge Sewing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
SUNKIST
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Taiwan, China
Brand Name SUNKIST
Model Number SA-T1 tape edge machine
Voltage 110 V~ 575 V
Power(W) Electric power
Weight About 500kg
Certification CE.UL
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Sunkist SA-T1 Mattress Tape Edge sewing Machine

is designed for stitching the tape to close all kinds of mattress

Product Description

 Technical Data:

Auto speed reducer at corner

Equipped

Machine head form

300S

Machine head working angle

35° - 55°

Mattress thickness sewing range

50-300 mm

Working table size

1400 x 1950 mm

Machine head turning speed/minute

2000 ~ 2800 rpm

Working speed Meter/minute

10 ~ 12.6

Table lifting form

Auto

Turning power supplier form

Inner built

Electric type

1, 3 camera

Weight

About 500kg

The machine uses 2 thread double lock chain stitch, the thread supply from large cups, bobbing is not required.

Special Feature
 1.  Mattress Tape Edge Sewing Machine The sewing head angle can be adjusted by the hand wheel manually to close the mattress. The available working tape width is between 14mm to 50mm.
 2.  Mattress Tape Edge Sewing Machine The carriage will automatically slow down around the corners then speed up when it is away from the corner. The traveling speed  is adjustable for easy operation, suitable for both skillful and green-hand workers.



More Product

Mattress Tape Edge Sewing Machine

Foam Machine

Mattress Tape Edge Sewing Machine Mattress Tape Edge Sewing Machine Mattress Tape Edge Sewing Machine

Cutting Machine

Mattress Tape Edge Sewing Machine Mattress Tape Edge Sewing Machine Mattress Tape Edge Sewing Machine

Rebonding Machine

Mattress Tape Edge Sewing Machine Mattress Tape Edge Sewing Machine Mattress Tape Edge Sewing Machine



Exhibition Picture

Mattress Tape Edge Sewing Machine



Mattress Tape Edge Sewing Machine





Company Information

SUNKIST CHEMICAL MACHINERY LTD
Our product range includes all foaming equipment, Flexible & Rigid Slabstock Flat Top High and Low Pressure Foaming machines with Vacuum or Carbon Dioxide process, Single Block Dispensers, all types of Cutting Machines, such as Auto Horizontal Cutters, Auto Circular Horizontal Cutters with vacuum tables, Vertical and Angle Cutters, CNC Contour Cutters, Long Splitter Loopers, Auto Rebounding Machines for rectangular or round blocks, Laminating Machines, Peeling Machines, Chipping Machines, Milling machines, Sealing Machines and machines for bedding industry, such as Spring Machines and Quilting Machines.
We are confident to provide any kind of machinery needed in the Polyurethane Foam Plant.
We have received over 48 patents and "IT'S VERY WELL MADE IN TAIWAN" is the symbol of our products and after-sales service. We love our work fervently and will continue to strive for the best.
====================================================
