Good Quality 200 USB Digital Microscope With Measurement Function

Good Quality 200 USB Digital Microscope With Measurement Function thumbnail-1
Good Quality 200 USB Digital Microscope With Measurement Function photo-1
US$ 18 - 18 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
HOT
Model Number:
S01
Theory:
Biological Microscope
Contact Supplier Request Quote Chat Now
Shenzhen Create Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HOT
Model Number S01
Theory Biological Microscope
Drawtube Monocular
Place of Origin Guangdong, China
Color optional:Black or White
Min.Order Quantity:1 Piece/Pieces
Port:Shenzhen
Packaging Details:Unit size: 23*15.5*6cm, Unit weight: 0.32kg
pieces per carton
Carton size: 48.5*32.5*35cm, carton weight: 7.16kg
Delivery Detail:1-5 working days

Specifications

We are original manufacturer!
CE/FCC/RoHS certificated, Patented
Good quality, good price.
Customise products avaliable

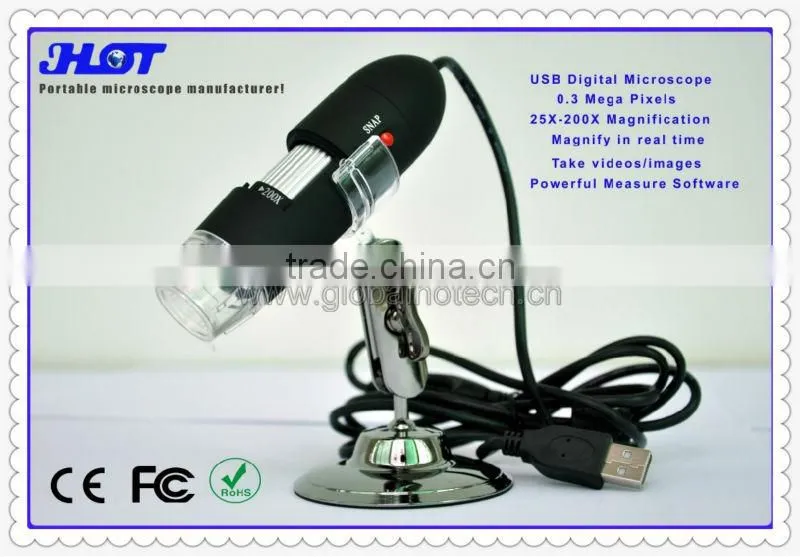

200 USB digital microscope with measurement function

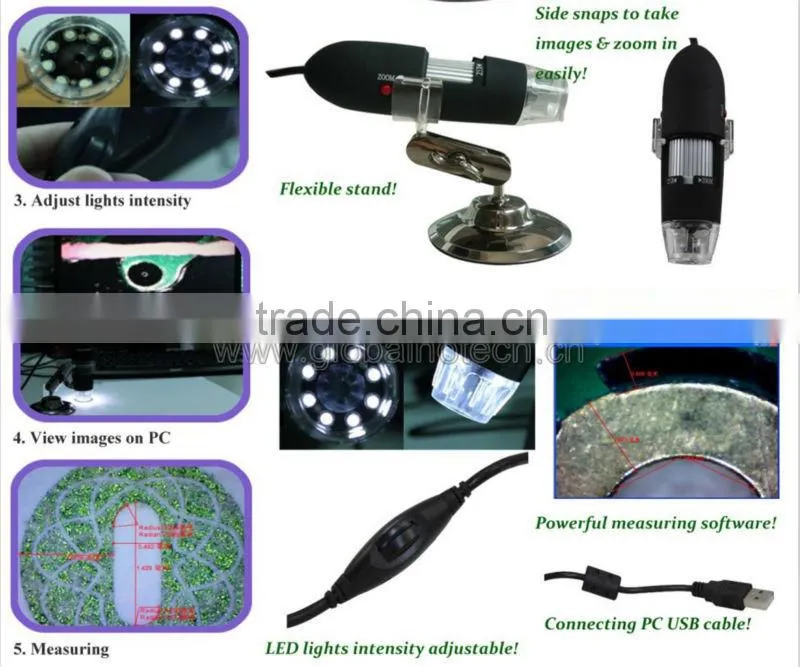

HOT USB Microscope is a handheld color digital microscope with USB interface, it is easy to operate and realized these functions: mangify obeject from 25 times to 200 times, and it can take videos, take images, copy, transfer image and video, measure the size of the object after taken an image.

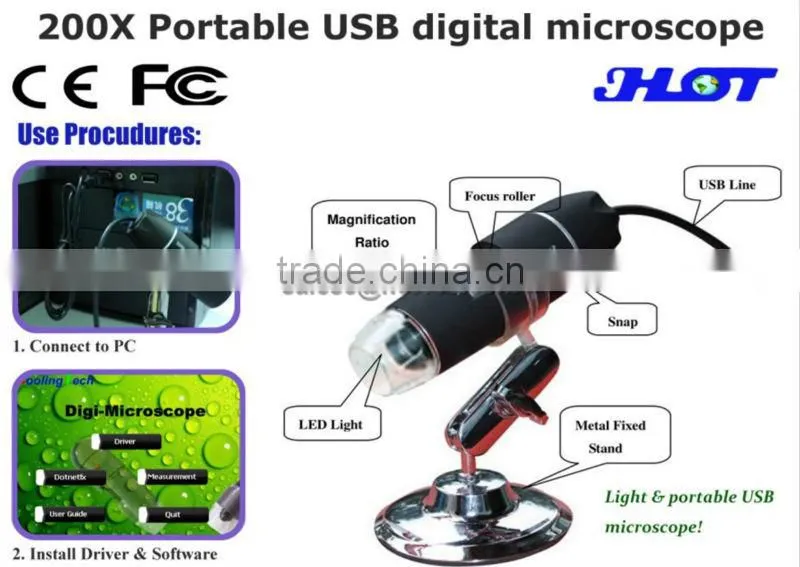

The Use procedures are:

1. plug the USB interface of the microscope to any Windows PC/laptop;

2. Install the CamApp the Measurement software, you can find it in the CD driver send along with the microscope;

3. You will be able to use it now. If you computer notify you to install "NET framework", then please click " Dotnetf" and instaill "you can see it when you open the CD driver"

good quality 200 USB digital microscope with measurement function


good quality 200 USB digital microscope with measurement functiongood quality 200 USB digital microscope with measurement function

200 USB Microscope Specification:

Model No.

S01

Description

200 USB Digital Microscope

Spec.

Main Function:

1. Magnify and real time display images on PC 2. Take videos and images 3. Measure size of the object

Image Sensor:

0.3 Mega Piels

Still Capture Resolution:

640*480

Video Capture Resolution:

640*480

Focus Range:

Manually adjustable 0~40mm

Frame Rate:

30f/s Under 600 LU Brightness

Magnification Ratio:

25 to 200

Video Format:

AVI

Photo Format:

BMP

Light Source:

8 LED (adjustable by control wheel)

PC interface:

USB 2.0 & USB 1.1 compatible

Operation System:

Windows P/Vista/Win7, 32 or 64 bit

OSD language:

English, Chinese

Bundle software:

Camera Driver, Measure Software

Product Size:

112mm (L) 33mm (R)

Weight:

120g

Power Supply:

USB(5V DC)

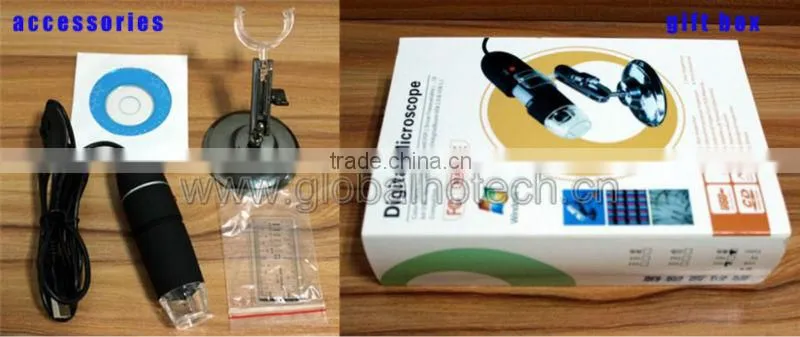

Package Contents:

1. Microscope

2. Mental stand

3. CD(software & User Manual)

4. Calibration Ruler

Packaging Information:

Each unit in gift bo 20pcs/carton Carton Weight:10kg

Carton Size: 36.5(L)*36.8(W)*29.5(H) CM

Warranty:

One Year

Certificates:

CE, FCC approval, RoHS compliance

Images taken by the microscope:

(Kindly note: below pictures taken by our 200 USB digital microscope, the resolution is 0.3Mega Piels. Some suppliers may eaggerate in their microscope resolution, but the effect images can tell you the truth! Please confirm carefully before buying. We are manufacuturer and can customise resolution to higher if you want)

good quality 200 USB digital microscope with measurement function

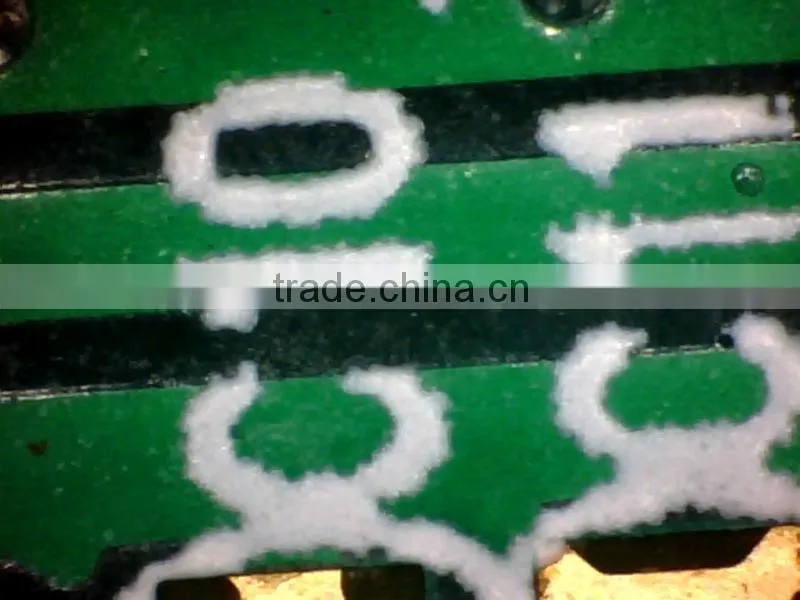

Viewing of PCB board in small magnification

good quality 200 USB digital microscope with measurement function

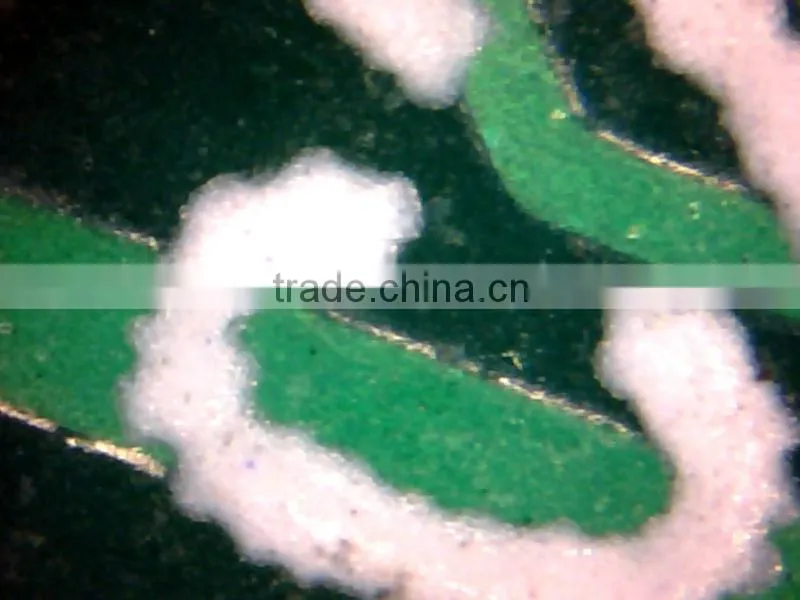

View PCB board in large magnification

good quality 200 USB digital microscope with measurement function

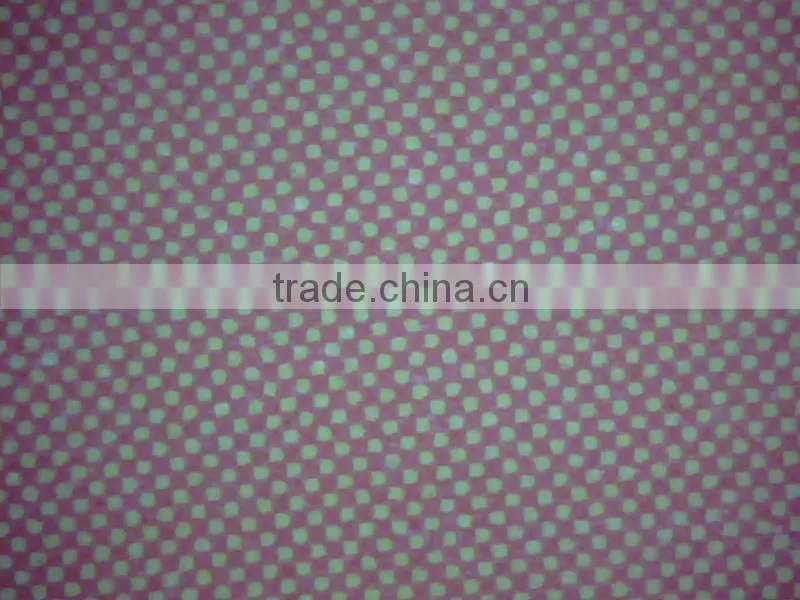

View printed words in medium magnificaiton

good quality 200 USB digital microscope with measurement function

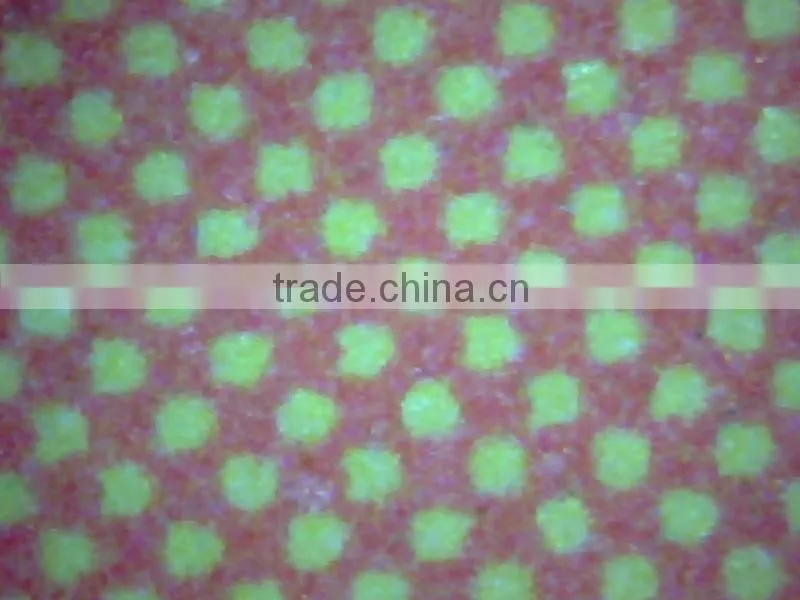

View printed words in large magnification

good quality 200 USB digital microscope with measurement function

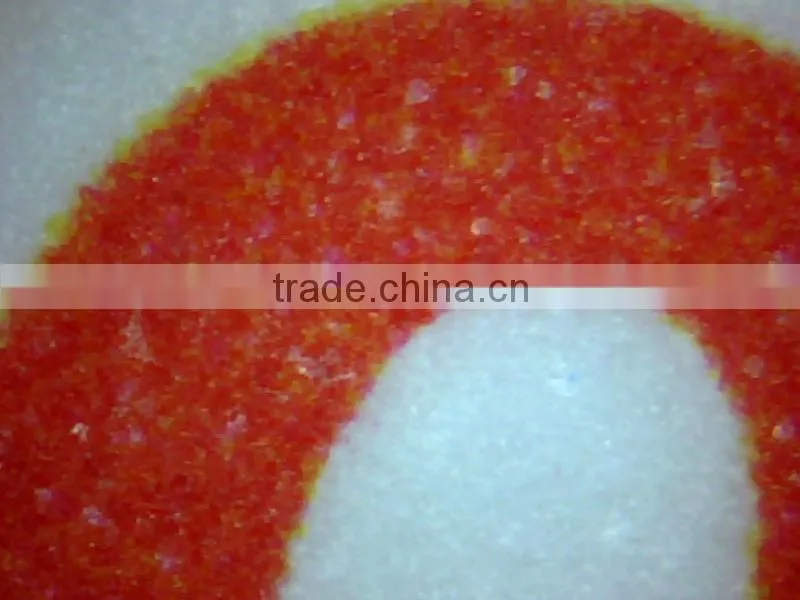

Printing in small magnification

good quality 200 USB digital microscope with measurement function

Printing in large magnification

good quality 200 USB digital microscope with measurement function

We are a professional manufacturer of Portable Digital Microscope, we provide best quality products, OEM service and specilized technical support.
