5M 5050 RGBW led strip with factory quality
Specifications
LED Strips light 5050RGBW
1.12/24V DC voltage
2.120 degrees beam angle
3. CE and RoHS Approved
4. 3 years warranty
SMD5050 constant Adjustable current LED strips
SMD5050 constant Adjustable current flexible LED strip,High output SMD5050 LED,Adjustable and cuttable length,High brightness,low power consumption and long lifespan,Available for customization and convenient for transportation,Soft and flexible for any shape as required,Suitable for a wide range of application and eco-friendly.
Features:
1. SMD 5050 LED as lighting sources.
2. LED Q'ty:30/60/72/120/96/ 120/144pcs.
3. Working voltage: DC 12v/ 24V .
5. Cuttable length:every 3 leds .
6. IP20/IP65/IP67/IP68 for option .
7. Color like Red,Blue,Yellow,Green, White/Warm White, RGB/RGBW are available.
8. Working temperature and Storage temperature:-20℃- 60℃
Parameter:
Part Number |
Input Voltage |
LED Type |
Power (W/m) |
CCT(K)/ nm |
Strip Width |
PCB Color |
Luminous |
Continuous |
Cuttable |
Lifes pan |
EWI-R30X5050RGBW |
12VDC |
5050 |
7.2W |
2800K-7500K |
15mm |
White/ Yellow |
600lm |
10M |
Every 3Leds |
50,000H |
EWI-R60X5050RGBW |
12V/24VDC |
5050 |
14.4W |
2800K-7500K |
10mm |
White/ Yellow |
1200lm |
10M |
50,000H |
|
EWI-R60X5050RGBW(4in1) |
12V/24VDC |
5050 |
19.2W |
2800K-7500K |
12mm |
White/ Yellow |
1200lm |
10M |
50,000H |
|
EWI-R72X5050RGBW |
12VDC |
5050 |
17.3W |
2800K-7500K |
12mm |
White/ Yellow |
1440lm |
10M |
50,000H |
|
EWI-R72X5050RGBW(4in1) |
24VDC |
5050 |
23W |
2800-7500K |
12mm |
White/ Yellow |
1440lm |
10M |
|
|
EWI-R96X5050RGBW |
12VDC |
5050 |
23W |
2800K-7500K |
12mm |
White/ Yellow |
2100lm |
10M |
50,000H |
|
| EWI-2R120X5050RGBW | 12VDC | 5050 | 28.8W | 2800K-7500K | 15/20mm |
white/ yellow |
2400lm | 10M | every 3 leds | 50,000H |
| EWI-2R144X5050RGBW | 24VDC | 5050 | 34.4W | 2800-7500K | 20mm |
White/ Yellow |
3100lm | 10M | 50,000H |

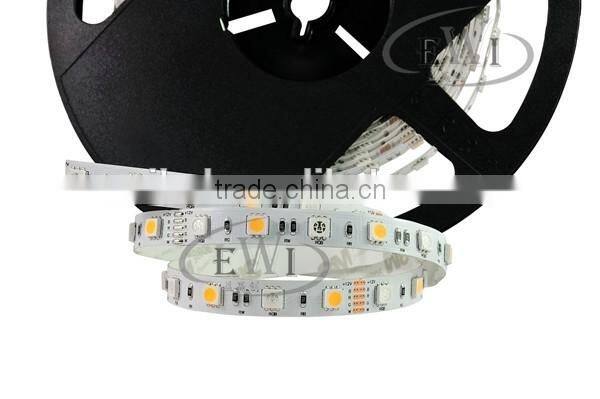

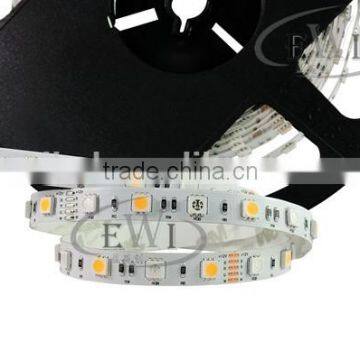

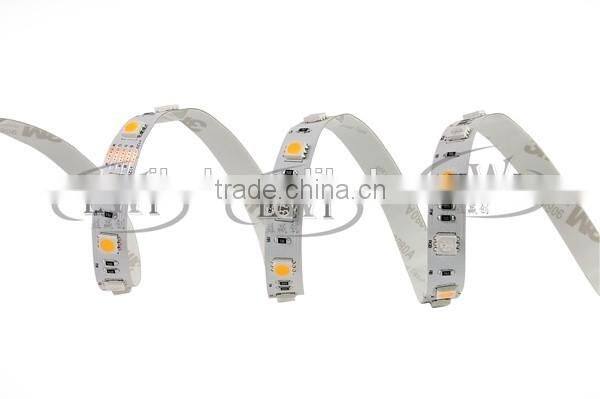

Photos:
Application :
1.Decorative lighting for exhibition shelves, advertising light box and hotel etc;
2.Backlight for edge lighting/signage;
3.Holiday decorative lights, residential and outdoor lighting;
4.Bridge, garden, road and car lighting etc;
5.Long-distance project but with inconvenient wiring;
Our marketing & Exhibitions
Research and Development
Our R&D Department is composed of 15 full time technical engineer who represent the highest level of EWILED. With rich
experience and abundant expertise in led industry fileds, they work togher as a strong team to improve production procedures
and testing methods. There are more than 100 types of featured products to increase the value of our led lighting system solution services. The following is our product line.
Quality Assurance
With several light color electricity synthetic system and PMS-50 UV visible near infraed light spectroscopic analysis, we carry out strict quality control throughout the production process.The following are our certificates and testing machinery.
FAQ
Why choose us?
1, We are professional LED linear manufacturer in Shenzhen, China;
2, There are over 30% reseach memebers in our company to design new products and improve online products andits' qulaity.
3, Delivery time: Punctual delivery for more than 99% orders and samples orders.
How do we guarantee the price is morst competitive?
Comparing with traditioal trading companies or distributors, as a manufacturer, the price we offering is first-hand; Comparing with general manufacturers, with higher quality and good service, we have 5 years experiences, strict production cost controlling enable us to offer you best price.
Our Services
1, Inquiry response: Your enquiries will be replied within 24 Hrs;
2, Delivery time: We promise to deliver the materials within3-5 days after confirming the payments;
3, Payment terms: T/T, L/C, Paypal;
4, ODM/OEM order: Customized designing is available.
Packaging & Shipping
The products will be packed in an antistatic bag, 20-50 reels/carton; Carton are amply sized and products are well protected.
Note:
1,Please make LED drivers compatible with flexible LED strips light before using LED strips;
2,To use LED strips 5M in serial, longer than 5M in parallel;
3,Before use,first check the power supply used in compliance with of the power requirements;
4,Each roll ask for independent power supply;not to use of multi-volume series use;
5,Please install it with specialize tools.
5M 5050 RGBW led strip with factory quality
