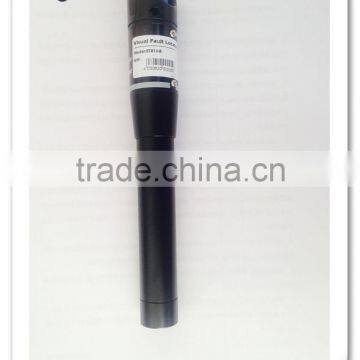

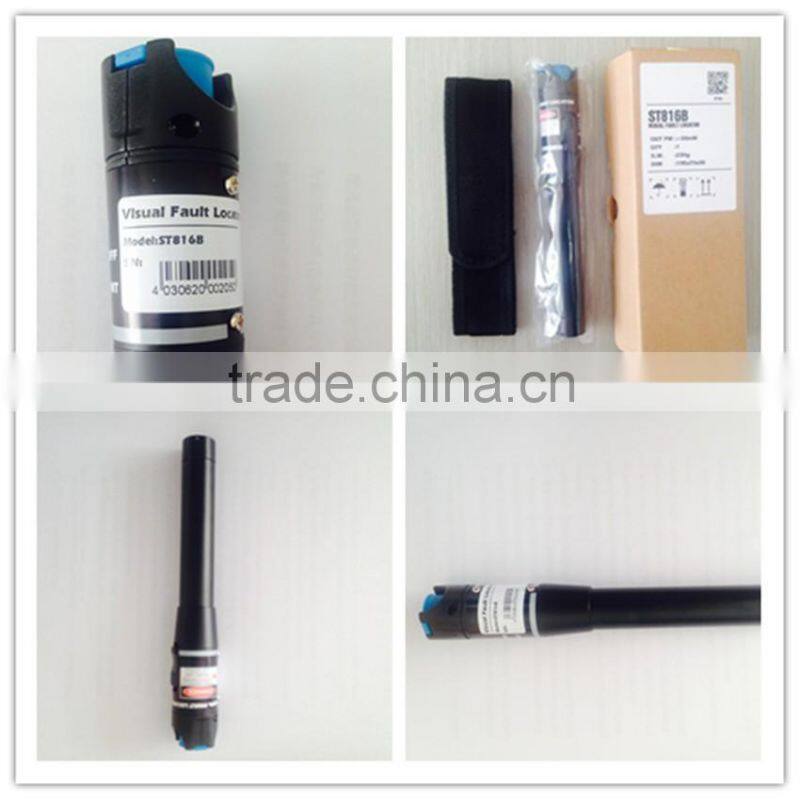

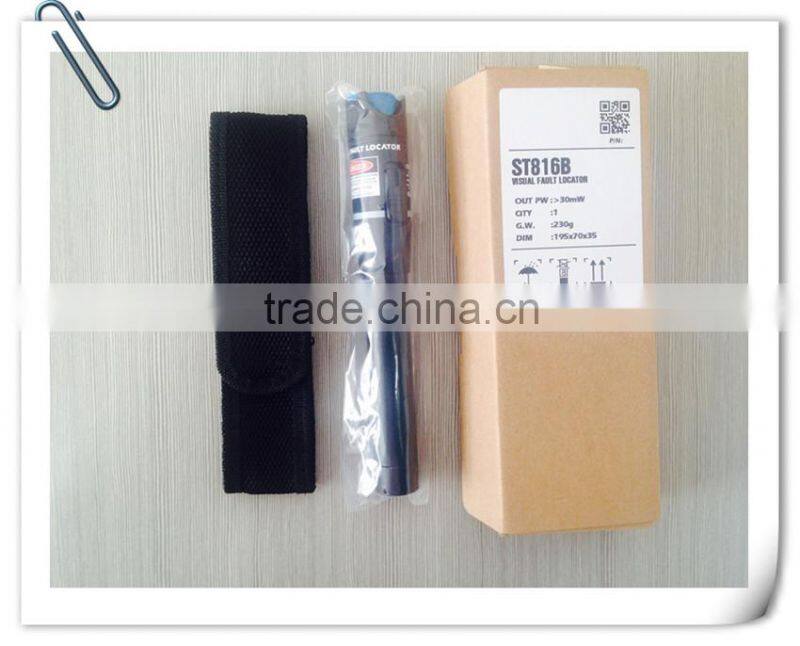

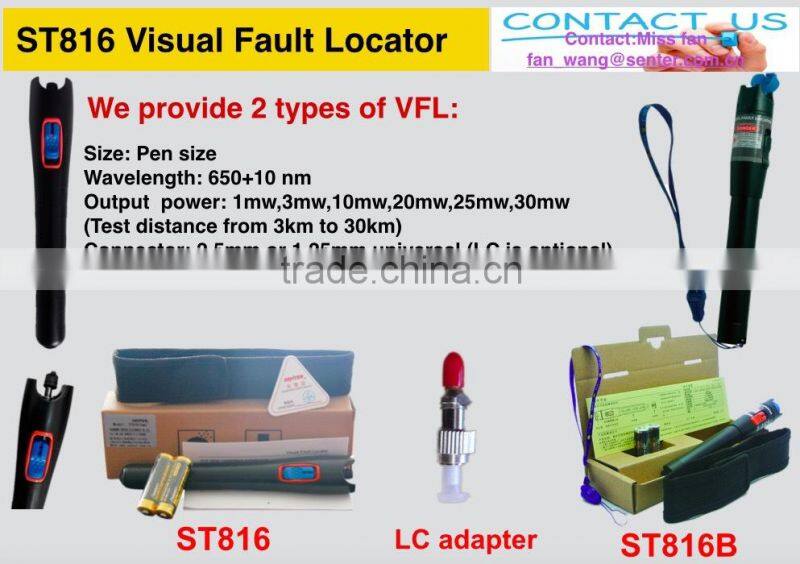

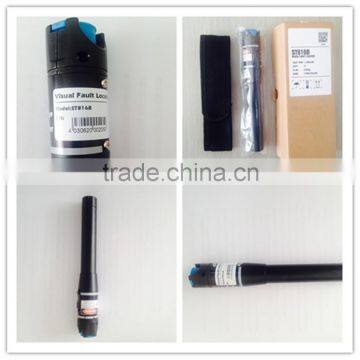

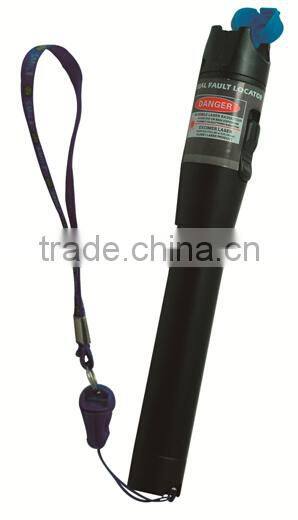

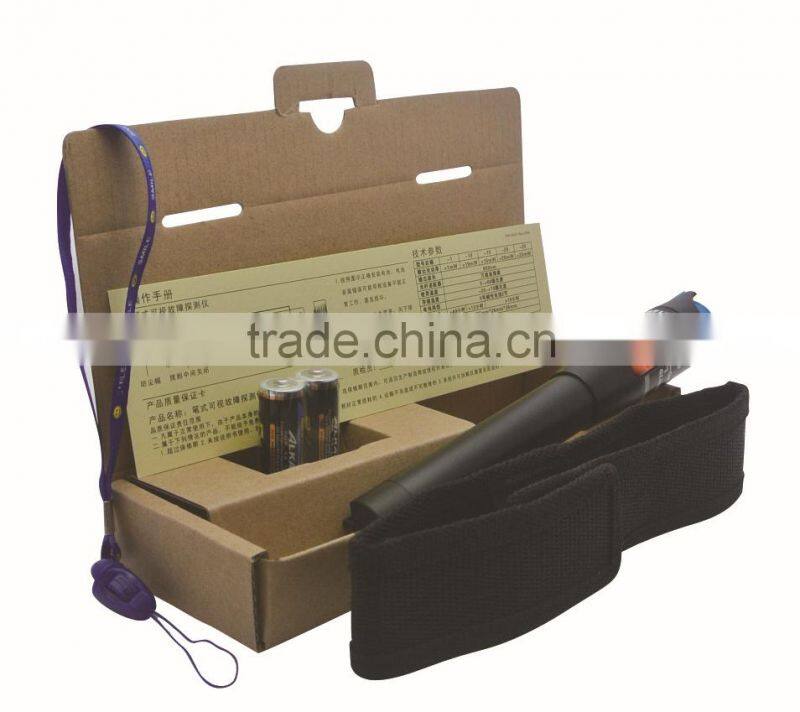

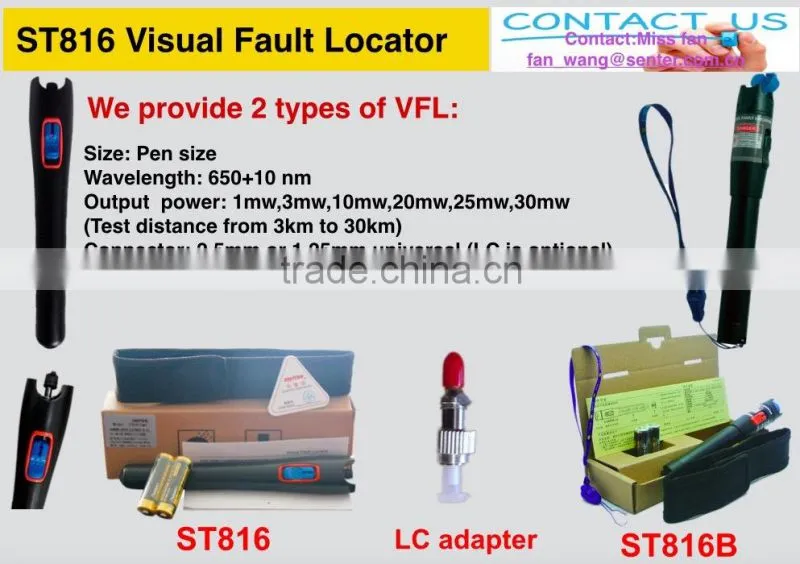

ST816B laser pen type 650nm fiber optic cable visual fault locator/ VFL with LC adapter/ 1,10,15,20,25,30MW,can test 30km
1. Summary
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system
2. Functions and feature
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
3. Specifications
Wavelength |
650nm±10nm |
Light source |
FP-LD laser |
Output power |
1mw,10mw,20mw,25mW,30mW (optional) |
Connector |
2.5mm universal adapter |
Working mode |
CW or 2Hz modulation |
Operating temperature |
0~+60 °C |
Storage temperature |
-25~+70 °C |
Power |
2pcs AA battery |
Working hours |
≥10 |
Weight |
160g |
Dimension (mm) |
175*26*26 |

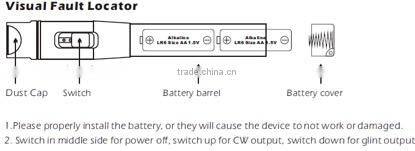

4. Operation
