Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > China Origon Otdr Optical Time Domain Reflectometer Otdr Testing SENTER ST3200

China Origon Otdr Optical Time Domain Reflectometer Otdr Testing SENTER ST3200

Name: China Origon Otdr Optical Time Domain Reflectometer Otdr Testing SENTER ST3200
Brand: Senter
SKU: 126631687

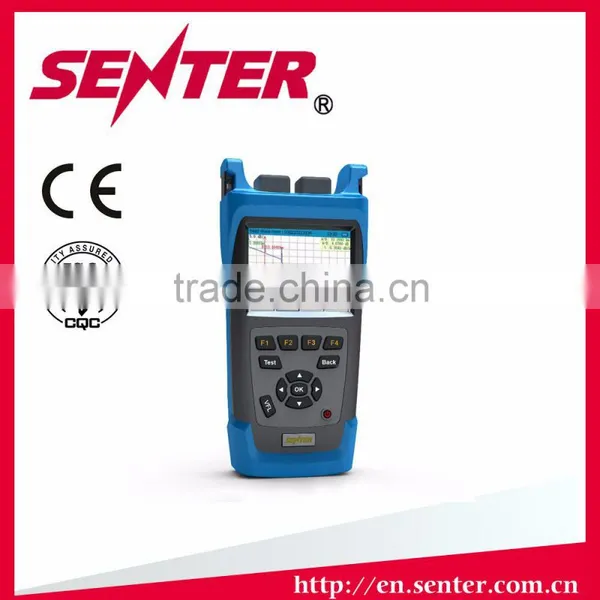

China Origon Otdr Optical Time Domain Reflectometer Otdr Testing SENTER ST3200 thumbnail-1

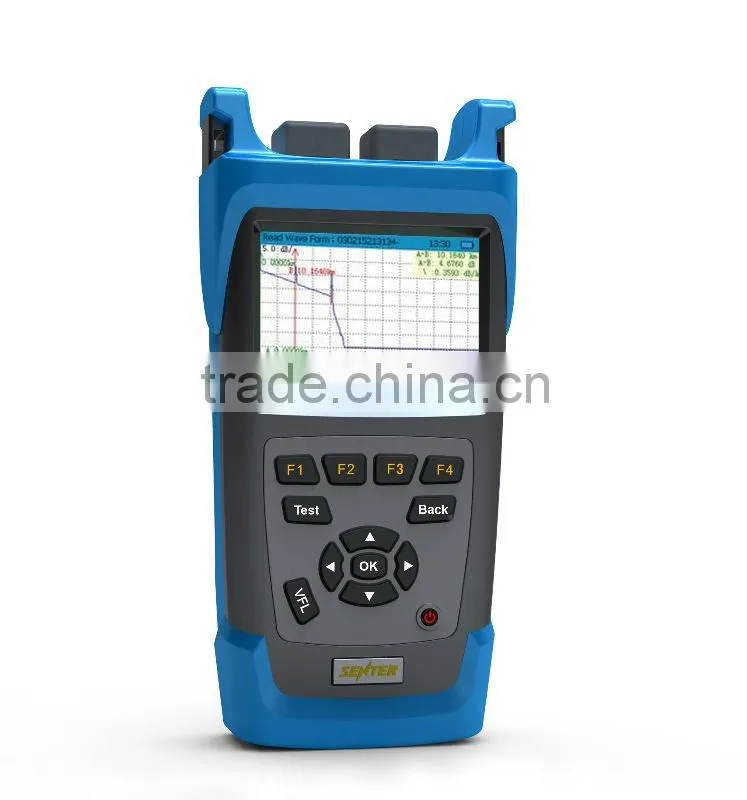

China Origon Otdr Optical Time Domain Reflectometer Otdr Testing SENTER ST3200 photo-1

US$ 1 - 1,400 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Senter

Model Number:

ST3200

Contact Supplier Request Quote Chat Now

Shandong Senter Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Senter

Model Number ST3200

China origon otdr optical time domain reflectometer otdr testing SENTER ST3200

Overview

ST3200 OTDR (Optical Time Domain Reflectometer) is an intelligent optical fiber communication tester. This tester is easy to use and portable, which has a 3.5-inch color LCD touching screen. It also possesses events intelligent analysis and more user—friendly operation.

It is an ideal test instrument for the fiber testing and troubleshooting. It can test the length of optical fiber and optical fiber cable attenuation coefficient. It can exactly display the loss distribution curve of the optical fiber and cable as well as the loss between two points and the joint loss. It also can test the distance between two points and the position of joint, fault point as well as breaking point. This tester has VFL (Vision Fault Locating) system. So it becomes convenient to test the fault location of jumper wire.

Main functions

Test the distance between two points and dynamically display the distance between two cursors

Test the loss between two points and the loss constant of the optical fiber and cable

Test the joint loss

Auto-optimization and quick response

Search for the event points automatically

The function of wave form storage: it can store the wave form data and test condition into the disk and the stored information also can display again.

Support the function of copy: it can copy the data file which is built in the internal disk into the U-disk directly.

Specifications

General Specifications
Optical output connector	FC-PC (standard)
Display screen	320×240 3.5 inch colored LCD (touch screen)
Port	USB port
Environmental requirement	Working environmenttemperature: 0~50℃ Storing environmenttemperature: -20~60℃ Relative humidity: 0%~95% (non-condensing)
Dimension	D×W×H: 220mm×105mm×60mm
Weight:	about 1 kg
Duration of the battery	Standby: >50h Testing Time: >20h
Key Tech Specifications
Sub Models	ST3200-3528	ST3200-3532
Wavelengths	1310nm/1550nm±20nm
Dynamic Range	28/26dB		32/30dB
Range(km)	1, 2, 4, 8, 15, 30, 60, 90, 120		1, 2, 4, 8, 15, 30, 60, 90, 160
Fiber Under Test	single mode
Pulse Width(ns)	10/20/50/100/200/500/1us/2us/5us/10us/20us/Auto
Working Current	450-600mA
Power Consumption	About 4 W
Event Dead Zone	≤2m
Attenuation Dead Zone	≤10m
The VFL output power	>2mW
The capacity of storing waveform	>10000
Degree of Linearity(dB)	±0.05
Loss Threshold(dB)	0.01
Loss Resolution(dB)	0.01
Sampling Resolution(m)	0.16~5
Averaging Time	5s, 15s, 30s, 1min, 2min, 3min
Power Consumption	<3W
Alarm with light	>1uw(-30dbm)
Distance Uncertainty	±(1m+sampling interval + range×0.005%)

Compositions of the tester

Basic composition

Items	Names	Quantity
host	ST3200 OTDR	1
Standard accessory	Battery charger	1
	User manual	1
	CD (including ST3200 imitated analysis software)	1
	USB Data Cable	1
	Carrying Bag	1
