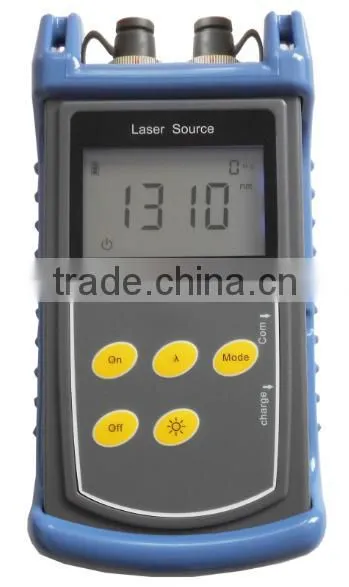

Help CenterST815B Handheld Laser Source PON Optical Laser Source for GPON Network
Related Products
-
ST815 SENTER Brand Optical Light Source Multi-Wavelengths Laser SourceUS$ 100 - 300MOQ: 1 Unit -
ST815 Series Optical Tunable Laser Source,light Source With SC/APC AdapterUS$ 70 - 300MOQ: 1 Unit
-
ST801B Optical MultiMeter, Fiber Optical Light Source Power Meter TWO in ONENegotiableMOQ: 1 Unit
-
SENTER ST815 Handheld Optical Fiber Meter OLS Fiber Optic Laser SourceUS$ 1 - 300MOQ: 1 Unit
-
ST815 Series Optical Laser Source for Both SM and MM Fiber,with PON/optical Instruments /SC/APCUS$ 70 - 300MOQ: 1 Unit
Specifications
ST815B allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm.
With better performance and special fast field testing function, ST815 adopts advanced technology of exact light and dealing with technology and to support high performance light for the field test and the lab development. It has been an ideal instrument for maintenance and development of optical network equipments.
ST815 can be widely used in various kinds of optical cable testing fields, such as LAN, WAN, CAN, CATV and long-distance Fiber Network.
Together with ST800 series optical power meter, ST815 Laser Source can support stable light signal on many kinds of wavelength, it can recognize the fiber, test the fiber loss and continuity accurately, help to evaluate the transmission quality of fiber chain as well.
Technical Specifications
Emitter type |
Fabry_Perot LD/ DFB-LD |
Output wavelength switch (nm) |
Wavelength: 1310±20nm, 1550±20nm, 1490±20nm |
Spectral width (nm) |
≤5 |
Output optical power (dBm) |
≥-7 |
Optical Output Mode |
CW/270Hz, 1kHz, 2kHz |
Optical Interface |
FC,SC,ST |
Power Stability (dB) (Short time) |
≤±0.05/15min |
Power Stability (dB) (Long time) |
≤±0.1/5h |
General specifications | |
Working temperature (°C) |
0--40 |
Storage temperature (°C) |
-10--70 |
Weight (kg) |
0.22 |
Dimension (mm) |
160×76×28 |
Battery |
Li battery |
