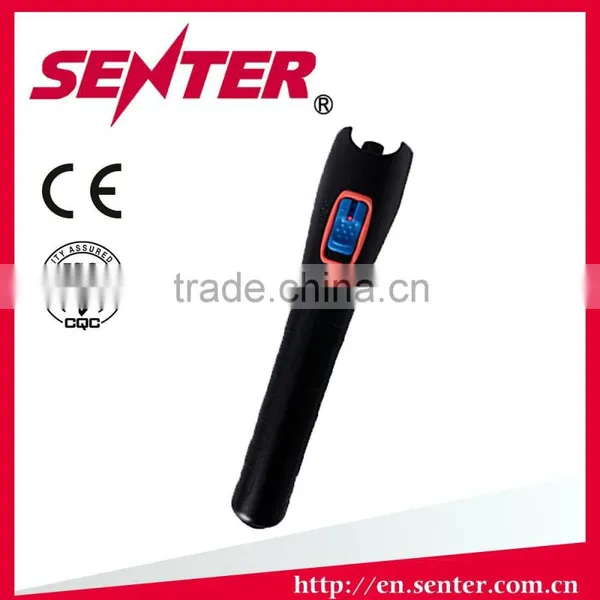

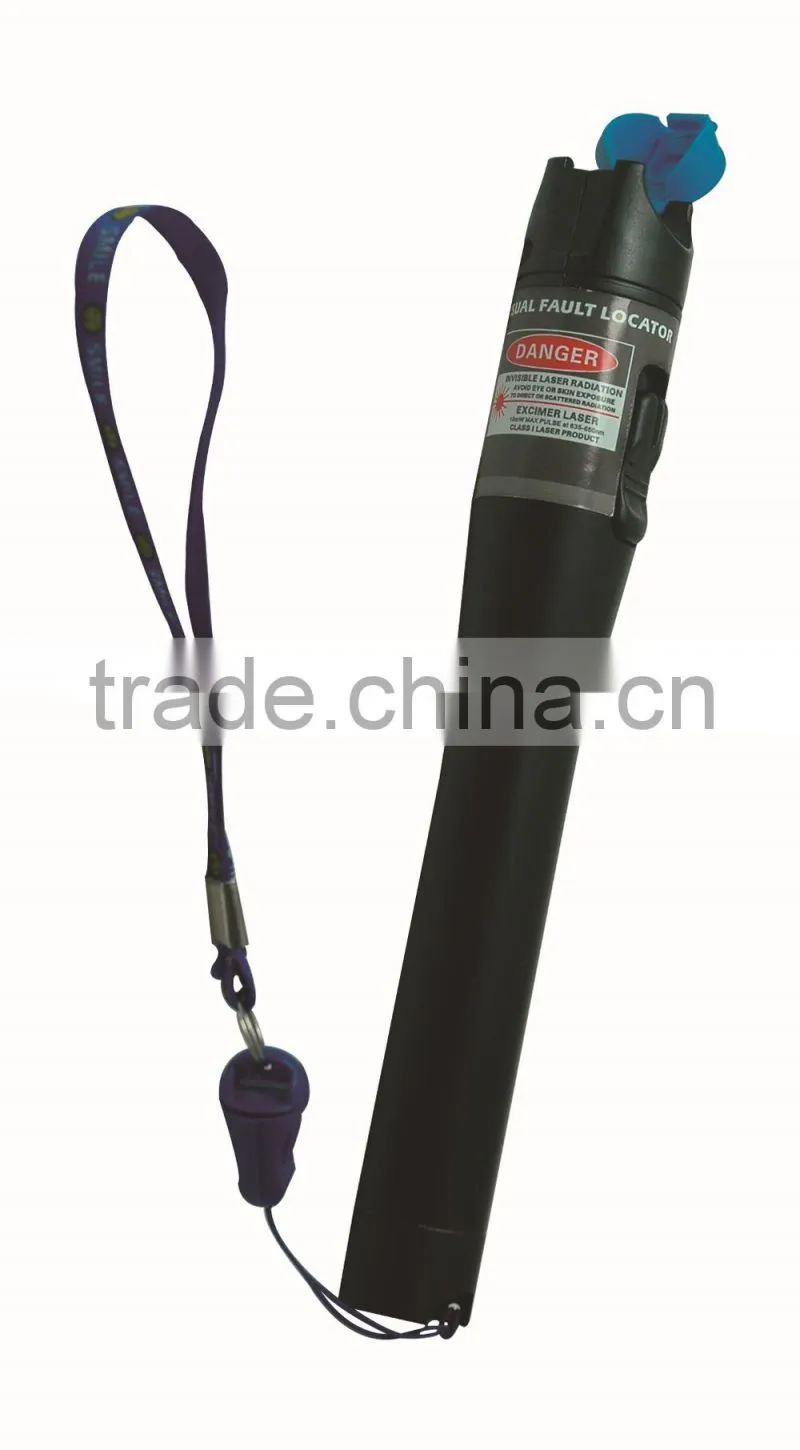

650nm pen type fiber optical VFL 20mw visual fault locator
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
Functions and feature
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
Specifications
Wavelength |
650nm±10nm |
Light source |
FP-LD laser |
Output power |
1mW, 3mW, 5mW, 10mW, 15mW, 20mW (optional) |
connector |
2.5mm universal adapter |
Working mode |
CW or 2Hz modulation |
Operating temperature |
0~+40 °C |
Storage temperature |
-25~+70 °C |
Power |
2pcs AA battery |
Working hours |
>60 |
Weight |
100g(excluding batteries) |
Dimension (mm) |
23 X 207 |
