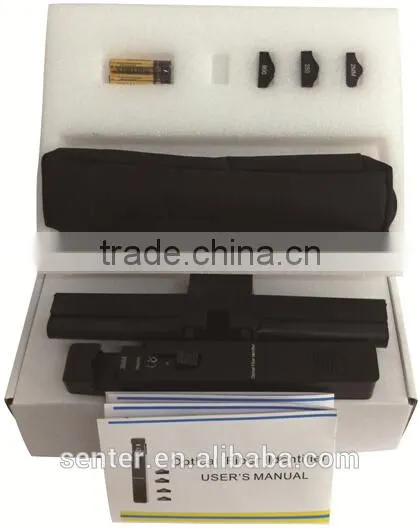

Help CenterST820B Handheld Fiber Optical Identifier One Key Operation
Related Products
-
ST3820 Fiber Patch Cord Identifier With VFL FunctionUS$ 210 - 240MOQ: 1 Unit -
ST3120 Optical Cable Identification Device / Fiber Cable IdentifierUS$ 2,100 - 2,300MOQ: 1 Unit
-
ST3820 ONE KEY Operation Optical Fiber Identifier With 1mw VFLUS$ 200 - 229MOQ: 1 Unit
-
SENTER ST3820 Dark Fiber Identifier With VFL Optical Fiber Identifiers Live Fiber IdentifierUS$ 200 - 229MOQ: 1 Unit
-
ST3820 New Arrival Optical Fiber Test Detector Fiber Optic Identifier for SaleUS$ 22 - 249MOQ: 1 Unit
Fiber Patch Cord Identifier Description
ST820B Fiber Patch Cord Identifier is an essential instrument for the installation and maintenance of optical fiber projects. It can easily detect any spot of SM fiber cables. Through inserting a 1310 or 1550 modulated signal into the fiber, it is used to indicate the direction of the transmitting signals, find and locate the specific fiber without interrupting the current work during the installation, cabling and maintenance.
The ST820B optical fiber identifier also recognize the modulation like 270Hz, 1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.
Fiber Patch Cord Identifier Adapters

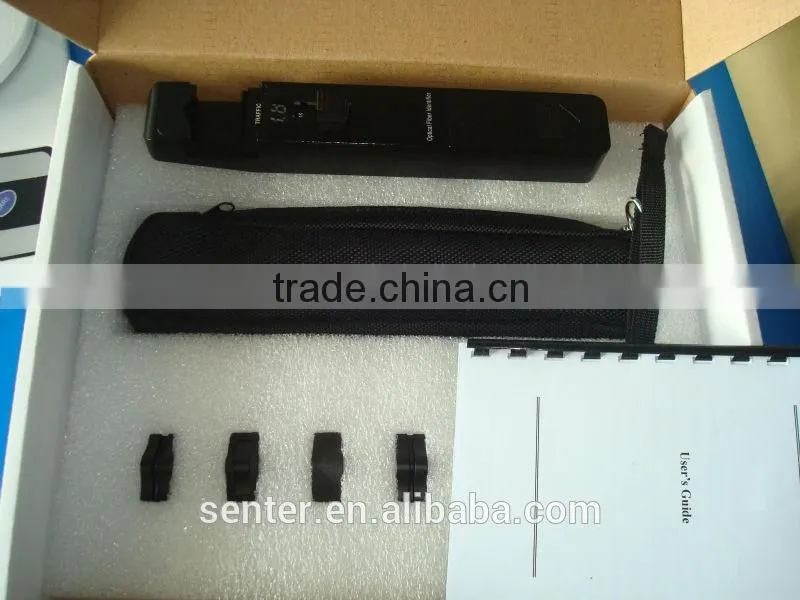

There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0.
Fiber Patch Cord Identifier Key Features
1. Easy-to-use with “ONE KEY” operation.
2. Efficiently identifies the traffic direction and frequency tone
(270Hz, 1KHz, 2KHz) with audible warning.
3. Displays the relative core power
4. More accurate test with sunshade
5. Easy-to-replace adaptors
6. Durable metal housing and quality construction
7. Lower power indication
Fiber Patch Cord Identifier Application
-Telecom Projects
-Optical Fiber CATV
-Generic cabling system
-Production and research of optical components
Fiber Patch Cord Identifier Specifications
Items |
ST820B |
Identified Wavelength Range |
800-1700 nm |
Detector Type |
Ø1mm InGaAs 2pcs |
Identified Signal Type |
CW, 270Hz,1kHz,2kHz |
Detection sensitivity |
-40dBm |
Adapter Type |
H 0.9/0.25 for bare fiber; H 2.0/3.0 for pigtail |
Insertion Loss |
H 0.25~H 0.9: 0.1dB |
H 2.0~H 2.5: 0.5dB | |
H 2.5~H3.0: 1.0 dB | |
Signal Direction |
Left & Right LED |
Signal Intensity |
3 Levels of signal intensity |
Power Supply |
AAA 1.5V(2pcs batteries) |
Operating Temperature |
-10-+50°C |
Storage Temperature |
-20-+70°C |
Weight(g) |
210 |
Dimension (mm) |
200*30*27mm |
