Help CenterST907V7.0 Android 4.4 OS Industrial PDA Terminal With the Function of Fingerprint
Related Products
-
Android 4.4 OS Mobile Android PDA Terminal With Barcode Scanner /digital Data AcquisitionUS$ 1 - 300MOQ: 1 Unit -
ST907V7.0 Industrial Mobile Terminal Android4.4/5.1 OS/4 Core/4G/WIFI/BT/GPS/IP65US$ 1 - 300MOQ: 1 Unit
-
Shandong SENTER Industrial PDA Android 4.4/5.1 OS/4 Core/4G/WIFI/BT/GPS/IP65US$ 1 - 300MOQ: 1 Unit
-
Shandong SENTER Android 4.4 OS Mobile Terminal With 4 Inch/WIFI/BT/GPS/4GUS$ 1 - 300MOQ: 1 Unit
-
1D/2D Barcode Scanner ST935B 8 Inch 3G/4G Android Rugged Tablet PC With Handwriting Type Docking StationUS$ 350 - 360MOQ: 1 Unit
ST908 Mobile Android PDA terminal is portable and digital data acquisition mobile terminal with the functions of 1D /2D barcode scanning, UHF RFID reader, GPS positioning. NFC RFID Rearder is available with 1443A and and ISO15693 protocol ,UHF RFID 860MHZ to 960MHZ America standard and European standard
It can be widely used in the area of industrial, industrial manufacturing, logistics management, assets management and routing inspection, Motorcycle Race, Person access control system, electric power inspection domain, warehouse management, animal management, metal management and etc.
Your Best Choice of Industrial PDA, Direct Deal from Factory.
I. Features
Android 4.4 operating system
MSM 4 core CPU, 1.2GHZ; RAM: 1G; Flash: 8G(optional RAM2G,ROM16G)
IP65/Drop resistance from 1.2m
4 inch IPS LCD screen
4G, WI-FI, Bluetooth, GPS
Physical keypad on Android
1D CCD barcode scan, 1D laser barcode scan, 2D barcode scan
RFID reading function: LF/HF/UHF RFID Reader
High resolution fingerprint function
Fast built-in Printer

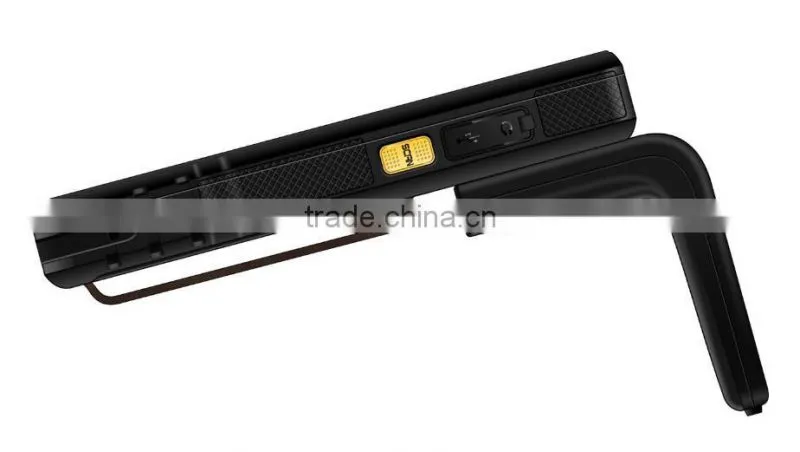

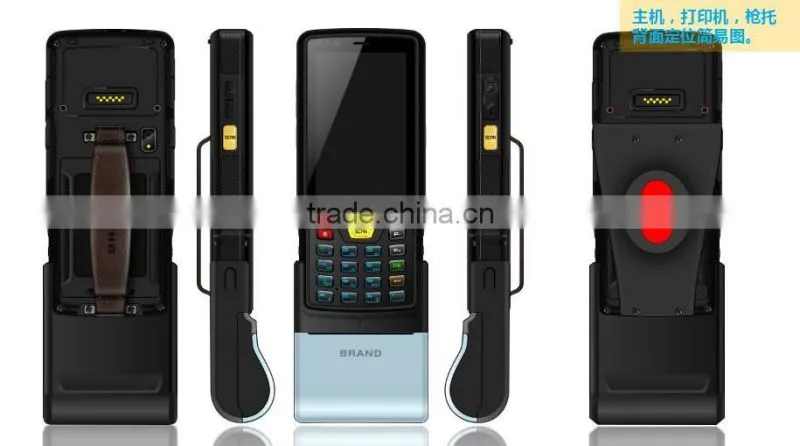

Pistol and docking station design

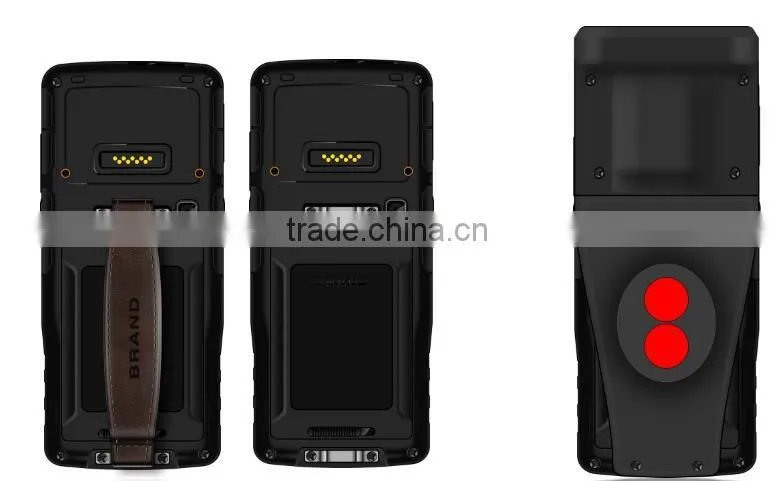

Dual-battery System
II. Applications
Logistics Medical Treatment Electrical Power
Gas Inspection
Purchasing Fair
III. Specifications
| Barcode Scanning |
1D Infrared Scanner Index: Scanning speed: 50 times/second |
|
1D Laser Scanner Index: Scanning speed: 104 times/second+12 times/second (two way scanning) Scanning distance: 2.5cm-114.3cm | |
|
2D Barcode Scanner Index: Scanning speed: 10 times/second Depth of field: 5cm-30cm |
Printer Module Specifications | |||
Printer |
1 |
Printing Method |
Thermal Printer |
2 |
Printing Speed |
about 60mm/s |
|
3 |
Paper Width |
58mm |
|
4 |
Printing Width |
48mm |
|
5 |
Print Context |
Characters,Barcode,Symbol,Number,etc |
|
6 |
Port Form |
Serial Port |
|
7 |
Printer buffer |
4k |
|
8 |
Button |
Paper feeding button |
|
9 |
English characters |
Size:12*24dots |
|
Number per line:32 | |||
10 |
Chinese characters |
Size:24*24dots |
|
Number per line:16 | |||
11 |
Power |
7.2-8.4VDC/3A |
|
Recommend Power:8VDC/3A | |||
Standard Parts | |
General Specifications | |
Operating system |
Android 4.4 embedded OS |
CPU |
1.2GHz |
RAM |
RAM 1G; FLASH 8G or RAM 2G; FLASH 16G |
Ports |
One USB 2.0 port(OTG supports U Flash Disk, Mouse, 100M ethenet), one charging mouth, one TF card(128G), one SIM card |
Protection Grade | |
Industrial Protection Grade |
IP65 |
Drop Grade |
Drop resistance from 1.2m |
Wireless Communication | |
Bluetooth |
V4.0 |
GPS |
Built-in Beidou/GPS/GLONASS; supports A-GPS; External Beidou/GPS/GLONASS; supports RTCM 2.3 differential data |
WIFI |
Support IEEE 802.11b/g/n |
4G |
FDD/WCDMA/GSM LTE_FDD B1/B3/B7 LTE_TDD B41/B40 WCDMA B1//B2/B5 GSM 900/1800/1900 |
Data Acquisition (Optional) | |
Fingerprint Identification |
Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc. Type: TCSIST Sensor type: capacitive Image size: 256*360 Resolution: 500 DPI |
|
Barcode Scanning
|
1D Infrared Scanner Index: Scanning speed: 50 times/second Scanning distance: 5.7cm-60.96cm |
|
1D Laser Scanner Index: Scanning speed: 104 times/second+12 times/second (two way scanning) Scanning distance: 2.5cm-114.3cm | |
|
2D Barcode Scanner Index: Scanning speed: 10 times/second Depth of field: 5cm-30cm | |
RFID |
LF RFID: 134KHZ LF RFID or 124KHZ LF RFID Identification distance: 0-3 cm |
|
NFC (HF) RFID: Working frequency: 13.56MHZ Profile: Support ISO/IEC 15693, ISO/IEC 14443A profile Support Cards: SR176, SRIX4K (TYPE-B), I- Code2, TI RFID label-it HF-I, EM4034, Mifare Classic ETC Identification distance: not more than 5cm | |
|
UHF RFID: Working frequency: 840-960MHz(customization of required frequency band) Support agreement: EPC C1 GEN2/ISO 18000-6C /ISO18000-6B Output power: 10dBm-30dBm Identification distance: not more than 6m | |
Printer(Optional) | |
Printing Method |
Thermal Printing |
Physical Layer Parameter | |
Display Screen |
4 inch LCD screen, 480x800 IPS screen, capacitive touch screen |
Touch screen |
Thicken tempered glass(thickness 1mm); supports 10 points touch and double-click for waking up |
Keyboard |
Physical keypad with 19 phiscal keys |
Camera |
8.0 million pixels; support auto focus and fill-flash function. |
Headset |
Supports standard headset, Bluetooth headset; support Mike and receiver function |
Vibration Function |
Vibrating prompt function |
Sensor |
Supports light sensation, gyroscope, compass, gravity |
Flashlight Function |
Used for emergency lighting |
Rechargeable Lithium Battery |
3.7V, 3800mAh |
Handle Battery |
3.7V, 5000mAh |
Standby |
The standby current is less than 10mA |
Dimension |
168mm*75mm*26mm |
Weight |
350g |
Environmental characteristics | |
Working Temperature |
-20℃ ~ +50℃ |
Storage Temperature |
-40℃ ~ +60℃ |
Humidity |
5%-95% relative humidity; no condensation |
NO. |
Items |
Picture |
1 |
ST908 Idustrial PDA |
|
2 |
Charger |
|
3 |
USB Cable |
|
4 |
User Manual |
|
5 |
Earphone (Optional) |
|
6 |

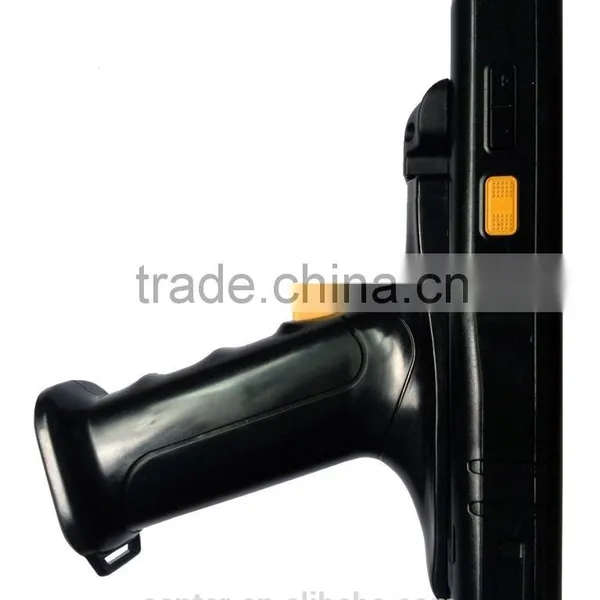

Pistol grip(optional) |
|
7 |
Docking station (Cradle)(optional) |
|
|
|
|
Payment terms: T/T 100%
Discounted Sample
Authentic Guarantee
Excellent After-Sale Service
Factory Direct Sale
DHL Fast Delivery
Dispatch Time: within 3 -5 days after payment
24 hours hot line: 86-13864445371

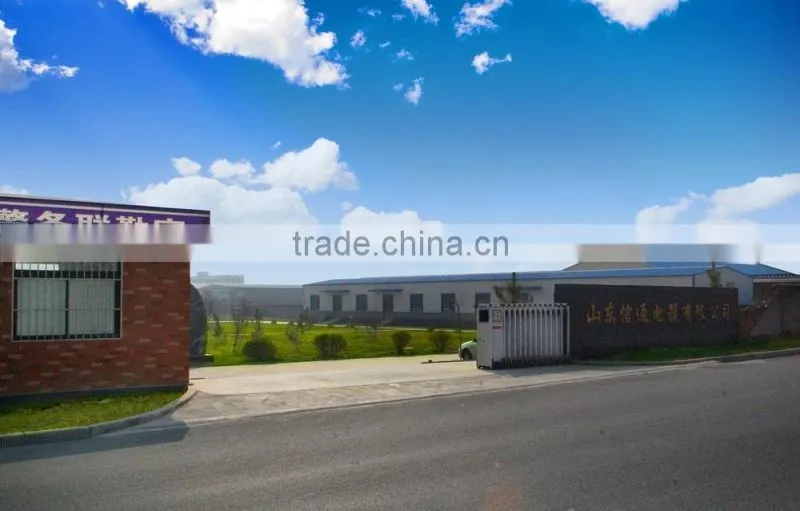

Shandong Senter Electronic Co., Ltd. (registered trademark "Senter", stock abbreviation: Senter electronic, stock code: 831427), located in state-level High & New-Tech development zone of Zibo city, is a IOT industry solutions provider mainly based on Telecommunications, power and otherdomains. It was founded in 1996, currently owns more than 200 staffs, the registered capital is 30 million RMB, and covers an area of 20,000 square meters.
The company has six major functional departments and three business divisions of Communications, Power and IOT based on different product.
Communications business division focuses on providing various types of communication maintenance instruments and series solutions for communications operators and private network users, mainly including intelligent installation and maintenance PDA terminal, optical communications test equipment, access services test equipment, installation and maintenance tools Instruments, wireless test instruments and so on. The products cover the communications installation & maintenance fields from voice to broadband, from copper cable to fiber optic etc..
IOT business division mainly provides IOT solutions for various other industrial applications scene, leading products include PDA, mobile industrial tablet PC, mobile IOT intelligent terminals, etc., mainly use the LTE communications, RFID / NFC reader, residents authentication, fingerprint identification, high-precision GPS / Beidou navigation and 1D/2D barcode scan technology. It can be widely used in transportation, public security, inspection, logistics and other various IOT applications industry.
Three-proof of ST907 Tablet PC Video: /watch?v=9PtYRxQywRc&feature=youtu.be
ST907 Tablet PC Sunlight Readable Video: /watch?v=TEgcZNLwy2k&feature=youtu.be
Fingerprinter of ST907rugged tablet PC https://youtu.be/KREVgcdFwDM
134.2KHZ RFID FDX and HDX in rugged tablet PC: https://youtu.be/dzLlTcXZtSY
https://youtu.be/yNIs2EwleuIUFH RFID 4m
https://youtu.be/khkEzY35TWU
1D/2D barcode scanner
https://youtu.be/qsjlewTXxds 125K RFID in text place read
ST308 PDA Video links:
/watch?v=bpU1K9XH7Uw&feature=youtu.be
/watch?v=mgBRFywMosg&feature=youtu.be
/watch?v=5snc8ookZf0&feature=youtu.be
/watch?v=2Sx6x1NHptk&feature=youtu.be
