Home > Instruments & Meters > Test Instrument > Test Machine > ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester

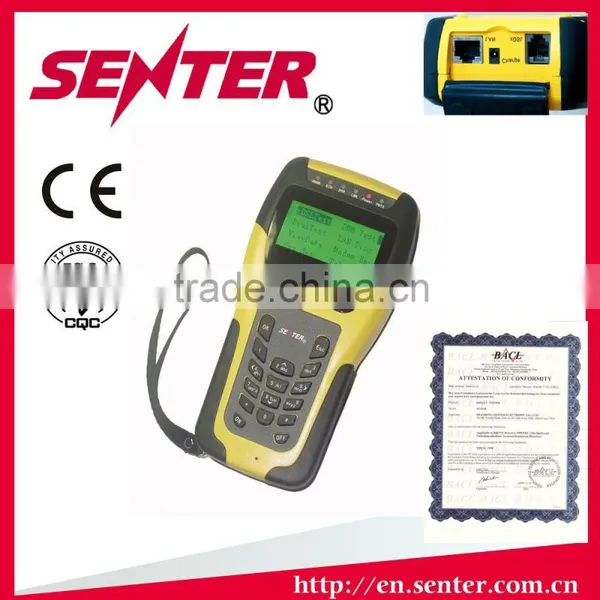

ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester

Name: ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester
Brand: SENTER
SKU: 126629247
Availability: InStock

ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester thumbnail-1

ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester thumbnail-2

ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester photo-1

ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester photo-2

US$ 200 - 400 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

SENTER

Model Number:

ST332B

Contact Supplier Request Quote Chat Now

Shandong Senter Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name SENTER

Model Number ST332B

Power Electronic

Usage Auto Testing Machine

ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester

Product Description

Functions

1. DSL Physical layer test
2. Modem Emulation (Replace the user Modem completely)
3. PPPoE/PPPoA dial
4. DMM Test, can test the line distance
5. Ping Function (WAN & LAN)
6. Data memory capacity: 50 records
7. Data upload to computer by RS232 core and software management
8. Print test record through PC via management software
9. Setup system parameter: backlight time, shut off automatically time without operation,
press tone, revise PPPoE/PPPoA dial attribute, user name and password, restore factory value and so on.
10. Check dangerous voltage
11. Four grades service judge(Excellent, Good ,Ok,Poor)

Specifications

ADSL2+
Standards	ITU G.992.1(G.dmt), ITU G.992.2(G.lite), ITU G.994.1(G.hs), ANSI T1.413 issue #2, ITU G.992.5(ADSL2+)Annex L
Up channel rate	0~1.2Mbps
Down channel rate	0~24Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	0~31.5dBm
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available
ADSL
Standards	ITU G.992.1 (G.dmt) ITU G.992.2(G.lite) ITU G.994.1(G.hs) ANSI T1.413 Issue # 2
Up channel rate	0~1Mbps
Down channel rate	0~8Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	0~31.5dBm
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available
DMM Test
DC Voltage	0 to 400 V
AC Voltage	0 to 290 V
Capacitance	0 to 1000nF
Loop Resistance	0 to 20KΩ
Insulation Resistance	0 to 50MΩ
General Specification
Power supply	Internal Rechargeable 2800mAH Li-ion battery
Battery Duration	4 to 5 hours
Working temperature	10-50 oC
Working moisture	5%-90%
Dimensions	180mm×93mm×48mm
Weight	<0.5kg

Packaging & Shipping

Packing in carton , pls check below photo for packing list and photos.

Certifications

ST332B ADSL2+ Tester ADSL Tester ADSL2 Tester certfications

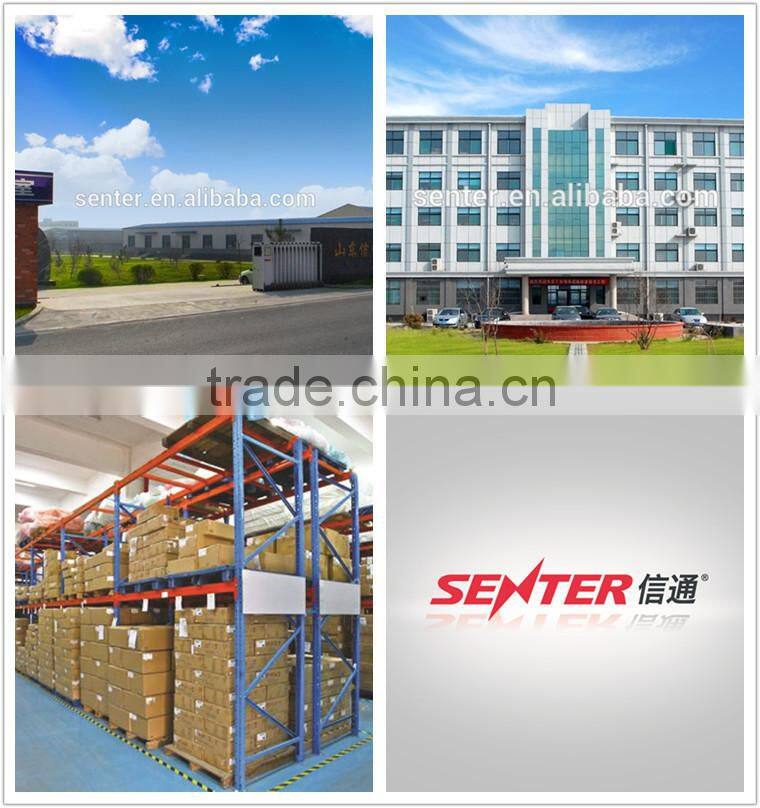

Company Information

Shandong Senter Electronic Co., Ltd., located in state-level New & Hi-Tech development zone of Zibo city, is a high technology enterprise applying itself to provide communication test instruments and comprehensive network monitoring solutions. It was founded in1996, there are 160 staffs now, 20 million RMB registered capital, Senter covers an area of 20,000 square meters.

Senter have passed the ISO9001 international quality management system certification, now is the “High Technology Enterprise”, “Software Enterprise ”, “Center for Post-doctoral studies ”, “Zibo Communication Maintenance Instruments Engineering Technology Research Center ” and “The national Intellectual Property Pilot Units”, and has the honor to get “Shandong Provincial Outstanding Private Science and Technology Enterprise”, “China's Patent Shandong Star Enterprise”, Senter have six functional departments and two business divisions, and have New technology R&D center in Shenzhen.

Test instruments division, professionally specialize in providing all kinds of communication maintenance test instruments and serial solutions to each operators and private network users, main products include optical fiber test instruments, broadband network access test instruments, intelligent maintenance PDA terminal, and communication cable test instruments, products cover all aspects in communication maintenance field from voice, narrow band to broad band, form cables to optical fiber.
