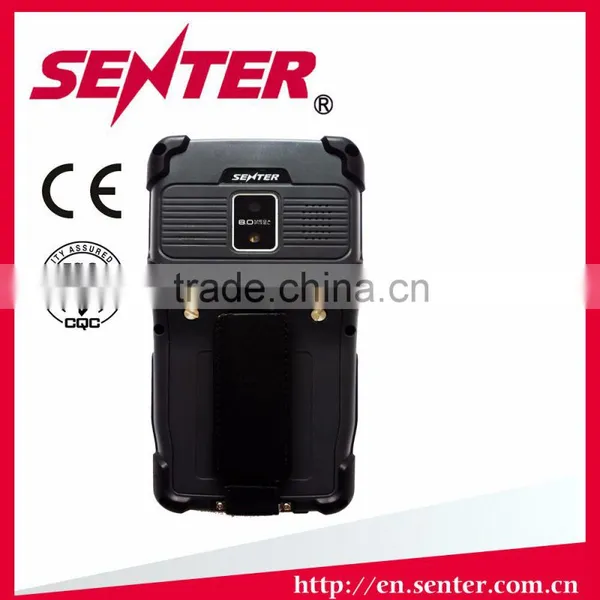

SENTER ST327 hot android industrial pda barcode laser scanner pda with android os

SENTER ST327 hot android industrial pda barcode laser scanner pda with android os

I. Summary

The PDA for industrial application is gradually becoming the mainstay for the development of the market.

Aiming at the management and test need during the telecommunication operation and maintenance, ST327 a handheld intelligent PDA is especially designed for the telecommunication operation and maintenance domain. It adopts mainstream Android operating system, which combine industrial smart phone, telecom test functions like ADSL/VDSL tester, optical power meter, VFL and Barcode scan, cable tracing, ONU,IPTV test, DMM , Check line sequence, Landline telephoneetc.

System Platform: Mainstream Android operating system, Telecom operators can install any application program or software.

Powerful functions: 4G Android OS Smart Phone + Barcode Scan+ xDSL + Optical Power Meter + VFL+ Cable Tracing+ Landline Telephone+ Check line sequence+ ONU+ IPTV Testand so on.

Reliable and durable: Industrial grade design, strong endurance, economical and durable.

Outstanding Value: It can improve the installation and maintenance efficiency and control efforts; effectively integrate and explore the human resource value; improve the image of telecommunication installation and maintenance as well as the subscribers’ perception.

Value added service: It can realize the assets management by bar code scanning and at the meantime realizes the dual management of people and goods.

II. Features

1. 1.            Fast processor

CPU isMSM8916 and the system adoptsAndroid 4.4 operation system.

1. 1.            Strong protection for bad environment

It can apply to the bad environment, which can resist multiple dropping impact from 1.2m high; good water-proof and dust-proof effect; durable and long life span.

1. 2.            Visible 5 inch LCD in the sunlight

It is 5 inch vertical screen LCD, 720×1280 high resolutions; withpressure sensitive touch screen and semi permeable TFT IPS LCD readable display. Its particular non glare and reflective technology make the work in the wild sunlight more easy and convenient.

1. 3.            The storage capacity is big and extensible

TF card supports 32G cards, which can basically satisfy regular information and data storage.

It adopts portable change design. There is no need to open the tester and you can remove the battery with the knob. The battery capacity is as high as 8200 mAh.

1. 4.            Advanced battery installation design and strong endurance

Due to the lithium battery capacity of 8200 mAh and low-power design, the duration will be more than 3 days under routine operation.

6, Multi-functional module integration

--The built-in fixed network test module can do ADSL/VDSL test, LAN test and Modem emulation.

--8 million pixels postposition camera makes the image data collection convenient.

--Support Telecom TDD-LTE B41;

--Support Telecom FDD-LTE B1/B3/B7; CDMA 800MHz;GSM B2/B3/B8;

--Support Unicom TDD-LTE B40/B41;

--Support Unicom FDD-LTE B1/B3/B7; WCDAM B1/B2/B5;GSM B2/B3/B8;

--Support 1D CCD bar code scan

7, Reliable process design

It adopts advanced manufacturing process which is reliable and convenient to assemble.

III. Main functions

Smart Phone Function

--Dialing call and answer

--Message

--Video and Camera

--Call Records

--Alarm Clock

--Calendar

--Setting

--Address Book

--Digital Album

--File Management

--Calculator

--Notepad

--Media Player

--Recorder

--Flashlight

Test Function

xDSL Test

-- Physical Layer Info.

--Net Card

--PPPoE

--FTP Client

--Network Layer Test

--Fixative IP

--Modem Emulation

--PING

Optical Power Test

VFL Test

Bar Code Scan

Cable Tracing

Cable Line Sequence

Landline Telephone

IPTV Test

ONU

ST327 Multi-service Access Test PDA
