Technical Design WDB 300 t/h soil stabilizer mixing plant For Construction

FOB Price

US$ 65,000 - 75,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	SHENGJIE
Model Number	WDB 300	Power(W)	110kw
Certification	ISO9001:2008	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

WDB300 soil stabilizer mixing plant

Technical Parameters

Model	WDB300
Mixer model	Twin horizontal constant stirring
Rated productivity	300t/h
Aggregate volume	12m3
Powder volume	100t,φ2900mm
Storage bin volume	9m3
Max. aggregate diameter	60mm
Aggregate delivery capacity	400t/h
Motor type(power)	Y280S-6(45kw)
Mixer productivity	Ash250,gravel350
Effective mixing range	1160×2150(mm)
Max. outline dimension	3800×2200(mm)
Aggregate metering	Accuracy ±2%
Aggregate metering	Range40-200t/h
powder metering	Accuracy ±1%
powder metering	Range 5-20t/h
Total power	110kw
*Floor Area(LW)**	42.7×14(m)
Discharging height	3.8 m

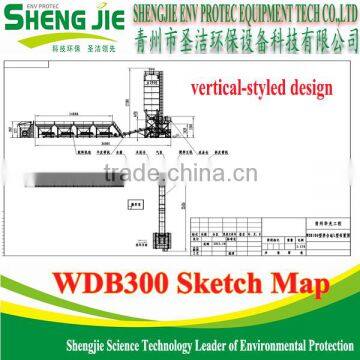

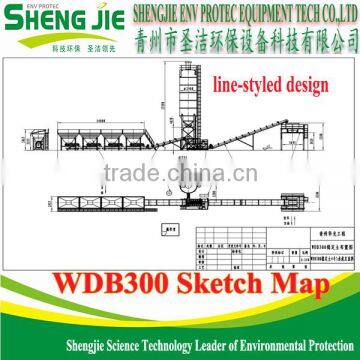

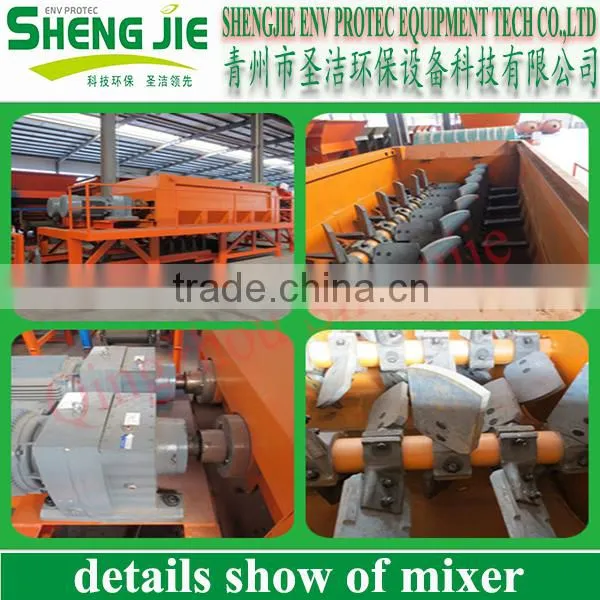

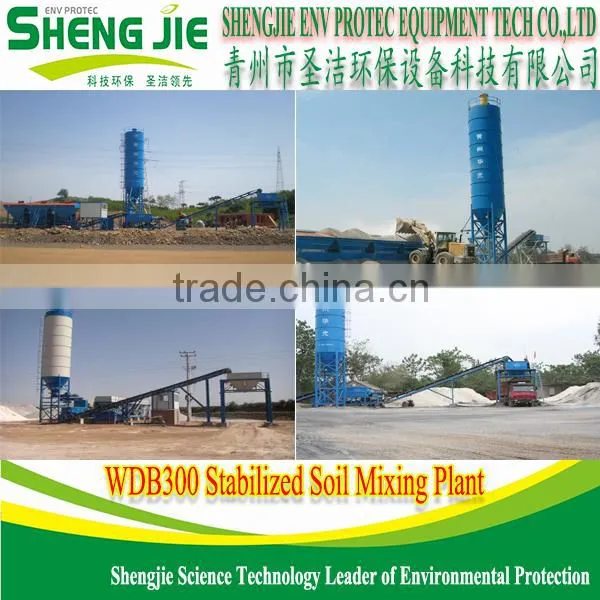

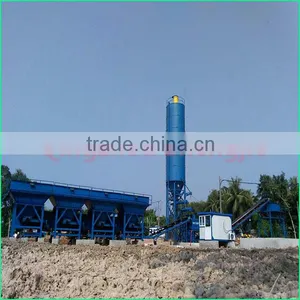

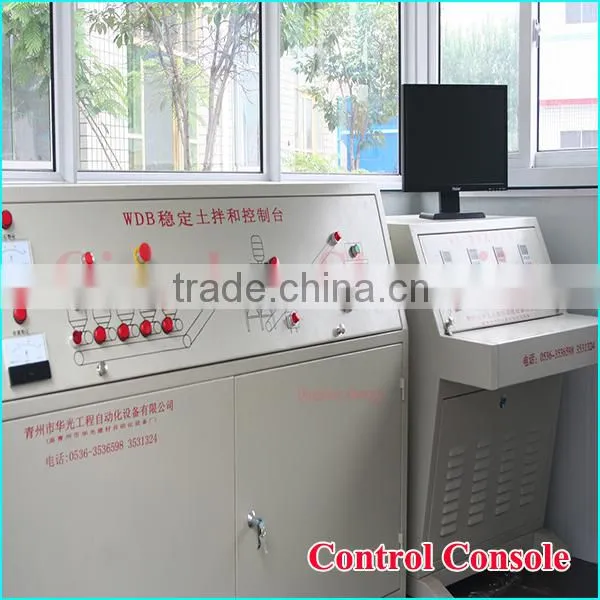

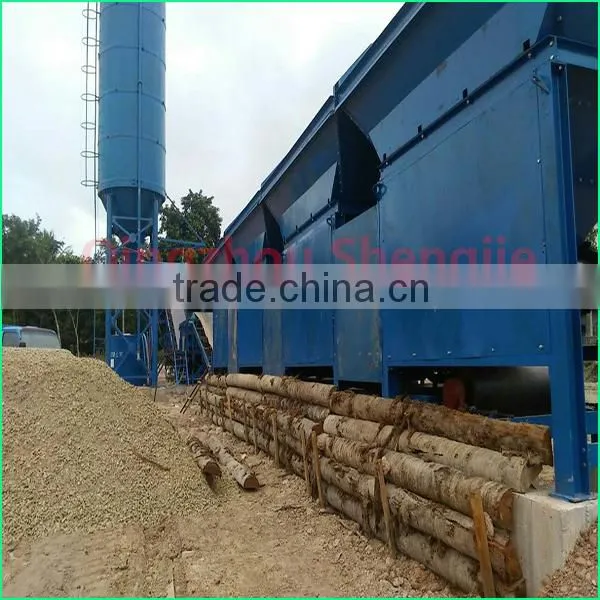

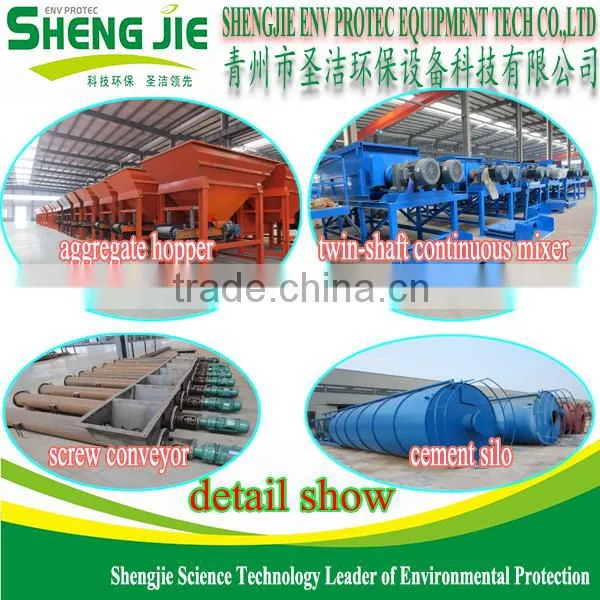

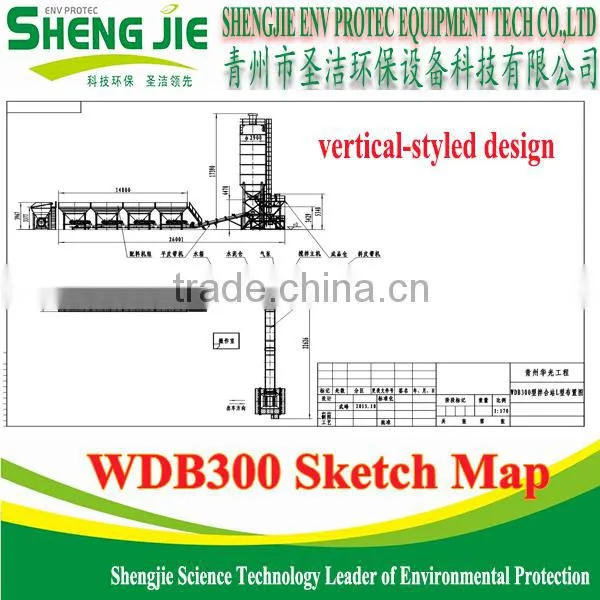

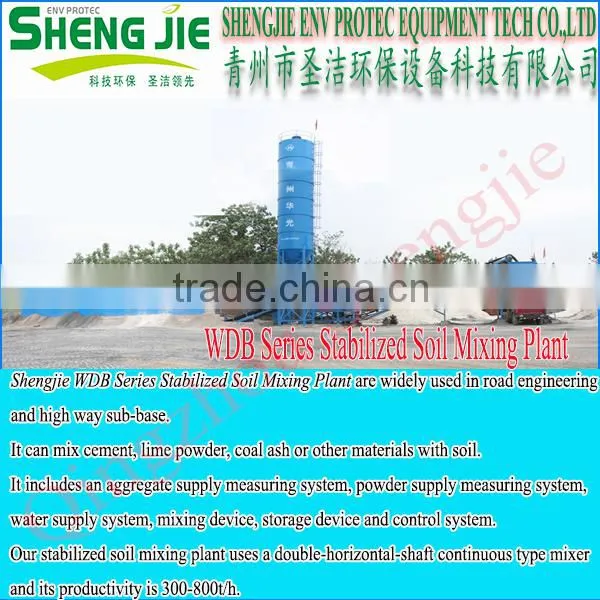

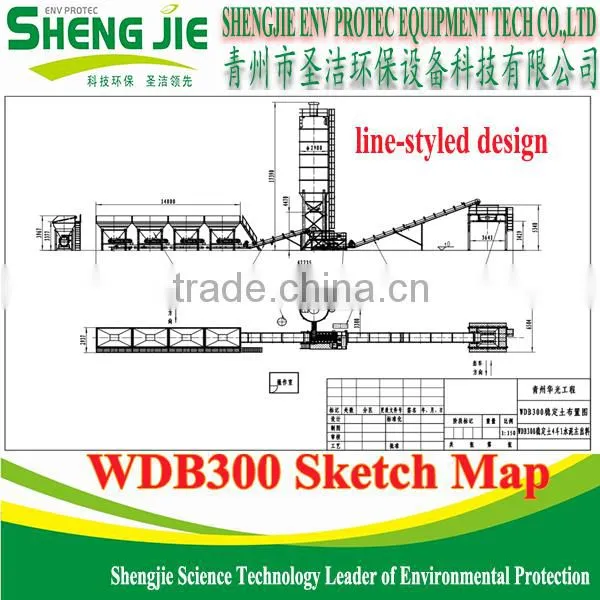

Detailed Images
