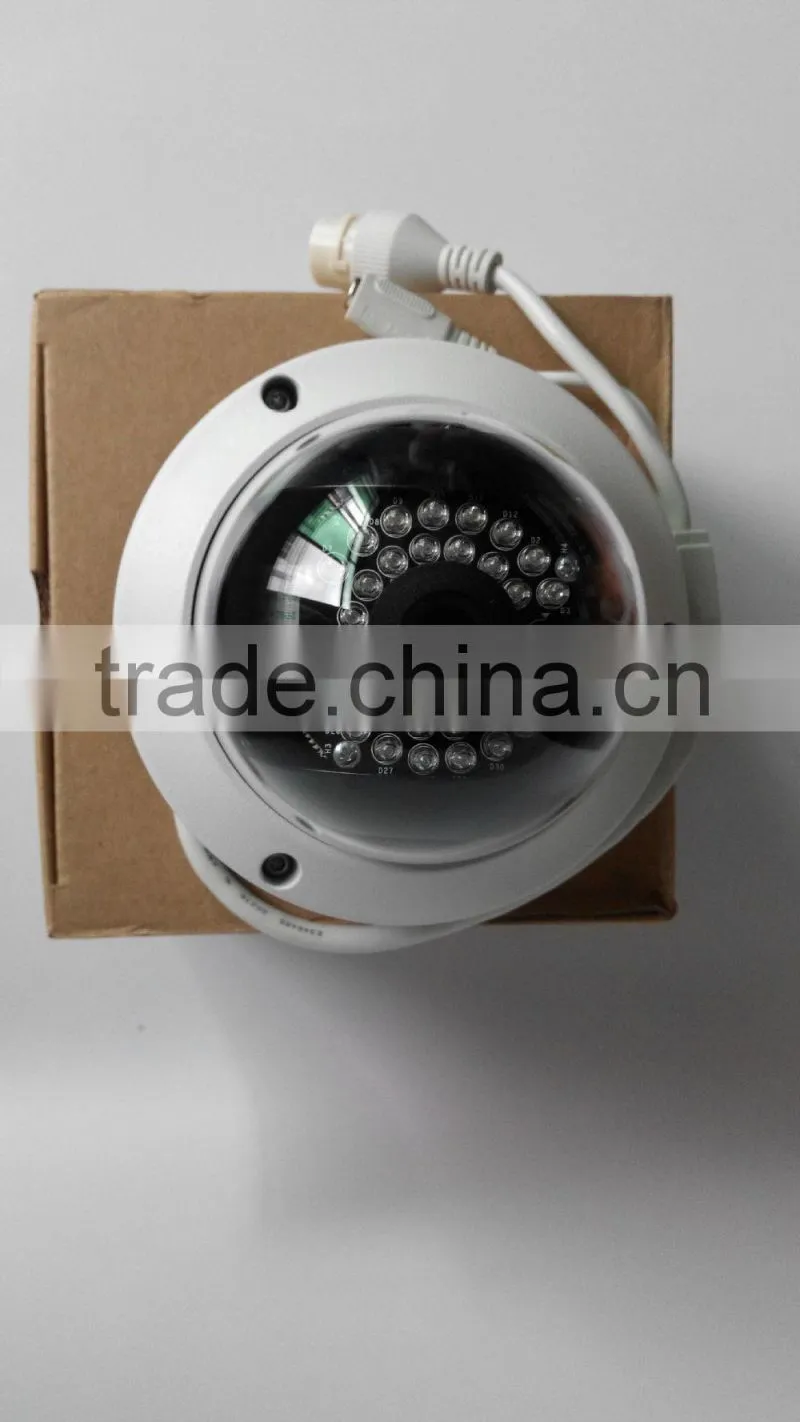

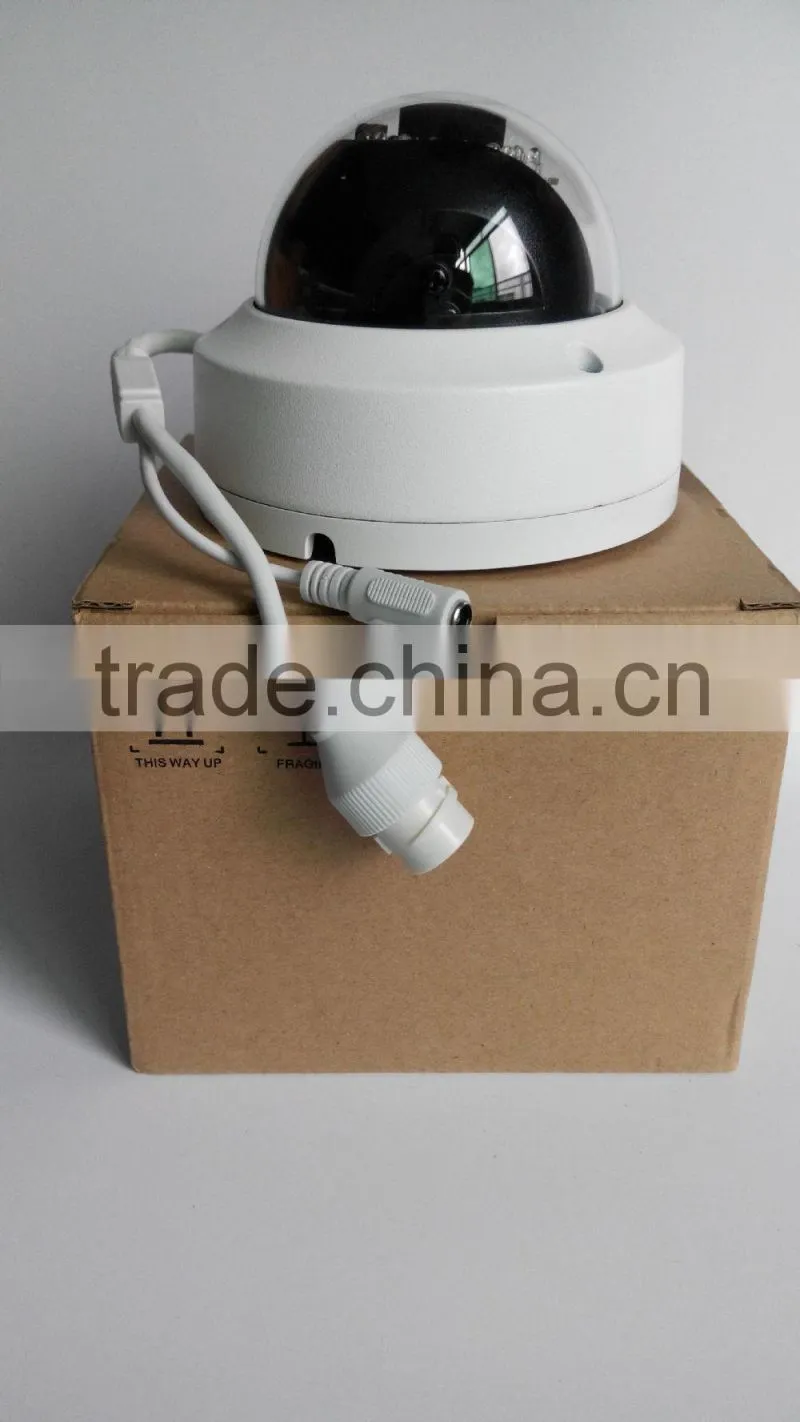

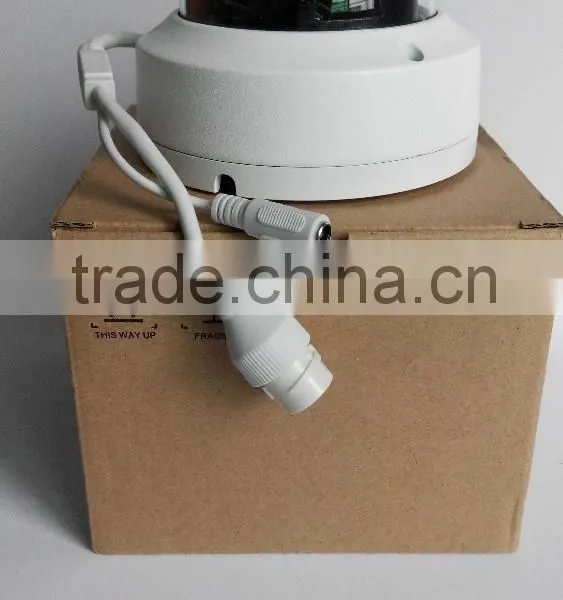

Help Center2015 New Original DS-2CD3132-I Network Mini Dome IP Camera Outdoor 30M IR 3MP 1080P Security Camera HD POE
Related Products
-
2015 Original Camera Network Mini Dome IP Camera Outdoor 30M IR 3MP 1080P Security Camera HD POEUS$ 70 - 79MOQ: 1 Piece -
Dahua PTZ IPC-HDBW4300R-Z VF Motorized Lens 3mp Network POE IR Dome Camera IPUS$ 85 - 85MOQ: 20 Pieces
-
Original Dahua 4MP IPC-HDBW4421R-AS IP Network Camera Support POE & Micro SD Storage Audio AlarmUS$ 78 - 78MOQ: 10 Pieces
-
Low Cost DS-2CD3320-I 2MP IR Network Dome Security CCTV POE HD ip CameraUS$ 55 - 57MOQ: 1 Piece
-
Low Cose DS-2CD3310-I 1.3MP IR Network Dome Security CCTV POE HD Camera H.265 IP CameraUS$ 55 - 57MOQ: 1 Piece
2015 New camera Multi-language 3MP IP camera Outdoor Network Mini Dome Camera 30M IR Digital 1080P(Full-HD) waterproof w/POE CCTV Camera Security home
Welcome to my store, the lower price but the best quality of goods in our store.good
service to you .if you have any questions, please feel free to contact me.
Please remark or leave message about the lens when place your order: default 4mm F2.0, horizontal viewing angle : 75.8 degree (2.8mm optional)
Scenario:
For roads, warehouses, underground parking , bars, pipes, parks and other low light or no light environments and require high quality of the place

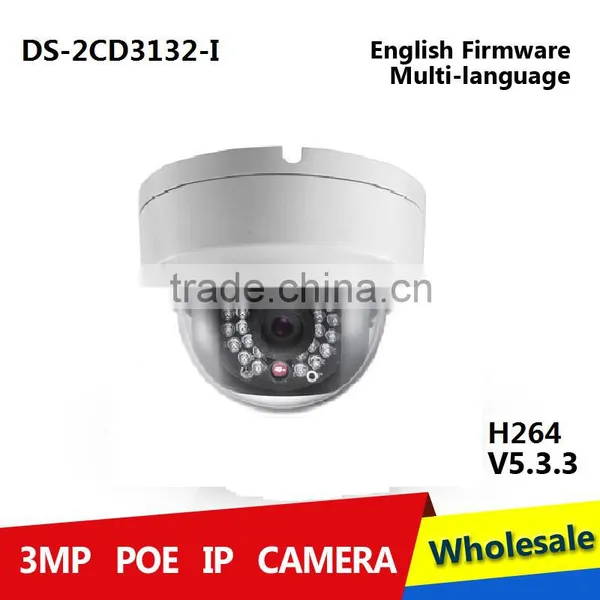

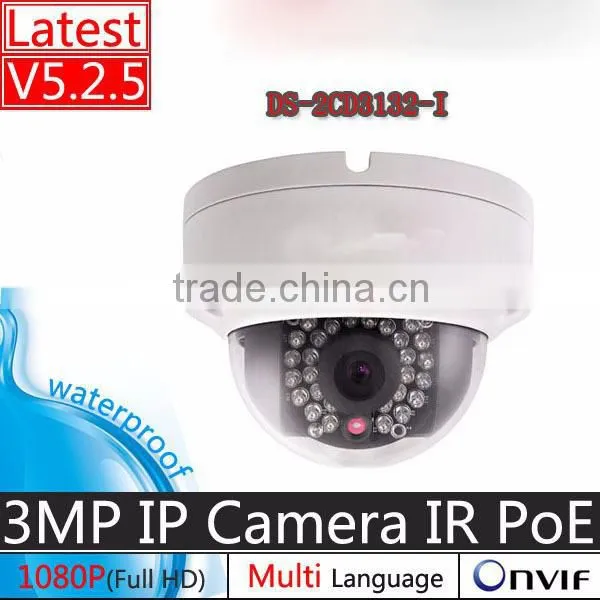

DS-2CD3132-I
3MP Network Mini Dome Camera
| Image Sensor: | 1/3" Progressive Scan CMOS |
| Min. Illumination: | 0.07Lux /F1.2, AGC ON, 0 lux with IR |
| Shutter time: | 1/3s ~ 1/100,100s |
| Lens: | 4mm / F2.0 (2.8mm optional) 2048 × 1536: Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(mm) 1920 × 1080: Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(mm) |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0 ~ 360° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | Digital WDR |
| Digital noise reduction: | 3D DNR |
Compression Standard
| Video Compression: | H.264/M-JPEG |
| Bit Rate: | 32 Kbps ~ 16 Mbps |
| Dual Stream: | Yes |
| Max. Image Resolution: | 2048×1536 |
| Frame Rate: | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) |
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Yes, up to 3 configurable areas |
Network
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | User authentication, watermark |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
Interface
| Communication Interface: | 1 RJ45 10M/100M ethernet interface |
| IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | 20/40MHz Support |
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power: | 11b: 17±1.5dBm / 11Mbps 11g: 14±1.5dBm / 54Mbps 11n: 12.5±1.5dBm |
| Receive Sensitivity: | 11b: -90dBm / 11Mbps (Typical) 11g: -75dBm / 54Mpbs (Typical) 11n: -74dBm (Typical) |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Outdoor: 200m,Indoor: 50m(depend on environment) |
General
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 5 W (Max. 7 W with IR cut filter on) |
| Impact Protection: | IEC60068-2-75Eh, 50J; EN50102, up to IK10 |
| Weather Proof: | IP66 |
| IR Range: | Up to 30m |
| Dimensions: | Φ111 × 82 (4.4” × 3.2”) |
| Weight: | 500g (1.1 lbs) |
Key Features:
High resolution up to 3M (2048*1536) 15fps, can output Full HD 1080p real-time image
The use of advanced video compression technology , high compression ratio , and flexible processing
Progressive scan CMOS, capture moving images without jagged
Efficient infrared light , long life, irradiation distance of up to 10-30 m
ICR IR filter auto switch for true day and night surveillance
support the PoE function(optional)
Support Desktop installation and ceiling installation
Support dual-stream , Support mobile phone monitoring
Meets IP66-rated dust and waterproof design , high reliability
Support for backlight compensation, digital wide dynamic , automatic electronic shutter function , adapt to different control environment
Functional: heartbeat , mirroring , watermarks , etc.
PC-Zviewer: Access from Anywhere,anytime.Function Overview:
‹ Advanced Windows PC Software
‹ Watch over Multiple ip cameras at the same time
Video Recording & Snapshots
‹ Record to your PC
‹ Record to your network recorder
True Night Vision Technology
‹ With real night vision technology,high quality LEDs allow each camera to see over
even 0 Lux with IR
‹ You can see in incredibly low lighting levels down to 0.05Lux /(F1.2,AGC ON),0 Lux
with IR
Motion Detection & Instant Email Alert
This system is designed to send an email alert, complete with photo of the activity, if
any motion is detected, or if any camera experiences video loss. The motion detection
options allow you to record only when motion is detected to save hard drive space
without missing important events.
2 ways to monitor your Baby and baby-sitter on Home when you're busy in Office.
Auto White Blance
Back Light Compensation
Night vision mode--High effecient 24h all day monitoring,make your home safer!
DS-2CD3132-I use 1/3"Progressive Scan CMOS,Even if in the dark night or in 0Lux condition, it also can provide clear video and clear image automatically, achieve 24h all day monitoring, not missing any motion.
