HongHui A1 GSM SMS Alarm Wireless Home Burglar Security System With remote controller door magnetic sensor PIR

Introductions

Functions & features:

1. GSM quadband 850/900/1800/1900MHz
2. SMS and phone call; backup power supply
3. Memory system avoids reset up when main power is off. Backup power supply can use 24 hours
4. 8 wireless zones and 2 wired zones could connect any detector such as PIR detector, door sensor, smoke detector, gas detector and more, and zone name is editable
5. Can arm or disarm by phone or remote controller
6. Supports two-way voice communication
7. Remote monitor the on-site voices
8. External high DB speaker can daunt illegal invasion
9. Supports 6 intelligent remote control switches, through intelligent remote control switch, the system can turn on the lamp, TV or other electrical devices automatically when any sensor triggered and the indoor lighting is dim (optional)
10. 5 alarm phone numbers could be set up to receive alarm, at the same time, control center and police station could be connected
11. 3 groups of SMS could be set up
12. SMS indicate exact defense zone which is invaded when alarm
13. Revised character of defense
14. Control 6 household electrical appliances
15. Emergency buttons
16. Armed delay time of going out the home and alarm delay time of getting back the home are adjustable
17. 1 relay output, which can remote control other electrical appliances
18. Automatically send SMS alert to pre-set cell phone when it triggered
19. Automatically dial pre-set alarm phone numbers when it triggered
20. Supports SMS commands to set the system
21. Based on the GSM communication network
22. Supports Android APP

Standard package list:

Optional parts: intelligent remote control switch and our other sensors and detectors

Power supply		Adapter input AC110-240V/50-60Hz, output DC 12V/1000mA
Standby current		less than 80mA
Operating current		less than 1000mA
Linkage output relay power		240V AC/DC 1A
Work temperature		-20-+55°C
Relative humidity		≤80%, No condensation
Work frequency		GSM Quadband 850/900/1800/1900MHz
Communication protocol		GSM Phase 2/2+ (include data service)
Transmitting power		Class4(2W)/EGSM900,Class1 (1W)/GSM1800
Receiving code		ASK
Transmitting frequency		433MHz or 315MHz
Wired zones		2 Zones
Wireless zones		8 Zones
Wireless transmission distance		100m (Open area)
Battery		Rechargeable Li-polymer Battery 7.2V/1000mAh
Standby time approx		24 hours (depending on the network condition)
Unit dimension		191mm x 125mm x 25mm (L.W.H)
Package box size		295mm x 225mm x 75mm (L.W.H)
Net weight		1.2kg
Gross weight		1.5kg

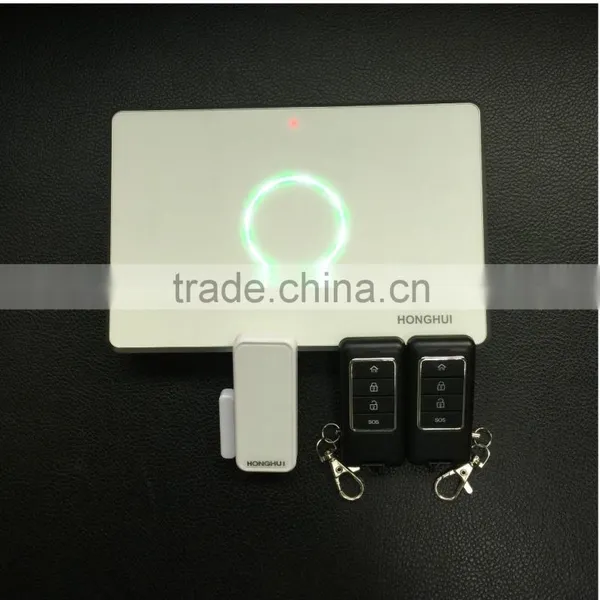

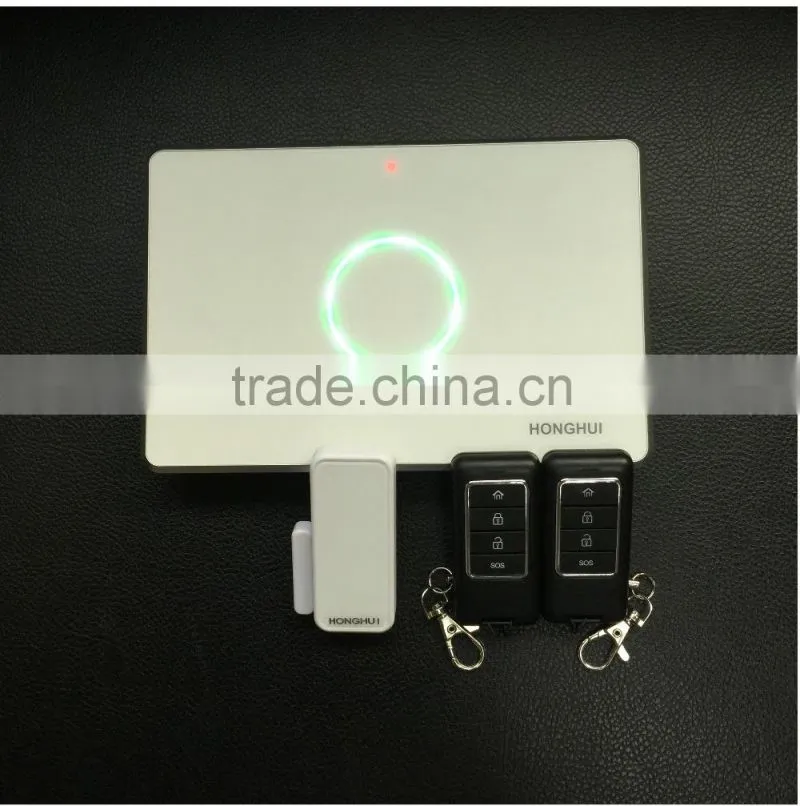

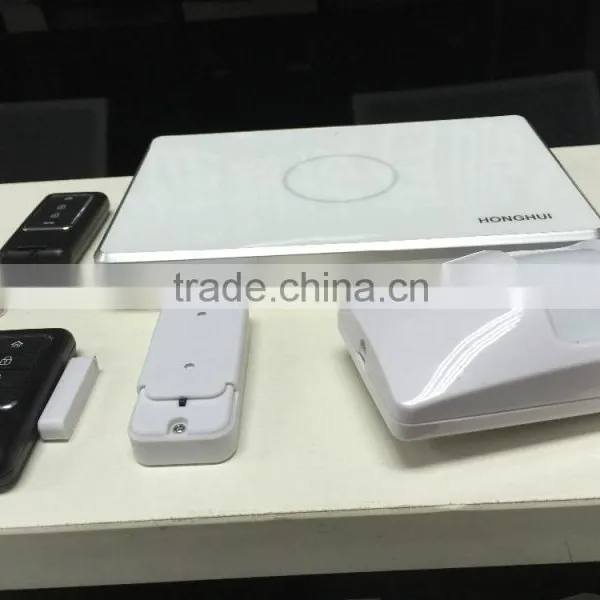

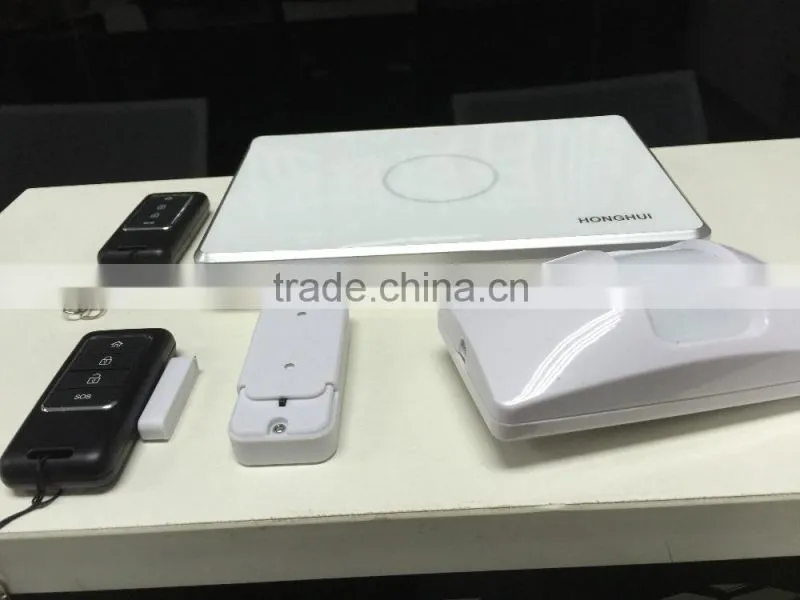

Standard Package List of A1 GSM SMS Alarm Security System

1 x Control Panel

2 x Wireless Keychain Remote Controller

1 x Wireless Door Magnetic Sensor

1 x P.I.R. Motion Detector

1 x Adapter

1 x User Manual

Optional Parts: Intelligent Remote Control Switch and our other Sensors and Detectors
