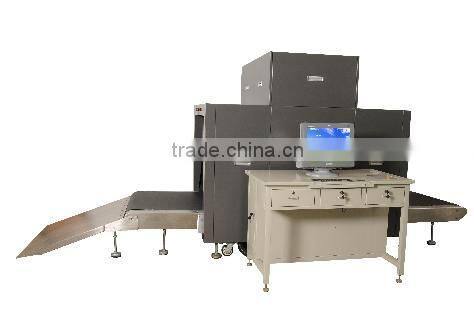

Safety Security airport security baggage scanners / luggage x ray machine
X-ray baggage inspection System for Airport Cargo screening SF-10080
General Specification of x-ray scanner equipment:
Tunnel Size: 1000(W)*800(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Dose per Inspection<1.7μGy/h
Resolution< 0.101mm Copper Wire
Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm
Penetrate resolution: Dia 0.511mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)
X-ray Generator of x-ray scanner equipment
Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System of x-ray scanner equipment
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy : switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data of x-ray scanner equipment
Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 1.0KW(working)
Noise: <58db
Feature :
- Alarm by sounds & light::alarm by sounds and light when conform to condition.
- Network interface:could be connect local area network and support multi-terminal check baggage at same times
- Safety ray:transmit ray under automatic control, avoids the miss.
- Turn off by a key control:turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
- Eagle-eye:could be expediently observing enlargement area.
- Estimate malfunction by self:automatic estimate malfunction and prompt message, helpful for the maintenance.
-
Tunnel size: 1000(w)*800(h)mm
Warranty:
(1)All products have been Strictly Quality Checked before packing.
(2)All Products have been well packed before shipping
(3)One Year warranty is proviced for all models. we will bear maintenance cost during warranty period.
(4)OEM Service ofference
Design service offered
Buyer label offered
Delivery:
(1)Sample and Min Order will be delivery within 2-3 working days after receipt of payment.
(2)For order over 500 pcs of sustomized order, please contact our sales to make sure the current inventory.
Shenzhen Ougood Technology Limited
We are a professional security products manufacturer that speciazed in metal detectors for
7 years,Located in Shenzhen,China.We organized the world-rate R&D dept. Certified by CE
and ISO 9001:2008 quality Management.Can excellent security products in lower costs for
Humans Life over the world.
Our main products line :
Handheld metal detectors
ground metal detector
Walk Through metal detector
Industiral auto conveying metal detector
Under car inspection equipment
OEM & ODM Design service.
Inform us your need, we can service you at once.
Why Choose ShenZhen Ougood Technology Limited metal detector
We use the true digital micro processing technology instead old analog type.
all our items is coming with certification and we have special team work for after sales services
We ready for sign contract with you in case you need it, as honest dearly we never crook our customers
How to place order?
It is very easy and we will communicate with you very patiently no matter you are professional in
metal detector industry or zero knowledge of it.
Payment information
We can accept L/C, T/T, Western Union, and MoneyGram
Delivery time
Delivery day will be 3-5 working days
